Popis produktu:

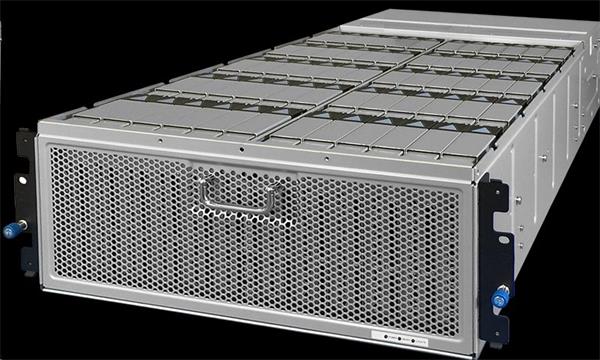

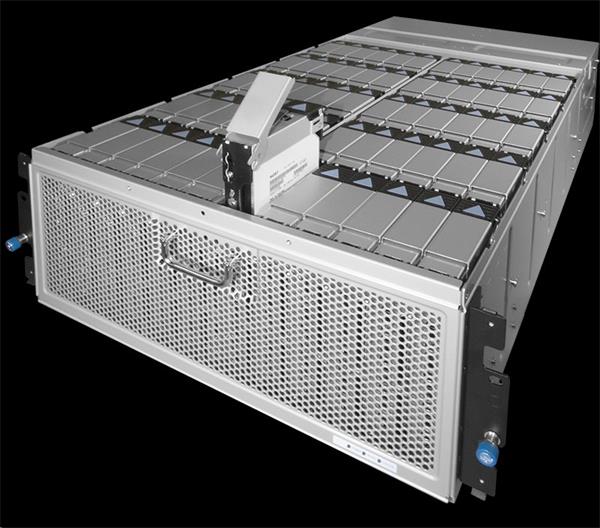

Ultrastar Data102 Hybrid Storage Platform

Max. Drives

102 x 3.5” drive bays
Up to 24 can be SAS or SATA SSD

Drive Interface

12 Gb/s SAS
6 Gb/s SATA

Available Drive Capacities

HDD up to 14TB
SSD up to 15.36TB

Host Interface

Dual redundant I/O Modules (IOM)
6 Mini-SAS HD ports per IOM

Management

SCSI Enclosure Services
Redfish (out of band, via RJ45)

Physical Dimensions

Height: 175mm (6.89”)
Width: 447mm (17.61”)
Depth: 1047mm (41.25”)
Depth in Rack: Max of 1,197mm (47.13”) w/ dual CMA—includes 2 SAS cables

Weight

Product without drives: 31.8kg (70lbs)
Product with 102 HDDs: 118.8kg (262lbs)

Power

Dual 1600W, 80+ Platinum
200-240V AC input, auto ranging, 50-60Hz

Cooling

4 main enclosure fans, front-to-rear system cooling with zero-loss backflow prevention
1 I/O module fan
Dual PSUs with built-in fans

LED Indicators

Front/Rear: Power, ID, Fault
Drive: Activity, Fault

Serviceability

Cable-free hot-swappable IOM, power supply, fans and drives

Environmental

Operating Temperature: 5 to 40°C
Non-op Temperature: -40 to 60°C
Humidity: 5 to 85% relative humidity
Operating Altitude: 40°C @ 3,000ft
Sound Power: < 7.2Bels @ 23±2°C
