Viewsonic LB-WIFI-001

LB-WIFI-001
Dual Band Wireless Module for ViewBoard® IFP50 series

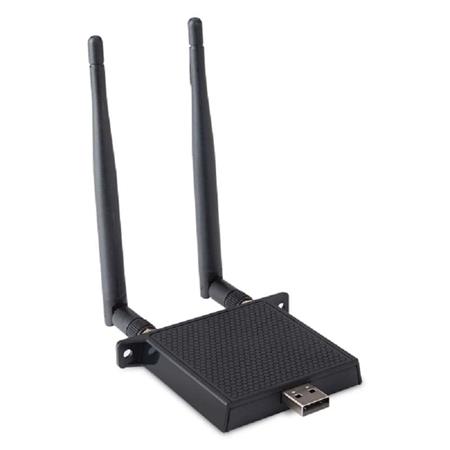

The ViewSonic® LB-WIFI-001 wireless module is an integrated solution that delivers fast wireless internet connection for ViewSonic ViewBoard® interactive displays (IFP50 series). It supports dual frequency 2.4GHz and 5.0GHz bandwidth, along with the newest 802.11AC standard to provide up to 433Mbps transmission. The LB-WIFI-001 also offers fast Bluetooth 4.0 connection for one-to-one file and data transferring.

SPECIFICATIONS
WIFI
802.11a/b/g/n

OPERATING FREQUENCY
2.4GHz & 5.0GHz

OPERATING CONDITIONS
TEMPERATURE
32-104o F (0 - 40o C)

HUMIDITY (NON-CONDENSING)
10-90%

DIMENSIONS (IMPERIAL) (WXHXD)
PACKAGING (IN.)
3.5 x 0.6 x 6.2

PHYSICAL (IN.)
3.0 x 0.4 x 3.9

DIMENSIONS (METRIC) (WXHXD)
PACKAGING (MM)
3.54 x 0.63 x 6.18

PHYSICAL (MM)
3.03 x 0.43 x 3.89

WEIGHT (IMPERIAL)
NET (LBS)
0.07

GROSS (LBS)
0.18

GENERAL
WARRANTY
One-year limited warranty

REGULATIONS
FCC, FCC ID, IC ID, CE, RED, RCM

PACKAGE CONTENTS
LB-WIFI-001 module x 1, antenna x 2, QSG x 1
