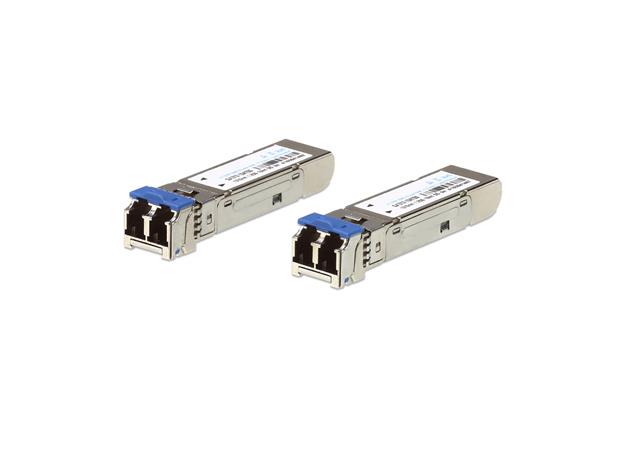

Aten 1.25G Multi-Mode/550M Fiber SFP Module 2A-136G

The 2A-136G 1.25G Multi-Mode/550M Fiber SFP Module provides 1 GbE connectivity up to 550 meters. The transceiver can be installed in both transmitters and receivers. As a hotpluggable module with a standard duplex connector for fiber communications, the 2A-136G works with multi-mode-fiber (MMF) connections and operates at a nominal wavelength of 850 nm which makes it a cost-effective and high performance transceiver.

Extend your network connectivity up to 550 meters
Differential Inputs and Outputs
Small Form Factor Pluggable MSA (SFP Multi-Source Agreements standards) Compliant
Compliant with SFF-8472 MSA Digital Diagnostic Monitor (DDM), Internal Calibration
Class 1 Laser International Safety Standard IEC 825 Compliant. Complies with EN60825-1 and FDA 21 CFR 1040.10 and 1040.11
Operation Temperature from 0° C to 70° C
RoHS Compliant

Fiber Optics
Data Rate 1.25 Gbps
Operating Distance 550 m
Fiber Type Multi Mode
DDM Yes
Environmental
Operating Temperature 0-70°C
Storage Temperature -40-85°C
Physical Properties
Weight 0.02 kg ( 0.04 lb )
Dimensions (L x W x H) 5.59 x 1.46 x 1.30 cm
(2.2 x 0.57 x 0.51 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
