Popis produktu:

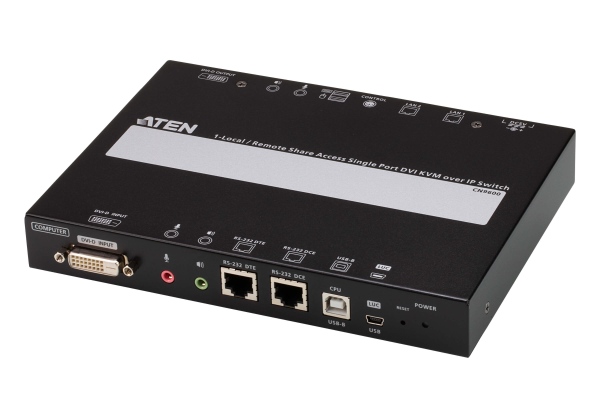

The CN9600 DVI KVM over IP Switch is a cost-efficient over-IP device, which allows remote access of digital video, audio and virtual media via remote control of a PC or workstation. The CN9600 enables over-IP capability by connecting compatible ATEN DVI KVM switch and/or LCD console, such as the CS1768 (8-Port USB DVI/Audio KVM Switch) or the CL3800 (DVI LCD Console).

ENQUIRE A TEST NOW!
The CN9600 expands on previous models by providing a more compact, slimmer space-saving design for utility optimization, and a FPGA graphics processor that offers better image and video quality to enhance user experience, while also meeting the RS-232 DTE/DCE standards for serial control.

For user-friendly operation, a mini USB port on the front panel is designed as a Laptop USB Console (LUC) port. Users just simply connect a laptop to the LUC port, and can access any computer connected to the switch for easy on-site management. That means no additional monitor, keyboard and mouse is strongly required locally for routine maintenance. Besides, the CN9600’s Virtual Media function allows a user to perform diagnostic testing, file transfers, or apply OS/applications updates and patches from a remote console.

To ensure seamless connectivity, the CN9600 is equipped with dual LAN and dual power functionality to keep operation in the server room smooth and efficient. The CN9600 also supports microphone and speakers on the local and remote console.

Integrating all these advanced functionalities, the CN9600 provides an affordable and durable over-IP server management solution while assuring users with operational dependability and efficiency.

Connectors
Console Ports 2 x USB Type A Female (White)
1 x DVI-D Female (White)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)
KVM Ports 1 x USB Type B Female (White)
1 x DVI-D Female (White)
1 x Mini Stereo Jack Female (Green)
1 x Mini Stereo Jack Female (Pink)
LAN Ports 2 x RJ-45 Female
Virtual Media 1 x USB Mini-B Female
Power 2 x DC Jack
Serial 2 x RJ-45 Female
Control 1x PS/2 Female
Switches
Reset 1 x Semi-recessed pushbutton (Black)
Emulation
Keyboard / Mouse USB
LEDs
Power 1 (Green)
Video Local console - 1920 x 1200 @ 60 Hz
Remote - 1920 x 1200 @ 60 Hz
Power Consumption DC5V:5.55W:30BTU
Environmental
Operating Temperature 0 -

Hardware
Compact and slim design for space utility optimization
Provides a FPGA graphics processor for better image quality and enhanced fps (frames per second) throughput for crisp video display response
Provides over-IP capability to DVI KVM switches that do not have built-in over-IP functionality*
Local console provides USB keyboard and mouse support**
A mini USB port on the front panel serves as a Laptop USB Console (LUC) port
Two 10/100/1000 Mbps NICs for redundant LAN or two IP operation
Dual Power Supply for power backup
Supports multiplatform server environments: Windows, Mac, Sun, Linux and VT100 based serial devices
Virtual Media support***
High video resolution – up to 1920 x 1200 @ 60Hz for both local and remote consoles
Audio support – microphone and speakers are supported on the local and remote console

* Compatible KVM Switch: ATEN DVI Single Link KVM Switches
**Since there are a large number of keyboards/mouses with functions specifically designed for OS other than Windows, they may not be adapted and may have compatibility issue
*** Some of the CN9600's features may not be supported, depending on the functionality of the cascaded KVM switch. (For example, some switches do not support virtual media)

Management
Complies to the RS-232 DTE/DCE standards for serial control
Up to 64 user accounts – up to 32 users can simultaneously share control
Console access right management
End session feature – administrators can terminate running sessions
Event logging and Windows-based Log Server support
Event Logging – the CN9600 can record all events that take place on it and write them to a searchable database
Supports instant notification of critical system events via email, SNMP trap and Syslog
Firmware upgradable via remote access
Access the CN9600 via a built-in serial viewer, or via third-party software (such as PuTTY) for Telnet and SSH sessions
Out of Band support – access the CN9600 through its serial port using a dial-up connection
Port Share Mode allows multiple users to gain access to a server simultaneously
Local/Remote Share Mode conveniently grants shared or exclusive console privilege
Integration with ATEN CC2000 Management Software
Integration with ATEN CCVSR Video Session Recording Software
Supports ATEN KVM over IP Console Station (KA8270 / KA8280 / KA8278 / KA8288)
DDNS – allows mapping of a dynamic IP address assigned by a DHCP server to a host name
Supports export/import of user account and configuration settings
Supports permission-controlled browser operation
Supports IPv6

Easy-to-Use Interface
Browser-based and AP GUIs offer a unified multilanguage interface to minimize user training time and increase productivity
Multiplatform client support (Windows, Mac OS X, Linux, Sun)
Multibrowser support (IE, Mozilla, Firefox, Safari, Opera, Netscape)
Browser-based UI in pure Web technology allows administrators to perform administrative tasks without pre-installed Java software package requirements
Full-screen or sizable and scalable Virtual Remote Desktop
Magic Panel with configurable function for quick launch

Advanced Security
Smart Card/CAC Reader support
External authentication support: RADIUS, LDAP, LDAPS and MS Active Directory
Supports TLS 1.2 data encryption and RSA 2048-bit certificates to secure users logging in from browsers
Flexible encryption design allows users to choose any combination of 56-bit DES, 168-bit 3DES, 256-bit AES, 128-bit RC4 or Random for independent keyboard/mouse, video, and virtual media data encryption
Supports IP/MAC Filter
Supports password protection
Private CA

Virtual Media
Virtual media enables file applications, OS patching, software installation and diagnostic testing
Works with USB-enabled servers at OS and BIOS level
Supports USB 1.1 and USB 2.0 DVD/CD drives, USB mass storage devices, PC hard drives, folders and ISO images

Virtual Remote Desktop
Video quality and video tolerance can be adjusted to optimize data transfer speed; monochrome color depth, threshold and noise settings can be adjusted for compression of the data bandwidth in low bandwidth situations
Full-screen video display or scalable video display
Message Board for communication among remote users
On-screen keyboard with multilanguage support
Mouse DynaSync™ – automatically synchronizes the local and remote mouse movements
Supports Exit Macros
BIOS-level access

Package Contents
1x CN9600 DVI KVM over IP Switch
1x KVM Cable (DVI-D, USB, Audio; 1.8 m/6 ft)
1x USB Cable (1.8 m/6 ft)
1x Power Adapter
1x Mounting Kit
1x User Instructions
