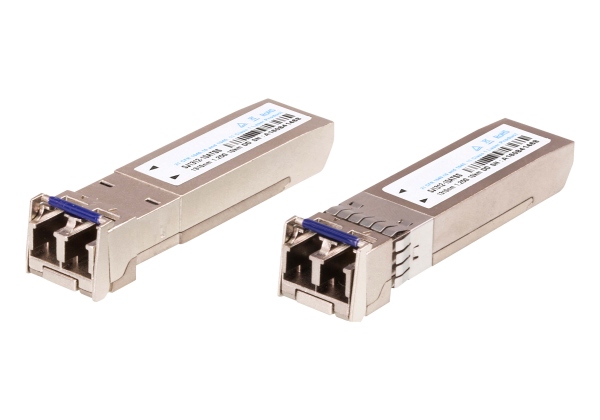

ATEN 10G Single-Mode/10KM Fiber SFP+ Module 2A-142G

The 2A-142G 10G Single-Mode/10KM Fiber SFP+ Module is designed for use in 10GbE Ethernet environment that allows you to connect a single-mode Gigabit Ethernet network cable to a network switch’s SFP+ port. The 2A-142G provides 10GbE connectivity at distances up to 10 kilometers meters. As a hotpluggable module with a standard duplex connector for fiber communications, the 2A-142G works with single-mode-fiber (SMF) connections and operates at a nominal wavelength of 1310 nm. This makes the module a cost-effective and highperformance transceiver to significantly increase the span of a compatible network switch.

Fiber Optics
Data Rate 10 Gbps
Operating Distance 10 km
Fiber Type Single Mode
DDM Yes
Environmental
Operating Temperature 0-70°C
Storage Temperature -40-85°C
Physical Properties
Weight 0.02 kg ( 0.04 lb )
Dimensions (L x W x H) 5.59 x 1.46 x 1.30 cm
(2.2 x 0.57 x 0.51 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.

Extend your network connectivity up to 10 kilometers
Compliant with IEEE 802.3ae standards
Compliant with SFF-8431 MSA Digital Diagnostic Monitor (DDM)
Hot pluggable
Low power consumption
Operation Temperature from 0° C to 70° C
RoHS compliant

Package Contents
2 x 10G Single-Mode/10KM Fiber SFP+ Module
