Popis produktu:

Switching between two computers can be as easy as the push of a button. Refresh your workspace with the CS22H by setting up a desktop console with one set of keyboard/mouse/display for control over two computers via USB and HDMI connections, and you’re all set. The compact CS22H helps create an organized desktop with reduced cable clutter, and brings in vivid 4K viewing quality to lift up work performance.


The CS22H empowers your desktop operations with audiovisual enhancement with 4K DCI compliance and audio connectivity.


The compact and easy-hook design is helpful to expanding desktop workspace in an orderly fashion for improved work productivity.

Smooth Cross-Platform Integration
The CS22H enables the integration of different computer systems (Windows, Mac and Linux) that are accessible over one KVM console


Flexible USB Peripheral Sharing
The console USB ports can be used for plug-n-play connection to compatible USB 2.0 peripheral devices to fulfill data-intensive desktop work requirement.

Plug in. Power on
The CS22H supports USB hot-plugging and is bus-powered by the connected KVM sources via USB ports.

Features:

For a smart-looking, neat and tidy work environment, ATEN’s patented all-in-one design Cable KVM Switches eliminate the bother of connecting multiple cables by consolidating keyboard, video and mouse cables into one, and building that cable right into switch.

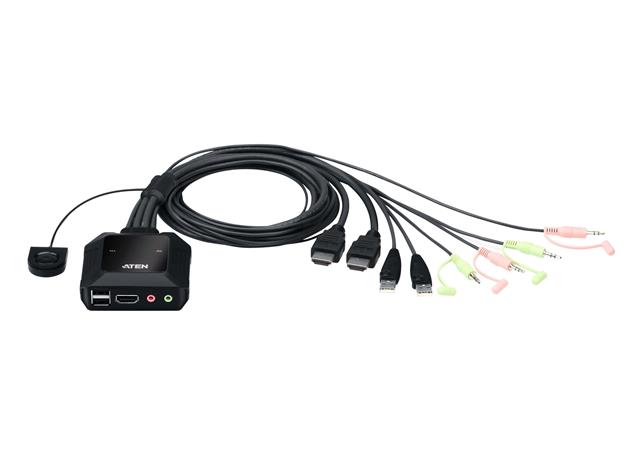

The ATEN CS22H Cable KVM Switch can instantly access two computers with a USB and HDMI console while offering superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), bringing users maximum convenience and optimum visuals.

When users want to switch between the computers, simply press the built-in remote port selector to enjoy intuitive operations. Moreover, the CS22H supports USB peripheral sharing, easily integrating data and ensuring uninterrupted data transmission.

Its compact and bus-powered design provides an efficient installation without bulky cable setups, and the newly-designed hook allows users to place the CS22H wherever they want to keep desktop tidy and well-organized. This plug and play switch is ideal for people who need quick control to multitask between two computers at the desktop in any environment.




One USB keyboard, mouse and one HDMI monitor control two HDMI computers
Superior video quality – up to 4K DCI (4096 x 2160 @ 60Hz)
Computer selection via remote port selector
HDMI compliant; HDCP 2.2 compliant
Supports USB hot-plugging
The console USB ports can be used for USB peripheral sharing1
Multiplatform support – Windows, Mac and Linux

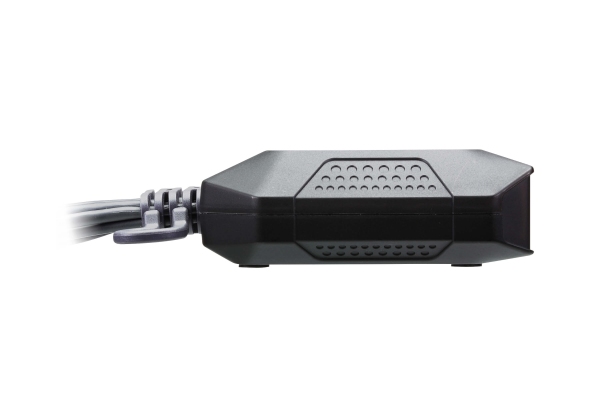

Hook design for space-saving and organized workstation
Plug and play
Bus-powered – no external power adapter required

Note: 1. The CS22H may require an external power supply via a micro USB port.



Computer Connections 2
Port Selection Remote Port Selector
Connectors

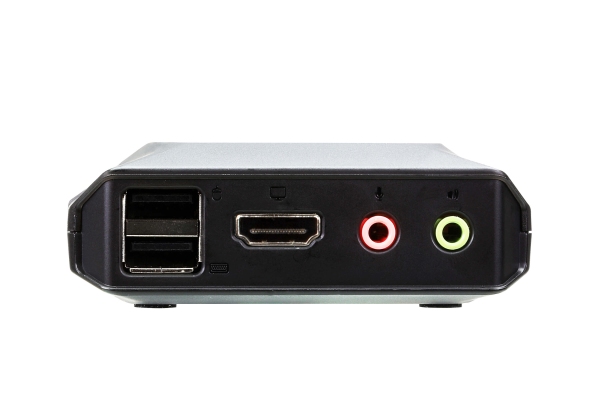

Console Ports 1 x HDMI Female
2 x USB Type A Female
1 x 3.5mm Audio Jack Female (Green)
1 x 3.5mm Audio Jack Female (Pink)

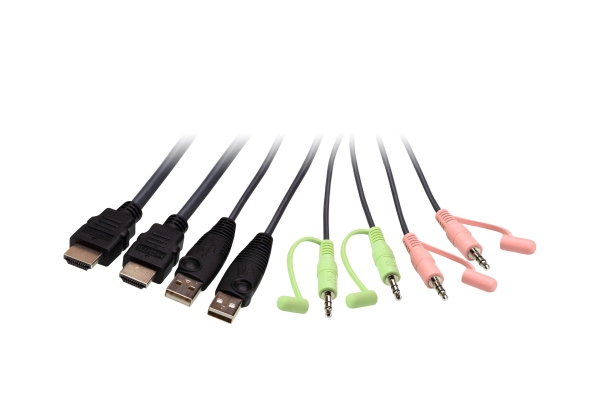

KVM (Computer) Ports 2 x HDMI Male
2 x USB Type A Male
2 x 3.5mm Audio Jack Male (Green)
2 x 3.5mm Audio Jack Male (Pink)

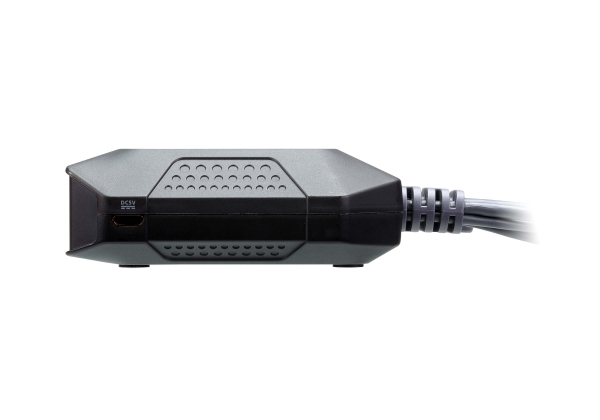

Power (Optional) 1 x USB Micro Type B Female
LEDs
KVM Port (On Line /Selected) 2 (White)
Cable Length
KVM 2 x 1.2 m
Remote Port Selector 1.8 m
Emulation
Keyboard / Mouse N/A
Video 4096 x 2160 @ 60Hz
Power Consumption DC5V:3.47W:29BTU
Environmental
Operating Temperature 0 - 50°C
Storage Temperature -20 - 60°C
Humidity 0-80% RH, Non-condensing
Physical Properties
Housing Plastic
Weight 0.34 kg ( 0.75 lb )
Dimensions (L x W x H) 8.34 x 8.42 x 3.04 cm
(3.28 x 3.31 x 1.2 in.)
Note For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
