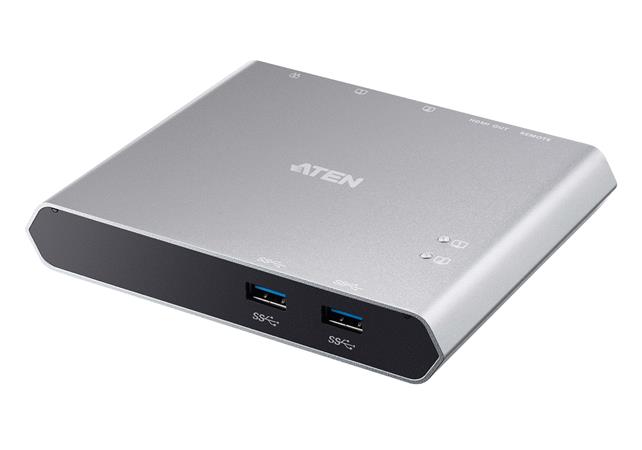

Aten 2-Port USB-C Dock Switch with Power Pass-through US3310-AT





Aten 2-Port USB-C Dock Switch with Power Pass-through US3310-AT






Aten 2-Port USB-C Dock Switch with Power Pass-through US3310-AT




  • Aten 2-Port USB-C Dock Switch with Power Pass-through US3310-AT
  • Aten 2-Port USB-C Dock Switch with Power Pass-through US3310-AT
  • Aten 2-Port USB-C Dock Switch with Power Pass-through US3310-AT
  • Aten 2-Port USB-C Dock Switch with Power Pass-through US3310-AT
  • Aten 2-Port USB-C Dock Switch with Power Pass-through US3310-AT
  • Aten 2-Port USB-C Dock Switch with Power Pass-through US3310-AT
  • Aten 2-Port USB-C Dock Switch with Power Pass-through US3310-AT
















Výrobca

ATEN

KódITK743004
Part No.US3310-AT
Dostupnosť po pobočkách
nie je skladom

NRE

nie je skladom

NR

nie je skladom

BA


DPH 20%
Vaša cena s DPH
141.53
bez DPH 117.94

Vaša cena bez DPH
Garancia cenyNašli ste inde na internete nižšiu cenu? Informujte nás!
Objednať
nie je skladom


Hodnotenie produktu
Hodnotené 2x
Záruka koncový zákazník: 2 Roky
Záruka firma: 2 Roky
Výrobca:

ATEN


Kód: ITK743004
Part No.: US3310-AT


















Allows a USB-C laptop and an Android Smartphone to share one HDMI monitor and all connected USB peripherals Provides USB Power Delivery 3.0 for laptop charging up to 85W (additional USB-C Power Adapter needed) Supports 4K resolutions – up to 3840 x 21





  •

Aten 2-Port USB-C Dock Switch with Power Pass-through US3310-AT



Podrobnosti o produkte





Popis produktu:

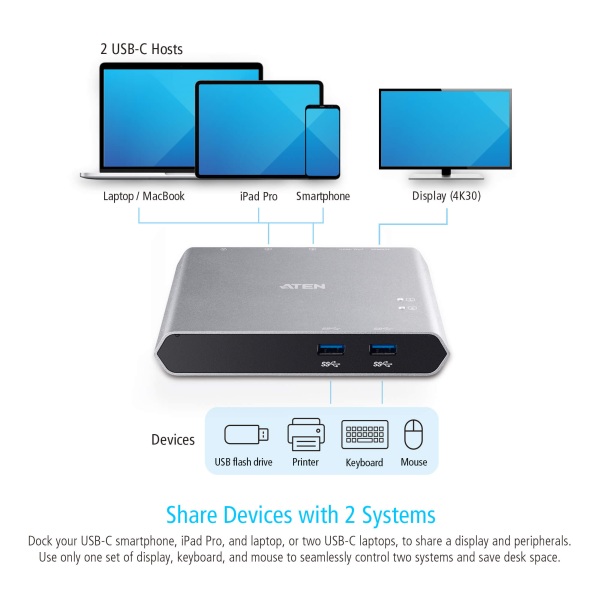

Allows a USB-C laptop and an Android Smartphone to share one HDMI monitor and all connected USB peripherals
Provides USB Power Delivery 3.0 for laptop charging up to 85W (additional USB-C Power Adapter needed)
Supports 4K resolutions – up to 3840 x 2160 @ 30Hz
Video DynaSync – allows EDID and HDCP monitors and computers to function flawlessly, and provides fast switching such as continuous real-time switching

The US3310, 2-port USB-C Dock Switch with Power Pass-through, features the combination of a multiport dock and allows one button switching between two sources – laptop and Android smart phone. Use only one set of display, keyboard, and mouse to seamlessly control two different systems and save desk space. With the remote port selector, you can put it on the most convenient place or hide it under the desk to do the quick switching.

Featured with the superior HDMI video resolutions up to 4K (3840 x 2160) @ 30Hz, the US3310 delivers high quality video with minimal latency when switching and your HDMI connection will keep active without destroying the layout when switching. In addition, the USB 3.2 Gen1 provides data transfer speed up to 5Gb/s allowing to share external storage devices for swapping data between two systems easily.

The 85W USB C power delivery 3.0 pass-through can keep charging your phone and laptop simultaneously and also provides the enough power for power-hungry devices, such as external hard drives or gaming devices. You can connect smartphone with US3310 to build a workstation in Samsung DeX mode or Huawei Desktop mode for multitasking, and switch to laptop once you have heavy loading task to do.

With US3310, users can save desk space, and switch host devices directly, and creates a personalized desktop environment.


Allows a USB-C laptop and an Android Smartphone to share one HDMI monitor and all connected USB peripherals*
Provides USB Power Delivery 3.0 for laptop charging up to 85W (additional USB-C Power Adapter needed)**
Supports 4K resolutions – up to 3840 x 2160 @ 30Hz
Supports Samsung DeX mode or Huawei Desktop mode***
Video DynaSync – allows EDID and HDCP monitors and computers to function flawlessly, and provides fast switching such as continuous real-time switching
Switch device via remote port selector by pressing a button
Plug and play – no drivers or external power adapter needed
Multiplatform support – Windows, Mac, Android & iPad Pro (2018)
*For video output to work through a USB-C port, it must support DP Alt Mode.
**For device charging, a Limited Power Source (LPS) certified USB-C PD Power Adapter over 65Watt is recommended. The minimum system power requirement for basic USB functions and video output should be at least 5V, 3A.
***Compatible with smartphones launched in 2018 or later that feature video output DP Alt Mode over USB-C. For a list of supporting mobile device, refer to US3310's user manual

Package Contents
1x US3310 2-Port USB-C Gen 1 Dock Switch with Power Pass-through
2x USB-C Cables
1x Remote Port Selector
1x User Instructions

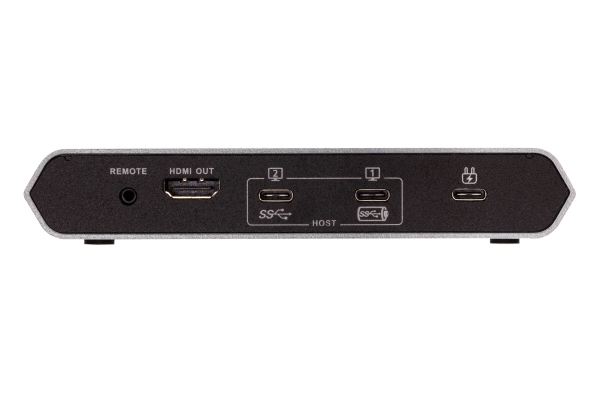

Computer Connections 2

Connectors
Computer
USB 3.2 Gen 1 Type-C Port 1 (Laptop)
USB 3.2 Gen 1 Type-C Port 2 (Android : Samsung Dex or Huawei Desktop mode)

Device

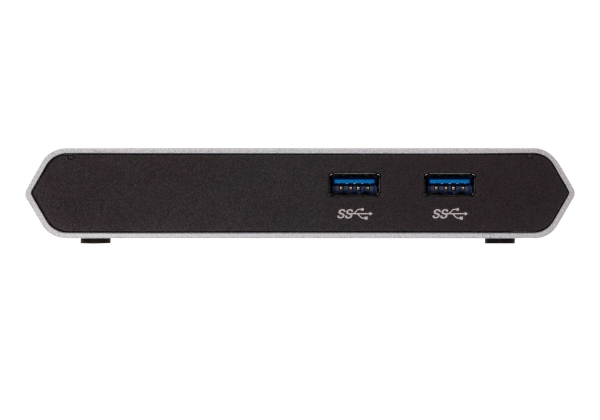

2 x USB 3.2 Gen 1 Type-A Female

Video Output
1 x HDMI Female

Power
1 x USB-C DC-in Female*

Port 1 : Supports USB-C PD laptop charging at 5V, 9V, 15V, 20V output*
Port 2 : Supports max. 5V, 2A output

*Supports maximum 100W USB-C PD power adapter input.
*For device charging, a Limited Power Source (LPS) certi?ed USB-C PD Power Adapter over 65 Watt is recommended. The minimum system power requirement for basic USB functions and video output should be at least 5V, 3A.
*The first 15W will supply the US3310, the next 10W will supply USB-C device connected to Port 2, and the balance power will supply USB-C device connected to Port 1.

Port Selection

Input
Remote port selector

Video Resolution
Up to 3840 x 2160@30hz

System Requirements
Windows 10 and above, USB-C enabled computer with DP Alt Mode*
* With Intel 7th-Generation Core Processor (Kaby-Lake) and above. More info about CPU generation, please ?nd: https://www.intel.com/content/www/us/en/processors/processor-numbers.html

Mac OS X 10.12 and above, USB-C enabled computer

Android 8.0 and later, USB-C enabled Smartphone with DP Alt Mode**
**Only Samsung and Huawei support PC-like operation, others only support mirror mode. For a list of supporting mobile device, refer to US3310's user manual.

iOS 12.1 and above, iPad Pro 3rd generation (2018)***
*** For better HID experience, iPad OS 13 and above is recommended.

Power Consumption
DC5V:1.24W:406BTU
LEDs
Selected
2 (White)

Environmental
Operating Temperature
0–40°C
Storage Temperature
-20–60°C
Humidity
0–80% RH, Non-condensing

Physical Properties
Housing
Aluminum
Weight
0.33 kg ( 0.73 lb )
Dimensions (L x W x H)
14.30 x 11.90 x 2.38 cm
(5.63 x 4.69 x 0.94 in.)

Note
For some of rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
