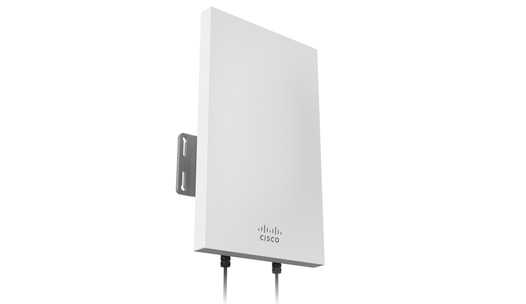

Cisco Meraki Dual Band Sector Antenna MA-ANT-27

Electrical · Antenna type: panel · Frequency range: 2.400 - 2.500 GHz, 5.150 - 5.875 GHz · Gain: 9 / 12 dBi · Polarization: linear, vertical / horizontal · Half power beamwidth / horizontal: 86° / 65° · Half power beamwidth / vertical: 34° / 18° Physical & Environmental · Dimensions: 9.1" x 5.5" x 1.9" (230 mm x 140 mm x 48 mm) · Weight: 1.4 lbs (630 g) · Material: UV resistant plastic · Temperature: -40° F to 158° F (-40° C to 70° C) · Humidity: 5 to 95% non-condensing · Connector: 2 x N-type Mounting · Mounting hardware and cables included · Mounts to walls, poles, or AP directly Cables · 12 inch cables with two N-type connectors included Regulatory · Certified for use with the MR84
