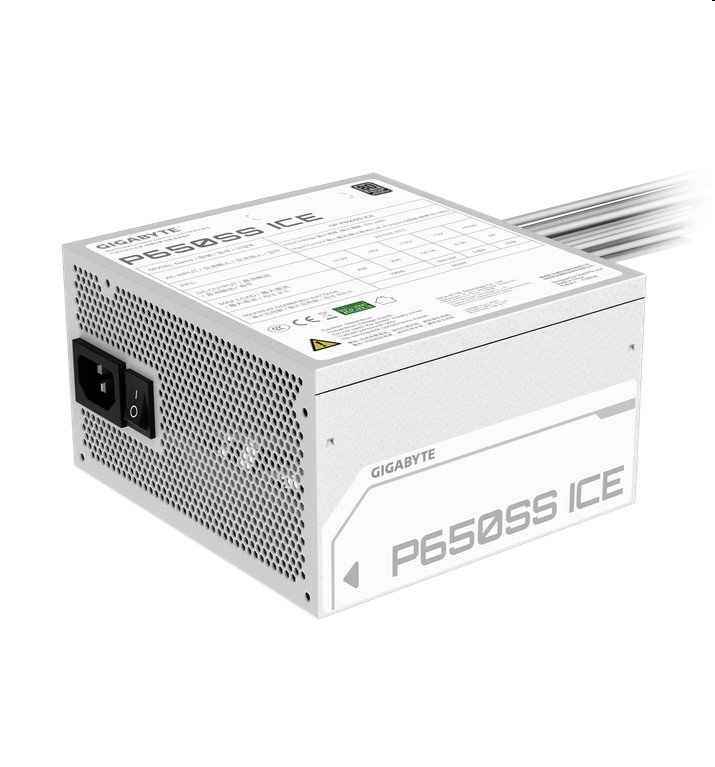

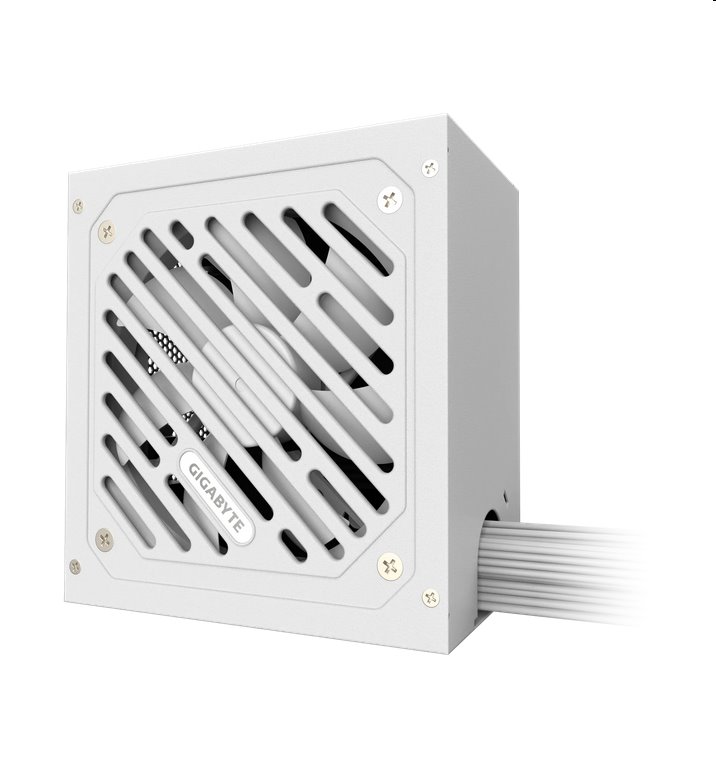

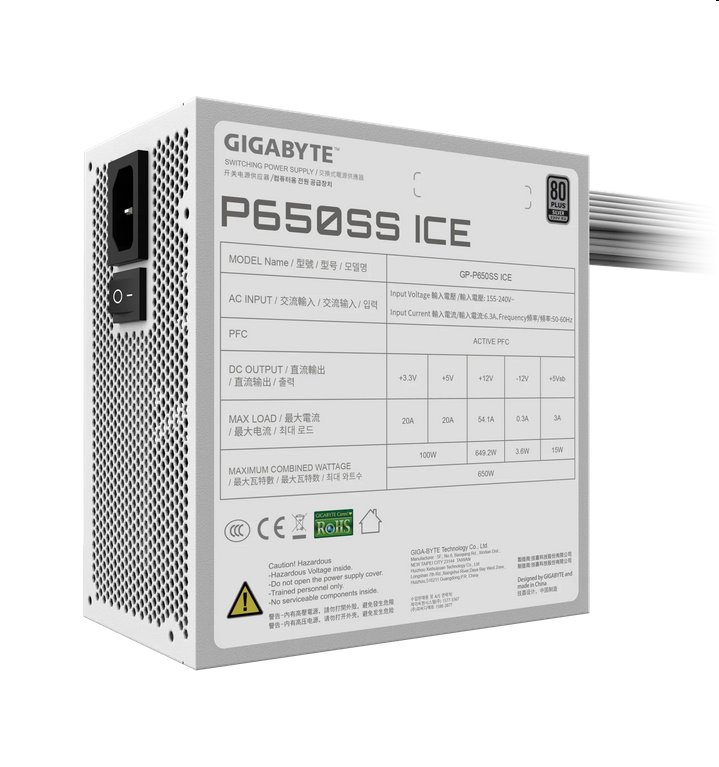

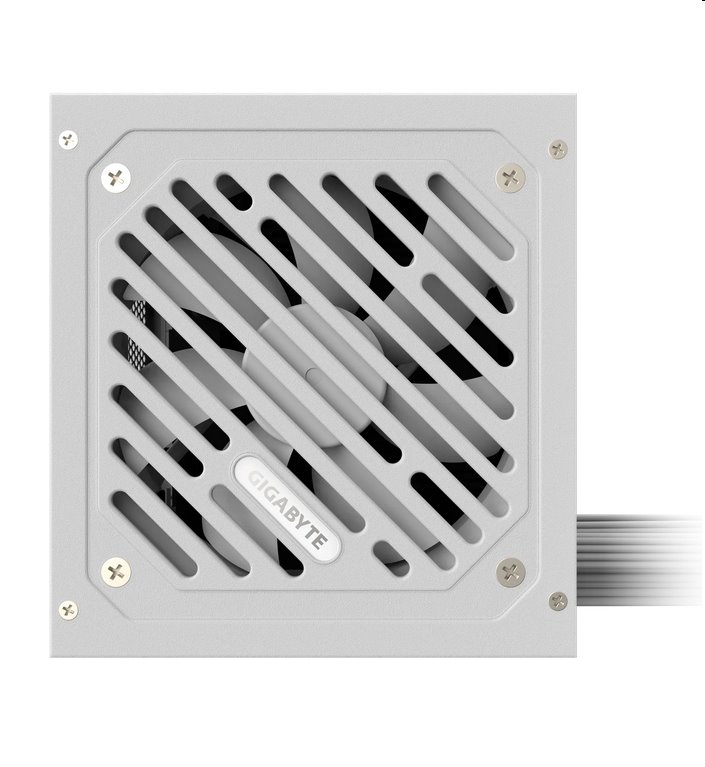

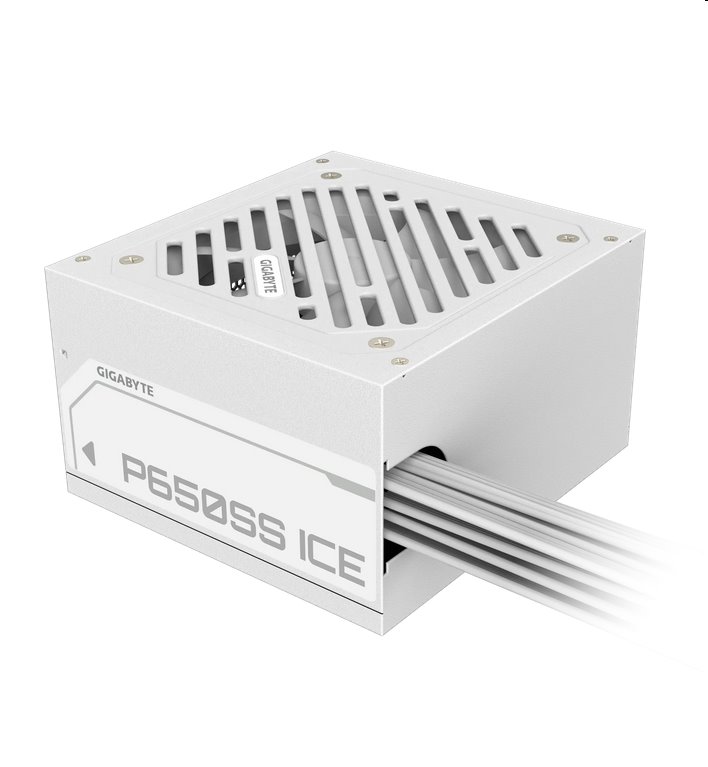

Gigabyte P650SS ICE 650W 80+ Silver GP-P650SS ICE

KEY FEATURE

   80 PLUS Silver certified (230V EU)
   Support Intel ATX 3.0 standard (compatible with ATX 3.1)
   120mm Fluid Dynamic Bearing (FDB) Fan
   Flat cable design
   Powerful single +12V rail
   OVP/OPP/SCP/UVP/OCP/OTP protection
   3 years warranty (Adjusted according to different regions)

P650SS ICE

   Model
   GP-P650SS
   Type
   Intel Form Factor ATX 12V v3.0 (compatible with ATX 3.1)
   PFC
   Active PFC (>0.9 typical)
   Input Voltage
   155-240 Vac
   Input Current
   6.3A
   Input Frequency
   60-50 Hz
   Output Capacity
   650W
   Dimension
   150 x 140 x 86 mm
   Fan Type
   120mm Fluid Dynamic Bearing (FDB) fan
   80 PLUS
   Silver
   Efficiency
   90% at typical load (230V EU)
   MTBF
   >100,000 hours
   Protection
   OVP/OPP/SCP/UVP/OCP/OTP
   Power Good Signal
   100-150ms
   Hold Up Time
   >16ms
   Cable Type
   Flat
   Connectors
   ATX/MB 20+4 Pin x 1 : 600mm*1
   CPU/EPS 4+4 Pin x 2 : 650mm+120mm*1
   PCI-e 6+2 Pin x 2 : 600mm*2
   SATA x 3 + 4 Pin Peripheral x 1 : 500mm+120mm+120mm+120mm*1
   SATA x 2 + 4 Pin Peripheral x 2 : 500mm+120mm+120mm+120mm*1
