Popis produktu:

MSI PC Cubi N JSL-042EU /pentium N6000/4GB/128GB SSD/Wifi/USB/ Win 11 Pro

Entity MKT Name Cubi N JSL-042EU
MKT Spec Cubi N JSL-042EU
Website Name Cubi N JSL
Color ID1/Black-Black-Black
System/Barebone System
Processor
CPU Core Name JASPER LAKE
CPU Socket BGA-1338pin
CPU Number Intel Pentium N6000
CPU Clock 1.1GHz
CPU Cores 4
TDP 6W
CPU Cooler Air cooling
Max Turbo Frequency up to 3.30 GHz
Cache 4 MB L3 Cache
Threads 4
Chipset
Chipsets N/A
MB Ori. MKT Name MS-B0A11
Graphics
GPU1 Vendor N/A
GPU1 MKT Name N/A
GPU1 Number
GPU1 VRAM Size
VGA I/O Port N/A
VGA MKT Name N/A
Memory
Memory Size 4GB(4GB*1)
Memory Type DDR4 SDRAM
Memory Speed 1600(3200)MHz
Module Type SO-DIMM
Memory Slot 1
Memory Slot(Total) 2
Memory Slot(Free)
Max Capacity Max 16GB
Storage
SSD Interface SATA GEN3
SSD Form Factor M.2-2280 B+M KEY
SSD Config 128GB*1
SSD Size 128GB
HDD1 Interface N/A
HDD1 Form Factor N/A
HDD1 Size N/A
HDD1 RPM N/A
ODD(Type) N/A
ODD Height N/A
ODD Type
mSATA slots N/A
mSATA slots(Total) NA
mSATA slots(Free)
M.2 slots 1
M.2 slots(Total) 1
M.2 slots(Free)
2.5" Drive Bays N/A
2.5" Drive Bays(Total) NA
2.5" Drive Bays (Free)
3.5" Drive Bays N/A
3.5" Drive Bays(Total) NA
3.5" Drive Bays(Free)
Communications
LAN Realtek RTL8111H
WLAN INTEL/AX201.NGWG.NVW
WLAN Version 802.11ax 2x2+BT
BT Version 5,2
VESA
VESA size 100 x 100 mm
Audio
Audio Chipset Realtek ALC233
Audio Type 5.1 Channel HD Audio
Speaker NA

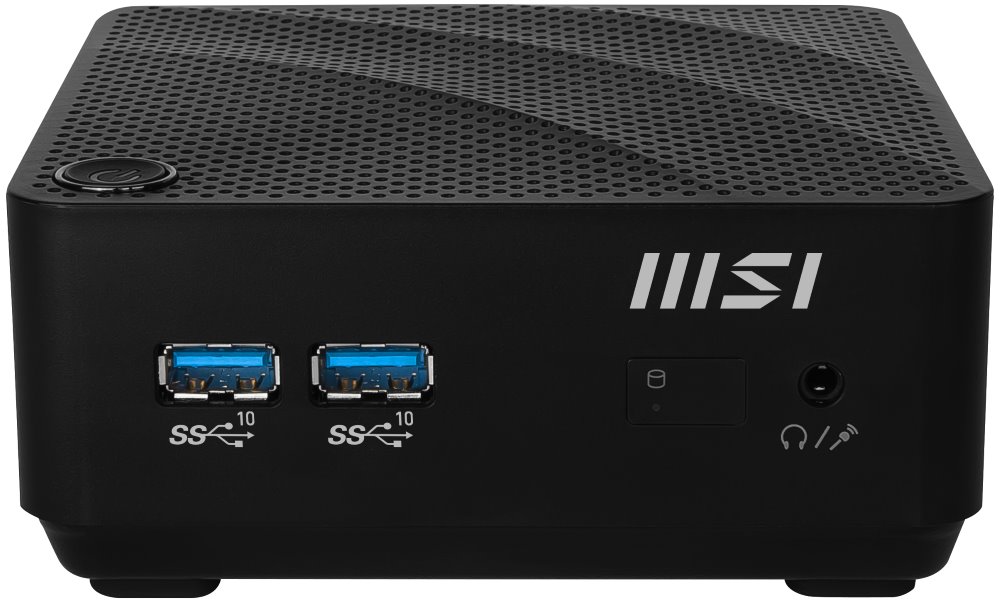

I/O Ports (Front)
USB 3.2 Gen 2x2 Type C NA
USB 3.2 Gen 2x2 Type A NA
USB 3.2 Gen 2 Type C NA
USB 3.2 Gen 2 Type A 2
USB 3.2 Gen 1 Type C NA
USB 3.2 Gen 1 Type A NA
USB 2.0 Type A NA
USB 2.0 Type C NA
Thunderbolt NA
Audio Mic-in NA
Audio Headphone-out NA
Audio Headphone-out (HiFi/SPDIF) NA
Mic-in/Headphone-out combo 1

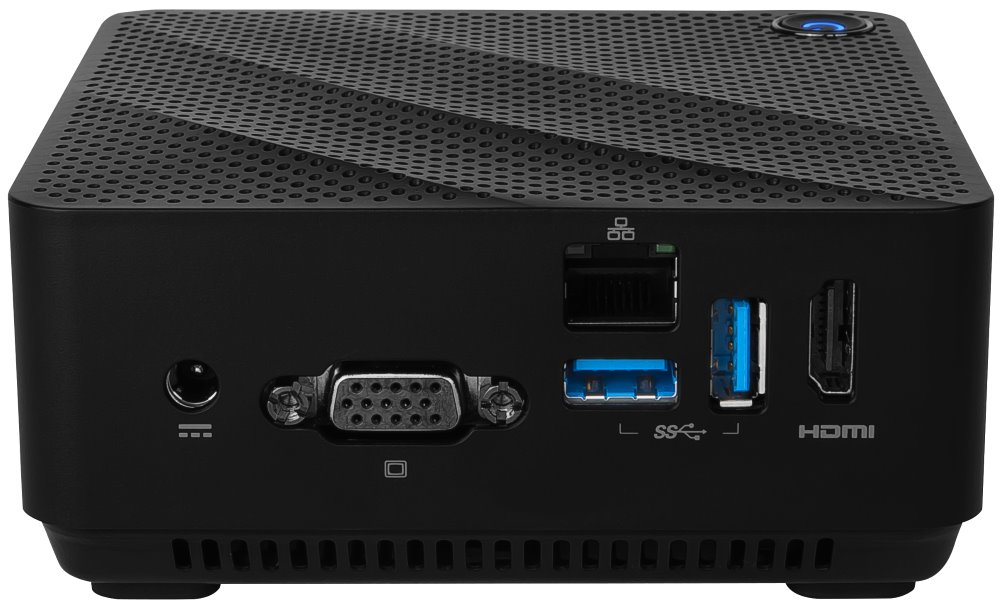

I/O Ports (Rear)
USB 3.2 Gen 2x2 Type C (R) NA
USB 3.2 Gen 2x2 Type A (R) NA
USB 3.2 Gen 2 Type C (R) NA
USB 3.2 Gen 2 Type A (R) NA
USB 3.2 Gen 1 Type C (R) NA
USB 3.2 Gen 1 Type A (R) 2
USB 2.0 Type C (R) NA
USB 2.0 Type A (R) NA
Thunderbolt (R) NA
RJ45 1
WiFi Antenna NA
Card Reader NA
VGA out 1
VR-Link NA
HDMI out 1x (v2.0)
DP out NA
mini DP in NA
mini DP out NA
PS/2 NA
COM Port NA
DVI-D out NA
Audio jack 1
S/PDIF NA
Flash BIOS Button NA
Power
Power 65W
Power Certification N/A
Formfactor N/A
Type ADAPTOR
Operating Systems
OS PROFESSIONAL(WIN 11 PRO ENTRY OLC OA3)
OS Type W11PB
Operating Systems Windows 11 Pro
Pallet
Pallet Q'ty (by air) N/A
Pallet Q'ty (by sea) N/A
Dimension&Weight
Product Dimension (WxDxH) (mm) 112 x 116 x 44.47(thin botton cover), 55.5(thick botton cover)
Product Dimension (WxDxH) (inch) 4.41 x 4.57 x 44.47(thin botton cover), 55.5(thick botton cover)
Inside Carton Dimension (WxDxH) (mm) 205 x 220 x 94
Inside Carton Dimension (WxDxH) (inch) 8.07 x 8.66 x 3.7
Outer Carton Dimension Standard (WxDxH) (mm) 221 x 506 x 469
Outer Carton Dimension Standard (WxDxH) (inch) 8.7 x 19.92 x 18.46
Outer Carton Dimension with bundle item (WxDxH) (mm) 221 x 506 x 469
Outer Carton Dimension with bundle item (WxDxH) (inch) 8.7 x 19.92 x 18.46
Weight (Net kg) 0,47
Net Weight (lbs) 1,04
Weight (Gross kg) 1,25
Gross Weight (lbs) 2,76
Liter 0,45
Pint 0,95
Warranty
Warranty 24months
SW Feature - 3rd Party Royalty
Nahimic Sound effect N/A
HDMI Royalty Y
Mechanical and Environmental
Operating, Storage Temperature 0° C ~ 35° C ; -20° C ~ 60° C
Operating, Storage Humidity 0% ~ 85%;0% ~ 90%
Regulatory Compliance FCC(Class B)
CB/CE
UL(CUL)
BSMI
VCCI
RCM(C-Tick)
Accessories
AC Adaptor 1
Power Cord 1
Warranty Card 1
Quick Guide 3
User Manual N/A
VESA Mount kit 1
