Seasonic FOCUS SGX SFX GOLD 650W, modular FOCUS-SGX-650

FOCUS SGX

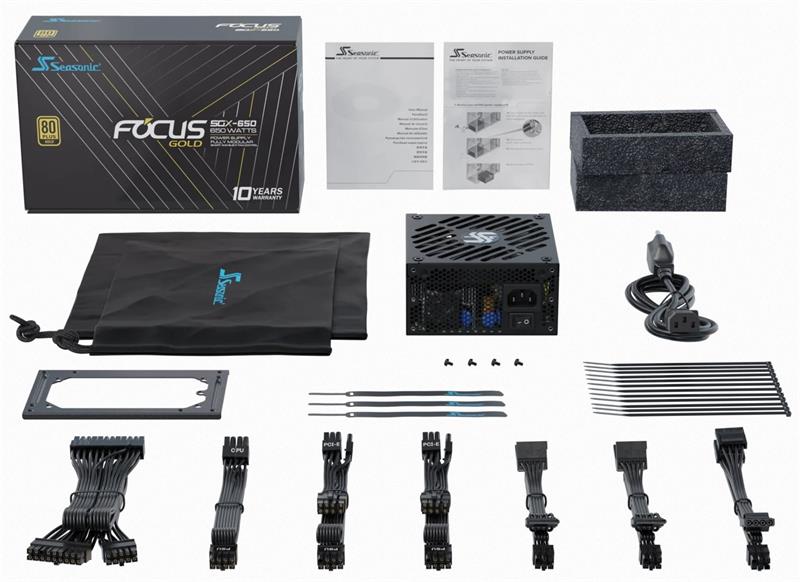

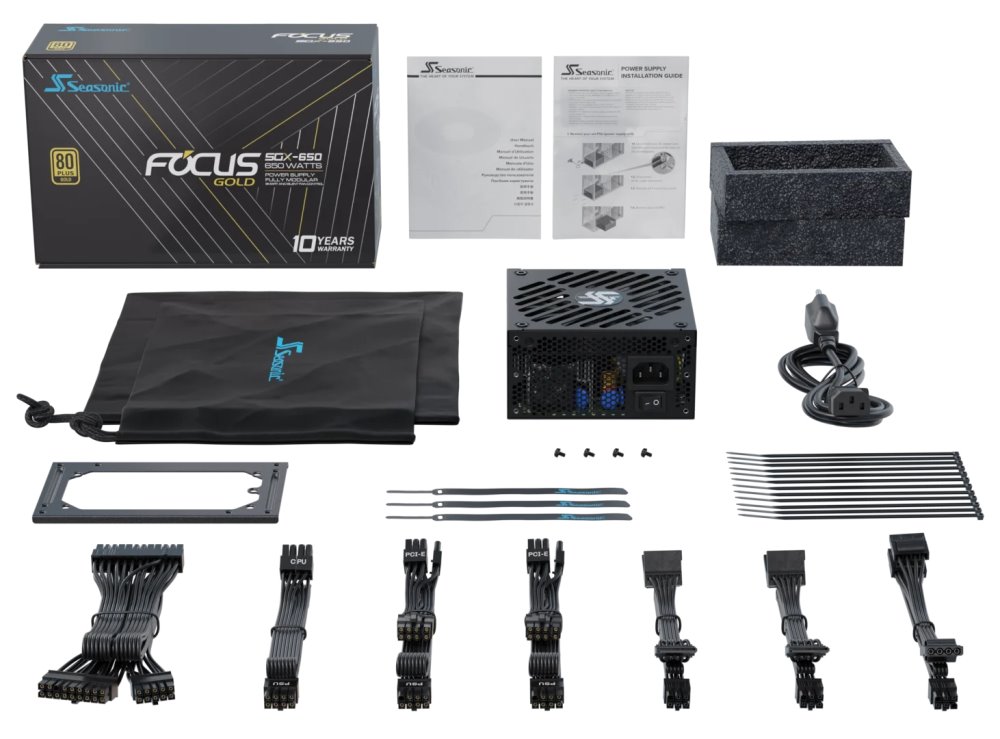

The long-awaited new line of Seasonic’s FOCUS SGX is versatile in its application, and powerful with a small footprint. The FOCUS SGX is shipped with an SFX to ATX adapter bracket in the box, which allows the power supply to be mounted not only in the SFX form factor chassis, but also a standard ATX chassis should the user prefers to reserve more space for airflow inside the PC case. The Seasonic hybrid fan control is always enabled to optimize the cooling according to necessity.


Specifications
650 W
500 W
450 W
Technical Specifications
80PLUS® Gold
Cybenetics Efficiency Level Gold
Cybenetics Noise Level Standard+
Form Factor SFX
Dimensions 125 × 125 × 63.5 mm
Fan Information Fan Size 120 mm
Fan Control Premium Hybrid Fan Control
Fan Bearing Fluid Dynamic Bearing
Life Expectancy 50,000 hours at 40 °C, 15 % - 65 % RH

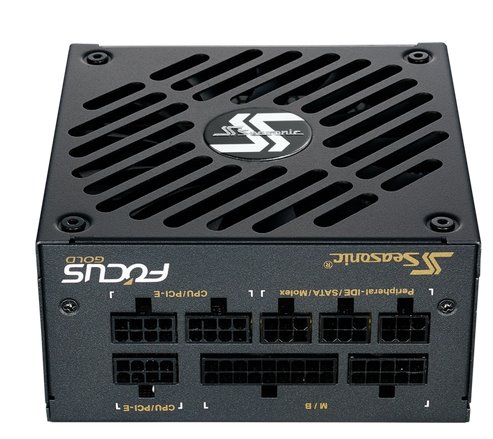

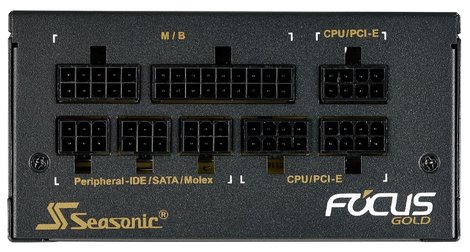

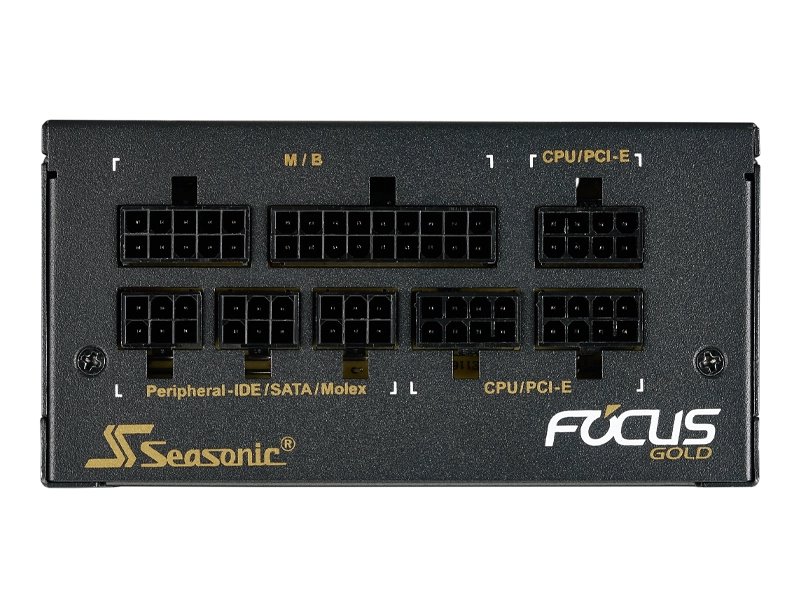

Cable Information Modularity Fully Modular
Cable type Black Flat Cables
Electrical Features Operating Temperature 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C linearly)
MTBF @ 25 °C, excl. fan 100,000 hours
AC Input Full Range
Protection OPP, OVP, UVP, OCP, OTP, SCP
Safety and Environmental Safety and EMC cTUVus, TUV, CB, CCC, BSMI, EAC, CE
Environmental Compliance Energy Star, RoHS, WEEE, ErP Lot 6, REACH
Warranty 10 Years
Power Output
AC Input 100 V - 240 V
9 - 4.5 A
50 Hz - 60 Hz
DC Output Rail +3.3 V +5 V +12 V -12 V +5 VSB
Maximum Power 20 A 20 A 54 A 0.3 A 3 A
100 W 648 W 3.6 W 15 W
Total continuous power 650 W
