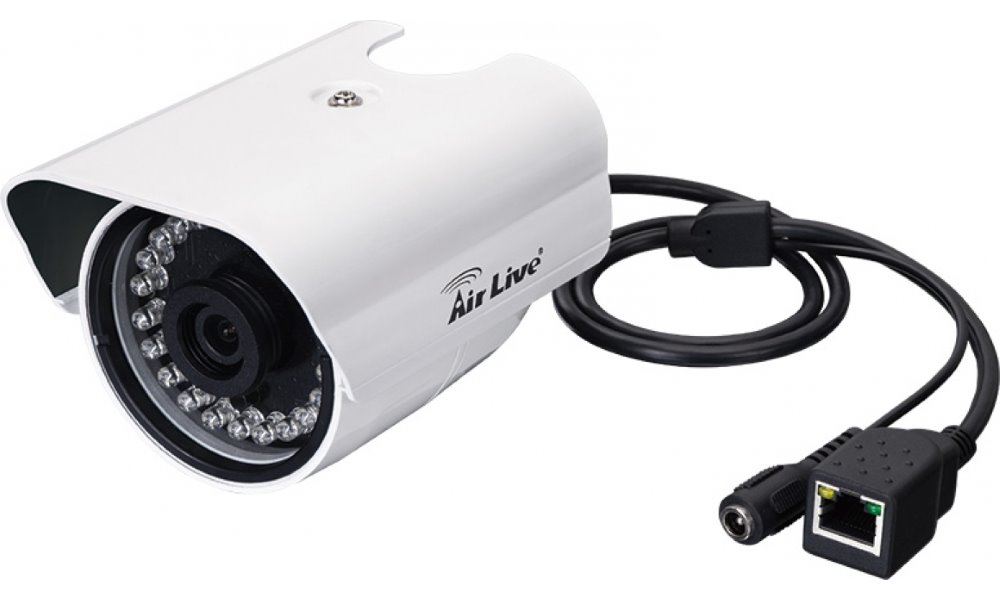

AirLive BU-2015 2-Megapixel Outdoor IR Nightvision Bullet IP Camera OVERVIEW AirLive BU-2015 is a high-level 2-Megapixel network camera which is designed for professional surveillance and security applications. The built-in IR LEDs provides high quality of night time monitoring with 15M viewing distance in darkness. Users are able to view live video over the internet and PoE function allows power and data to be transmitted via single Ethernet cable. This useful function provides an easier installation, lower cabling costs and allows placement of AirLive PoE cameras in locations without access to electrical source. With the IP66 rated housing, AirLive BU-2015 offered water and dust proof features for demanding environments. Also it can be easily installed and be integrated into kinds of surveillance project. FEATURES • 2-Megapixel 1/2.5” CMOS Sensor • Up to 30fps at 1080P resolution • Support H.264/MPEG4/MJPEG multi-streaming • Mechanical IR-Cut Filter Removable • 22 units IR LED for 15M Distance • Power over Ethernet (IEEE802.3af/at) • Compatible with ONVIF Standard • 4mm High Quality Lens • Support Samba Server, Motion Detection and Email Notification • MicroSD/SDHC Card Support • IP66 Weatherproof Housing • Free Boundled 64-Channel Recording Software SPECIFICATIONS CAMERA Camera Type • Outdoor IR Bullet Type Image Sensor • 1/2.5" CMOS Sensor Max. Resolution • 1920 X 1080 Lens Type • 4mm, Board Lens Night Vision • Yes IR Distance (Max.) • 15M Minimum Illumination • Color: 0.05 Lux • B/W: 0 Lux (IR On) Mechanical IR-Cut Filter • Yes Auto Iris • None Angle of View (Diagonal) • 67.8° Analog Video Out • None VIDEO Video Compression • H.264 High/Main/Baseline Profile, MPEG4 Simple Profile, MJPEG and 3GPP Resolution and Frame Rate • 30fps@1920x1080 • 30fps@1280x960 • 30fps@1280x720 • 30fps@720x480 • 30fps@640x480 • 30fps@320x240 Streaming • Multi-profile streaming • Streaming over UDP, TCP, or HTTP • 3GPP mobile view • Configurable frame rate and bandwidth • Support CBR and VBR Image Processing • AE, AWB • Noise reduction • Brightness, Sharpness, Contrast, Saturation • Mirror Vertical / Horizontal • Text, time and date OSD Digital Zoom • Yes Shutter Time • Auto, Manual: 1/15~1/10000sec, Day/night dual programmable NETWORK Ethernet • One RJ45 Port; IEEE 802.3u Compliant 10/100 Mbps Fast Ethernet with Auto-MDIX PoE • IEEE802.3af/at Supported Protocols • TCP/IP, UDP, ICMP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, HTTPs, Samba, PPPoE, UPnP, Bonjour, RTP, RTSP and RTCP Security • Password protection • IP filter • HTTPS LED INDICATOR Power LED • Amber Color Link/Act. LED • Green Color GENERAL Network Processor • DSP Base Power Supply • DC5V/2A (Optional) Power Consumption • 8 Watts Max. Connector • RJ-45 10BaseT/100BaseTX • 5V DC power jack • Reset Button Environment • Operation Temp: -20? ~ 50? • Humidity: 20% ~ 85% non-condensing • Storage Temp: -20? ~ 60? • Humidity: 0% ~ 90% non-condensing Weather Proof • IP66 SD card slot • 32G MicroSD/SDHC Dimension • ?73mm x 112mm System Integration Software • CamPro Express 64, CamPro Professional • Search & Installation- IP Wizard II Event Triggers • Motion detection Motion Detection • Up to 3 zones Event handler • FTP or NAS file upload • E-mail alter UPNP • Yes Application Programming Interface • ONVIF • Open API for software integration • SDK Video Buffer • 5 sec. pre-alarm / 5 sec. post-alarm, up to 3MB Alarm Events • File upload via FTP, NAS, E-mail • Notification via email • Save to SD card Continuous Recording • Yes Certificate • CE, FCC-Class A VIEWING SYSTEM OS • WindowsR XP, Vista, 7 Browser • IE 6.0 or later, Firefox 2.0 or later, Safari
