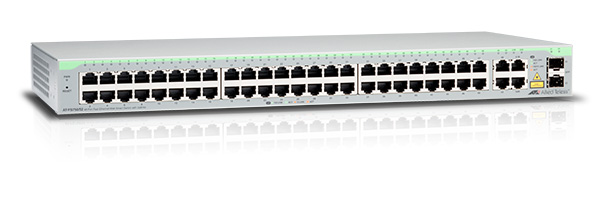

AT-FS750/52-50 48 Port Fast Ethernet WebSmart Switch with 4 uplink ports (2 x 10/100/1000T and 2 x SFP-10/100/1000T Combo ports) Overview These advanced Allied Telesis WebSmart switches integrate the simplicity of unmanaged switches with the performance and reliability of managed switches to provide a cost-effective, yet secure and reliable, solution for users to integrate management at the edge of their networks. With user-friendly web-based management, the FS750 Series is an ideal option for integrating simple management and security into a network solution. Product Contents *Switch unit *Rack-mount brackets and screws *Power cord *Rubber feet Technical Specs Performance *14,880pps for 10Mbps Ethernet *148,800pps for 100Mbps Ethernet *1,488,000pps for 1000Mbps Ethernet *MAC addresses: 8,000 *VLAN IDs available: 4,000 *Max VLANs: 256 *Packet buffer: 4.1 Mbit *DRAM: 128MB *Flash: 16MB Interface Connections *10/100TX *10/100/1000T: RJ-45 *SFP: 100FX, 1000T, 1000SX or 1000LX Environmental Compliance *RoHS *Eu-RoHS *China RoHS *WEEE MTBF *263,000 hours *Telcordia SR-332 Environmental Specifications *Operating temperature 0°C to 40 °C *Non-operating temperature -25°C to 70°C *Operating humidity: 5% to 90% non-condensing *Storage humidity: 5% to 95% non-condensing *Vibration: IEC 68-2-36 *Shock: IEC 68-2-29 *Drop: IEC 68-2-32 *Flammability: UL94V-0 Technical Specifications *Wall-mount or desktop *All units come with wall /19 in rack-mount brackets Standards and Compliance *IEEE 802.3 CSMA/CD IEEE 802.3i 10T *IEEE 802.3u 100TX *IEEE 802.3z 1000SX/LX *IEEE 802.3z/ab 1000T *IEEE 802.3x Flow control *IEEE 802.1p Prioritization (four queues) *IEEE 802.1x Authentication *IEEE 802.1x Local authentication server (MD5) *IEEE 802.1x Remote authentication through RADIUS *IEEE 802.1x Dynamic VLAN assignment *IEEE 802.1x MAC-based authentication *IEEE 802.1x RADIUS *IEEE 802.1d Bridging *IEEE 802.3ad Link aggregation *IEEE 802.3ad Port trunking and LACP *IEEE 802.1Q Tagged VLAN *IEEE 802.1d Spanning-Tree *IEEE 802.1w Rapid Spanning-Tree *IEEE 802.1s Multiple Spanning-Tree Electrical/Mechanical Approvals *UL60950-1 2nd edition (UL) *FCC/EN55022/CISPR 22 Class A *VCCI Class A *C-Tick *EN60950 (TUV) *EN55024 *CE Mark *CSA / cUL
