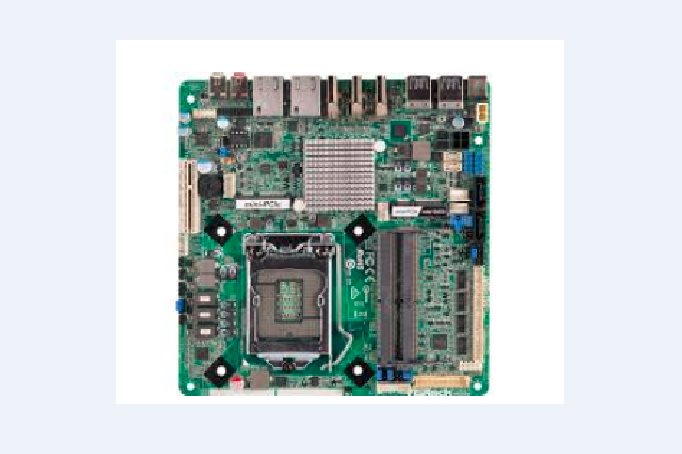

ASRock IMB-190, 1151, 2x DDR4, GLAN, SATA3, USB3.0, HDMI, Mini-ITX
ASRock IMB-190, 1151, 2x DDR4, GLAN, SATA3, USB3.0, HDMI, Mini-ITX
BLACK FRIDAY
| Výrobca |
ASRock |
|
|---|---|---|
| Kód | ITK383586 | |
| Part No. | IMB-190 | |
Záruka koncový zákazník: 36 Mesiacov
Záruka firma: 36 Mesiacov
Výrobca:
Kód: ITK383586
Part No.: IMB-190
Záruka firma: 36 Mesiacov
Výrobca:
ASRock
Kód: ITK383586
Part No.: IMB-190
ASRock IMB-190, 1151, 2x DDR4, GLAN, SATA3, USB3.0, HDMI, Mini-ITX
Obchod si vyhradzuje právo na zmenu ceny až po potvrdenie objednávky. Obrázok má len ilustračný charakter.
Diskusia (0)
- +Akcia
- +JARNÉ POMÔCKY
- +PC, NOTEBOOKY
- +MOBILY, TABLETY, HODINKY
- +PC KOMPONENTY
- +PERIFÉRIE
- +HERNÁ ZÓNA
- +ČIERNA TECHNIKA
- +MALÁ BIELA TECHNIKA
- +VEĽKÁ BIELA TECHNIKA
- +SOFTWARE, E-KNIHY
- +MICROSOFT SOFTVÉR
- +ŠPORT, ZDRAVIE
- +ZÁHRADA, HOBBY
- +NÁBYTOK
- +FOTOVOLTAIKA
Naposledy navštívené
| Kód | Názov produktu | Vaša cena |
|---|
Podrobnosti o produkte
Popis produktu:
Form Factor
Dimensions
- Mini-ITX (6.7-in x 6.7-in)
Processor System
CPU
- Socket LGA1151 for Intel® Core i7/i5/i3/Celeron(Skylake-S)
Core Number
- (By CPU, Max 4)
Max Speed
- (By CPU)
L3 Cache
- (By CPU)
Chipset
- Q170
BIOS
- UEFI
Expansion Slot
PCIe
- 1 x PCIe x4 slot
Mini-PCIe
- 2 x Mini-PCIe (1 x full size colay with mSATA, 1 x half size, both with USB signal)
mSATA
- 1 (colay with full size Mini-PCIe)
Memory
Technology
- Dual Channel DDR4 2133 MHz SDRAM
Max.
- 32G
Socket
- 2 x SO-DIMM
Graphics
Controller
- Intel® Gen9 Intel® Graphics DX 11/12, OGL4.3/4.4
VRAM
- Shared Memory
VGA
- Supports max. resolution 1920 x 1200
DVI
- No
LVDS
- Dual channel 24-bit co-lay with eDP, max resolution 1920 x 1200@60Hz
HDMI
- HDMI1: Supports HDMI, max resolution 4096 x 2160@60Hz
- HDMI2, 3: Supports HDMI, max resolution 4096 x 2160@30Hz
DisplayPort
- No
MultiDisplay
- Yes (Triple Display)
Ethernet
Ethernet
- 10/100/1000 Mbps
Controller
- 1 x Intel® i210 , 1 x Intel® i219LM
Connector
- 2 x RJ45
Storage
Max Data Transfer Rate
- SATA3 (6.0Gb/s), Supports RAID 0/1/5/10
Rear I/O
VGA
- 0
DVI
- 0
HDMI
- 3
DisplayPort
- 0
Ethernet
- 2
USB
- 4 x USB 3.0
Audio
- 2 (Mic-in, Line-out)
Serial
- 0
eSATA
- 0
PS2
- 0
Expansion
,
Internal Connector
USB
- 4 ( 2 x 2.54 pitch header USB 2.0 compliant)
LVDS / inverter
- 1/1
VGA
- 1
Serial
- 4 x RS-232 (COM1, 2 support RS-232/422/485)
SATA
- 2 x SATA3 (6.0Gb/s), Supports RAID 0/1/5/10
mPCIe
- 2
Parallel
- 0
mSATA
- 1
IrDA
- 0
GPIO 8-bit
- 4 x GPI + 4 x GPO
SATA PWR Output Con
- 1
Speaker Header
- 1
Watchdog Timer
Output
- From Super I/O to drag RESETCON#
Interval
- 256 segments, 0,1,2…255sec/min
Power Requirements
Input PWR
- 12V or 19~24V DC-in (DC Jack or 4-pin ATX PWR Con)
Power On
AT/ATX Supported
- AT : Directly PWR on as power input ready
- ATX : Press button to PWR on after power input ready
Environment
Temperature
- 0oC – 60oC
