Popis produktu:

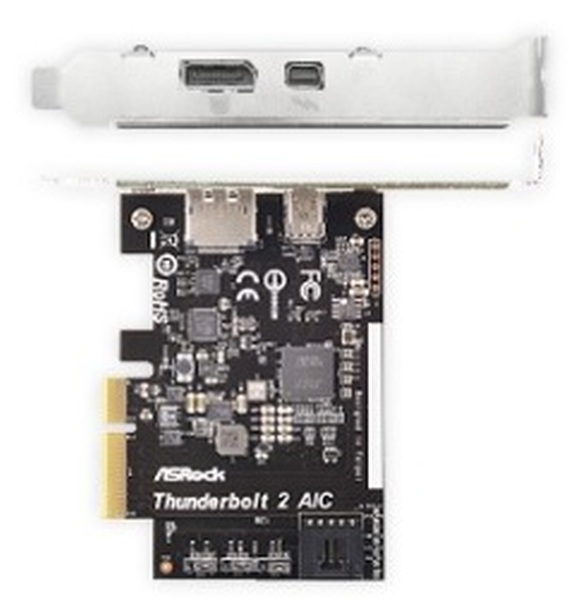

Thunderbolt™ 2 Ready

The Thunderbolt™ 2 AIC may be connected to the 5-pin Thunderbolt™ AIC header on your motherboard for Thunderbolt™ 2 technology. The mini DisplayPort supports up to six daisy chained Thunderbolt™ devices with data transfer rates at 20Gbps.


ASRock Thunderbolt™ Technology Expert

Up to 20 Gbps : The fastest connection to your PC
Bi-directional data transfer with PCI Express and DisplayPort
Daisy Chain : Up to 6 Thunderbolt™ devices
Large, high-resolution displays (Supports 4K)

Specifications

General
Platform - Dimensions: 3.8-in x 4.7-in
Chipset - Intel® DSL5320 Thunderbolt™ 2 Controller
External Connectors - 1 x Thunderbolt™ 2 Port (with up to 20Gbps bandwidth)
* Supports daisy-chaining of up to six Thunderbolt™ devices
- 1 x DisplayPort 1.2 IN Port
- 1 x TBT Header
Interface - PCI Express 2.0 x4 interface
Graphics - Supports Thunderbolt™ interface with max. resolution of 4K x 2K (4096 x 2160) @ 24Hz / 4K x 2K (3840 x 2160) @ 60Hz
- DisplayPort 1.2 Multi-Stream Transport compliant; supports daisy-chaining of multiple DisplayPort 1.2 monitors
Data Rate - Supports 20Gbps bi-directional bandwidth per channel with Thunderbolt™ 2 port
OS - Microsoft® Windows® 8.1 32-bit / 8.1 64-bit / 8 32-bit / 8 64-bit / 7 32-bit / 7 64-bit
Accessories - Quick Installation Guide, Support CD
- 1 x TBT Header Cable
- 1 x DisplayPort Cable

The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.
