Popis produktu:

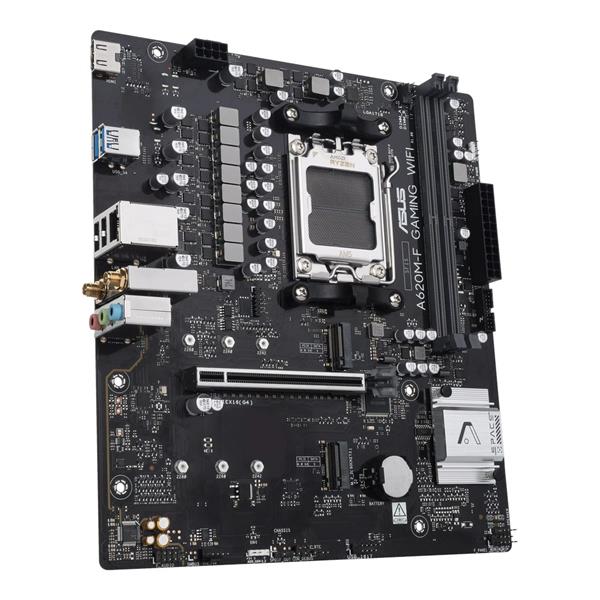

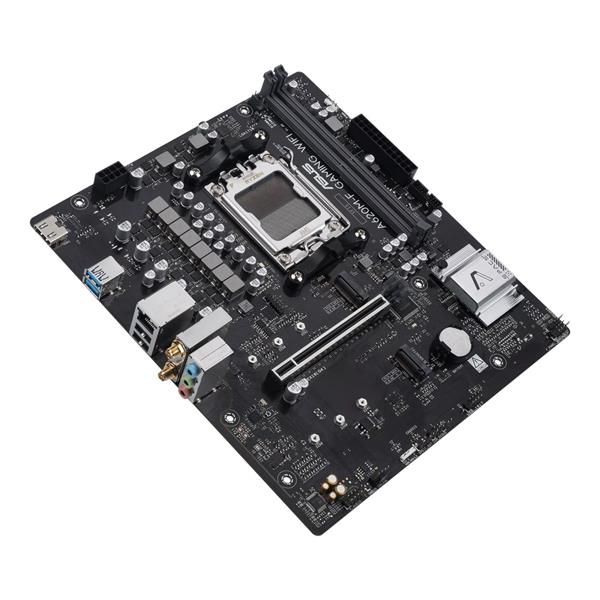

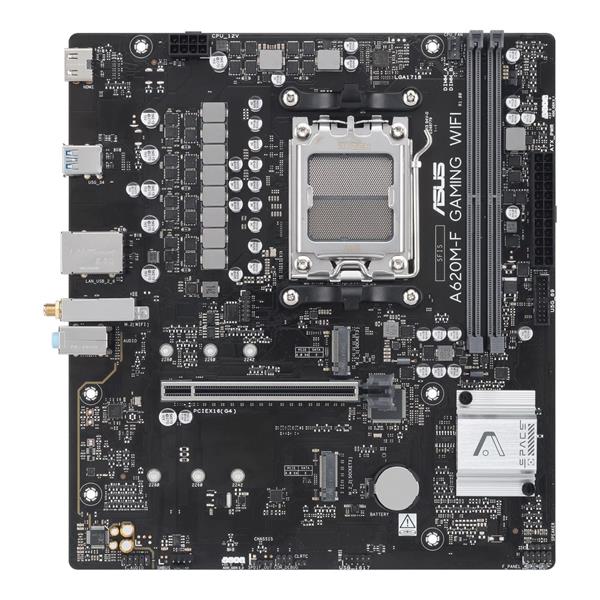

Základná doska AMD A620 (Ryzen AM5) formátu mATX s DDR5, podporou PCIe 4.0, dvoma slotmi M.2, HDMI™, Realtek 2,5Gb Ethernet, Wi-Fi 6, zadnými portami USB 5Gb/s, Aura Sync
Pripravená na pokročilé AI PC: Je navrhnutá pre budúce AI výpočty vďaka výkonu a konektivite, ktoré sú potrebné pre náročné AI aplikácie.
Pätica AM5 pre desktopové procesory AMD Ryzen™
Ultrarýchle možnosti pripojenia: PCIe 4.0, 64Gb/s, sloty M.2, Realtek 2,5Gb Ethernet, Wi-Fi 6, zadné porty USB 5Gb/s, predné USB 5Gb/s Type-A
Komplexné chladenie:  Chladič PCH, headery hybridného ventilátora a Fan Xpert 2+
ASUS OptiMem II: Dôkladné vedenie spojov a priechodných otvorov, spolu s optimalizáciou uzemnenia, zachovávajú lepšiu integritu signálu, čo zlepšuje pretaktovanie pamäte.
Osvetlenie Aura Sync RGB: Integrované headery Gen 2 pre adresovateľné RGB LED pásky, ľahko synchronizovateľné s hardvérom podporujúcim Aura Sync

Model
A620M-F GAMING WIFI
CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
Supports up to AMD 120W CPU
* Refer to www.asus.com for CPU support list.

Chipset
AMD A620 Chipset

Pamäť
2 x DIMM slots, max. 128GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800, ECC and Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO™)
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Grafika
1 x HDMI™ port*
* Supports 4K@60Hz as specified in HDMI 2.1.

Rozširujúce sloty
AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
1 x PCIe 4.0 x16 slot
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Úložisko
Supports 2 x M.2 slots*
AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*
M.2_1 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/ 2260/ 2280 (supports PCIe 4.0 x4 mode)
*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/5/10. RAID 5 Function is only supported by AMD Ryzen™ 9000 series CPU.

Ethernet
1 x Realtek RTL8125D 2.5Gb

Bezdrôtové pripojenie a Bluetooth
Wi-Fi 6
1x1 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.3

USB
Rear USB (Total 4 ports)
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 4 ports)
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports

Audio
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

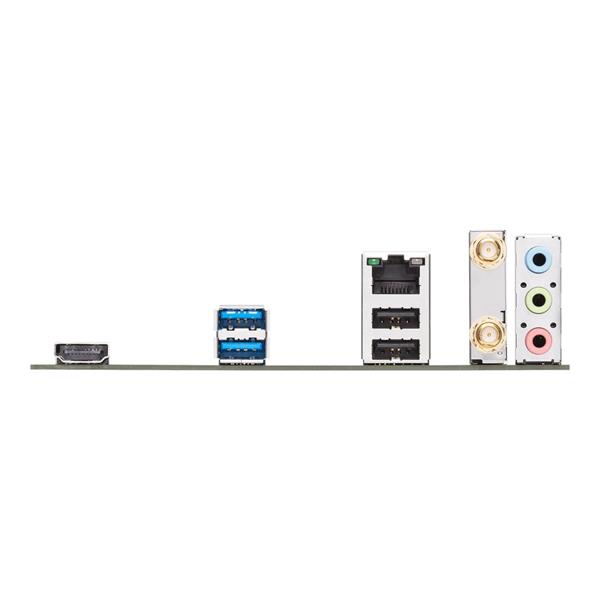

Porty na zadnom paneli
2 x USB 3.2 Gen 1 (5G) ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI™ port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks

Vnútorné konektory
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage Related
2 x M.2 slots (Key M)
USB
1 x USB 3.2 Gen 1 (5G) header supports 2 additional USB 3.2 Gen 1 ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
2 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x Speaker header
1 x 10-1 pin System Panel header

Špeciálne funkcie
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot Core+
- Stainless-steel back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
Aura Sync
- Addressable Gen 2 headers

Softvérové funkcie
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Správa
WOL by PME, PXE

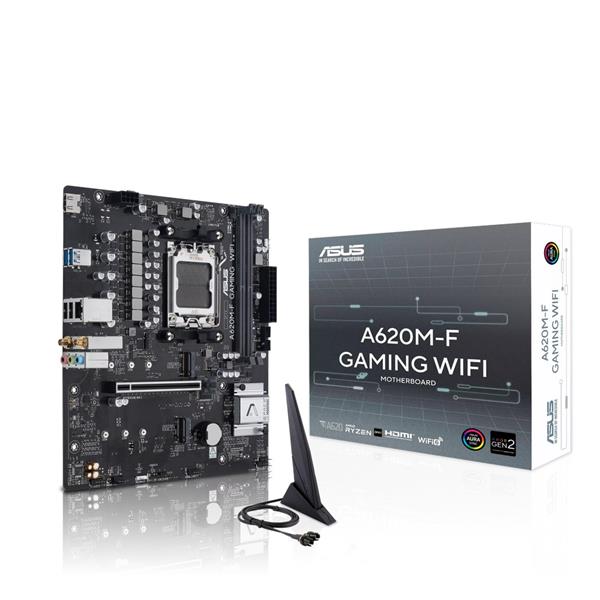

Príslušenstvo
Miscellaneous

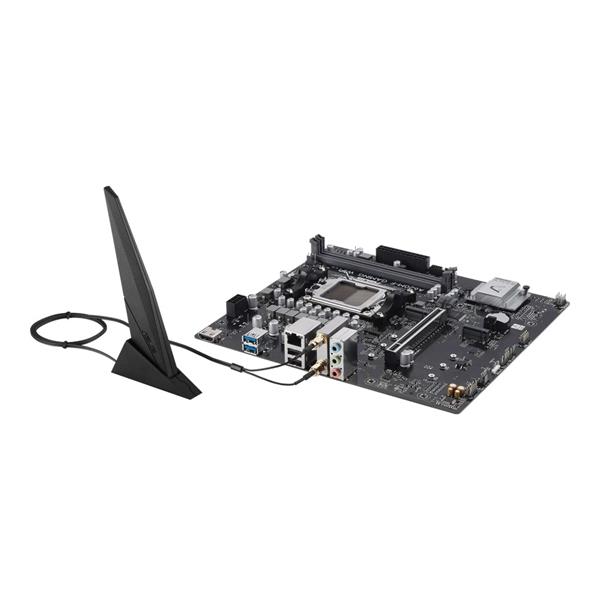

1 x ASUS Wi-Fi moving antenna
1 x I/O Shield
1 x Screw package for M.2 SSD
Documentation
1 x Quick start guide

Operačný systém
Windows® 11, Windows® 10 64-bit

Formát ATX
9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )
