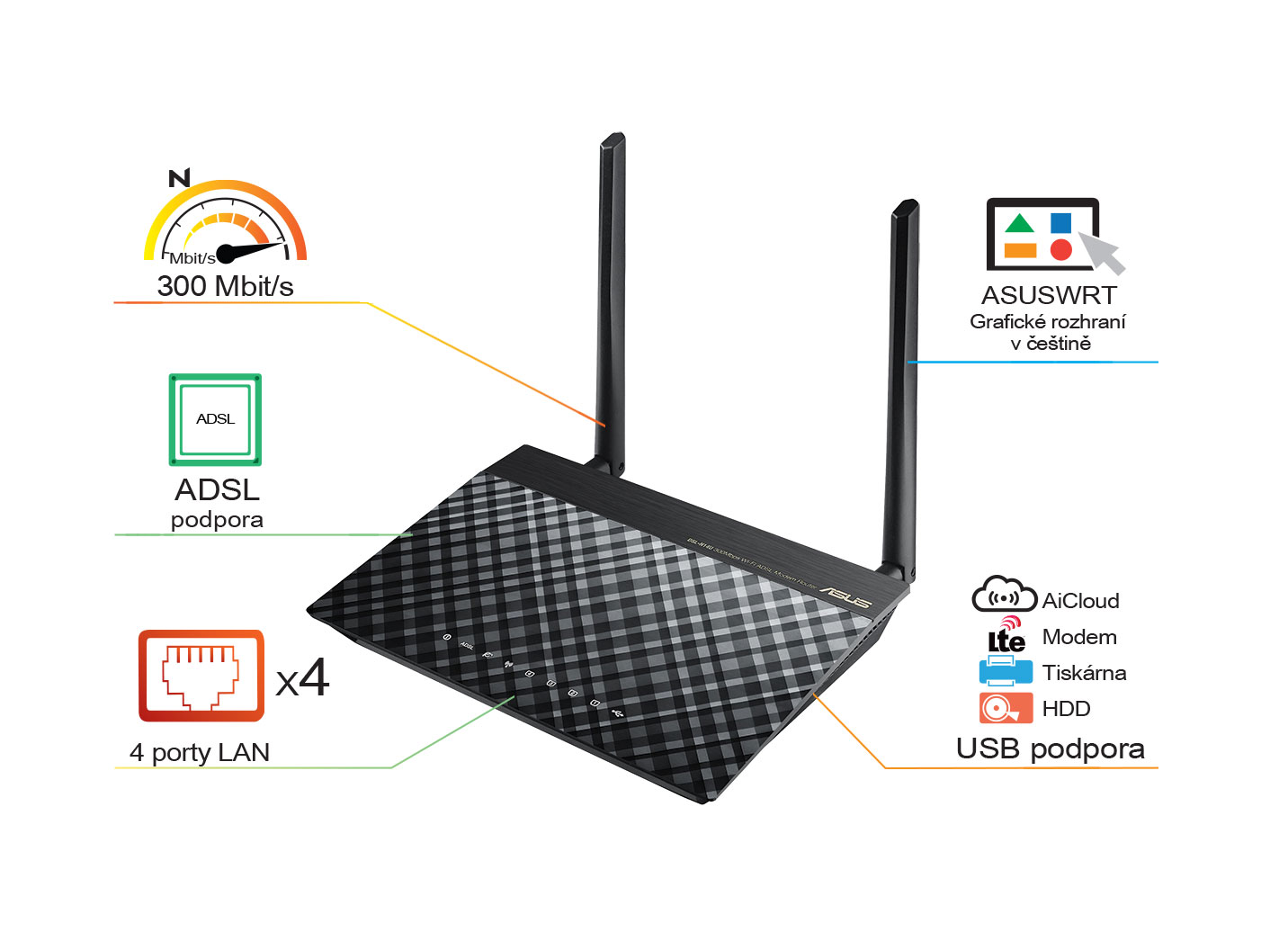

ASUS DSL-N14U Wireless ADSL modem router with wide coverage, multiple SSID and USB applications Wireless ADSL 2/2+ Modem N Router 802.11n, 300 Mbps 4 10/100 Ports, 4 SSID, 5dBi Detachable Antenna x 2 OVERVIEW The ASUS DSL-N14U ADSL modem router has Wi-Fi speeds up to 300Mbit/s. It replaces the ADSL modem from your internet service provider, saving space and reducing clutter. With easy, CD-free installation and reliable data transmission, DSL-N14U is a complete wireless solution for ADSL users, and also features a multifunctional USB 2.0 port. • Dual-purpose 300 Mbps wireless ADSL Modem Router • USB port for network print server, file sharing, Download Master and media server • ASUSWRT Dashboard for easy 30-second setup and advanced network control via an intuitive graphical interface • PPTP server for secure VPN data transmission • ASUS AiCloud allows you to access, sync, share and stream data from your home network to any internet-connected PC, Android or iOS device SPECIFICATIONS Network Standard • IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IPv4, IPv6 Product Segment • N300 complete networking; 300Mbps Wi-Fi Data Rate • 802.11b : 1, 2, 5.5, 11Mbps • 802.11g : 6,9,12,18,24,36,48,54Mbps • 802.11n : up to 300Mbps xDSL Data Rate • ANSI T1.413i2 • ITU G.922.1(G.dmt).ITU G.922.2 (G.lite) • ITU G.922.3 ADSL2(G.dmt.bis) • ITU G.922.4(G.lite.bis) • ITU G.922.5(G.dmt.bisplus) • ADSL/ADSL2/ADSL2+ multimode AnnexA,AnnexB compliant • ADSL 2/2+ 24Mbps downstream • Support Annex A/B/I/J/L/M Antenna • Detachable 5 dBi antenna x 2 LED Indicator • Power, ADSL, Internet, WLAN, LAN x 4, USB x 1 Button • WPS Button, Reset Button, Power Button, Wireless on/off Button Ports • 1 x RJ11 for ADSL • 4 x RJ45 10/100 BaseT for LAN USB Ports • USB 2.0 x 1 USB Applications • Printer Server • FTP Server • Download Master Operating Frequency • 2.4GHz Router Special Features • AiCloud, Printer server, Download Master, AiDisK, Multiple SSIDs, Parental Control Operation Channel • 13 Europe (ETSI) Memory • 64MB DDR / 16MB Flash Security • 64-bit WEP, 128-bit WEP, WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , Radius with 802.1x, WPS support Firewall & Access Control • NAT and SPI (Stateful Packet Inspection) Firewall - enable/disable WAN ping - allow access from WAN - log of accepted and dropped • Filtering: - Single Port and Port Range - URL based - MAC Address - DoS protection Management • Web-based GUI configuration • Firmware upgraded, configuration data uploaded and downloaded via Web-based GUI • Auto VPI/VCI detection • Configuration backup and restore • Diagnostics • Log & Trace function Utilities • ADSL Setting Wizards • Device Discovery • Firmware Restoration • Printer Setup Utility VPN Support • IPSec Pass-Throuth • PPTP Pass-Through • L2TP Pass-Through • PPTP server Power Adapter • AC Input : 100 ~240 V(50~60HZ) • DC Output : 12 V/1 A Certificates • CE Dimensions • 123 x 190 x 35 mm (WxDxH) Weight • 314 g (Device Only) Environmental • Operating Temperature: -10 °C to 50 °C • Storage Temperature: -40 ° to 60 ° C • Operating Humidity: 5 % to 95 % (Non-condensing) • Storage Humidity: 5 % to 95 % (Non-condensing) OS Support • Windows® 8.1 , 32bit/64bit • Windows® 8 , 32bit/64bit • Windows® 7 , 32bit/64bit • Windows® Vista , 32bit/64bit • Windows® XP , 32bit/64bit • Mac OS X • Linux Package Content • DSL-N14U Wireless-N300 ADSL Modem Router • Power Adapter • Quick Start Guide • Support CD (user manual, Utilities) • RJ45 cable, RJ11 cable • Splitter (varies with regions)
