Popis produktu:

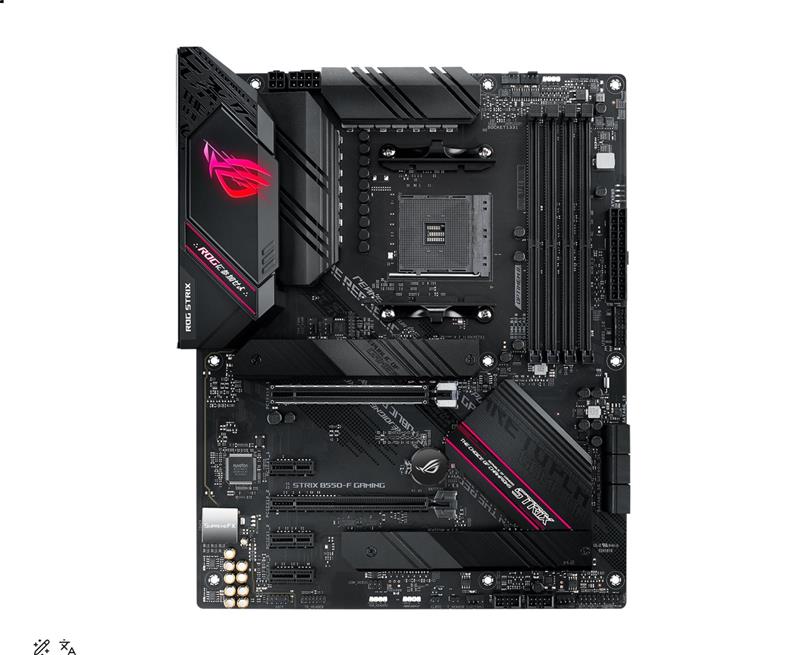

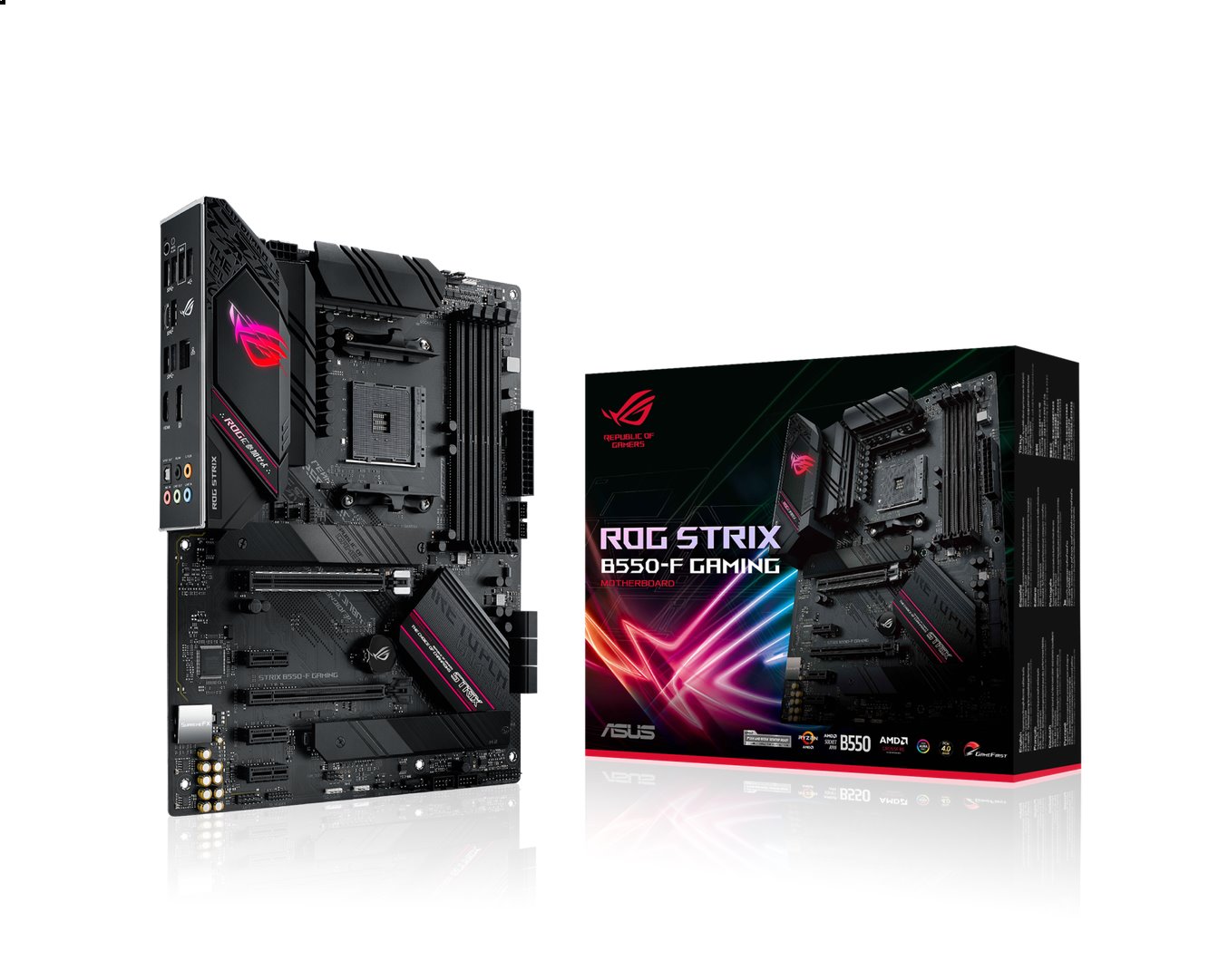

ROG Strix B550 Gaming series motherboards offer a feature-set usually found in the higher-end ROG Strix X570 Gaming series, including the latest PCIe® 4.0. With robust power delivery and effective cooling, ROG Strix B550 Gaming is well-equipped to handle 3rd Gen AMD Ryzen™ CPUs. Boasting futuristic aesthetics and intuitive ROG software, ROG Strix B550-F Gaming gives you a head start on your dream build. This platform delivers the power and connectivity that advanced AI PC applications demand.


CPU
*Refer to www.asus.com for the AMD CPU support list.
Memory

3rd Gen AMD Ryzen™ Processors


4 x DIMM, Max. 128GB, 4400(O.C)/4266(O.C)/4133(O.C)/4000(O.C)/3866(O.C)/3600(O.C)/3466(O.C.)/3200/3000/2800/2666/2400/2133 MHz, Un-buffered Memory*


Dual channel memory architecture


OptiMem II


*ECC memory(ECC mode) support varies by CPU.


*Refer to www.asus.com for the Memory QVL (Qualified Vendors List).
Graphics

1 x DisplayPort 1.2


1 x HDMITM 2.1 (4K@60HZ)


*Graphics specifications may vary between CPU types.
Expansion Slots

AMD Ryzen™ 5000 and 3000 Series/ 5000 and 4000 G-Series Desktop Processors


1 x PCIe 4.0 x16 SafeSlot (supports x16 mode)


AMD B550 chipset


1 x PCIe 3.0 x16 slot (supports x4 mode)*


3 x PCIe 3.0 x1


*Share bandwidth with PCIe3.0 x1_1, PCIe3.0 x1_2, PCIe3.0 x1_3
Multi-GPU Support
3rd and 2nd Gen AMD Ryzen™ Processors
Supports NVIDIA® 2-Way SLI® Technology
Supports AMD 3-Way CrossFireX™ Technology
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics Processors
Supports AMD 2-Way CrossFireX™ Technology
Storage

AMD Ryzen™ 5000 and 3000 Series/ 5000 and 4000 G-Series Desktop Processors


M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)


AMD B550 Chipset:


M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*


6 x SATA 6Gb/s ports


Support RAID 0, 1, 10


* When the M.2_2 Socket 3 is populated , SATA6G_5/6 ports will be disabled.
Ethernet
1 x Intel® 2.5Gb Ethernet
ASUS LANGuard
USB
Rear USB: Total 8 ports

2 x USB 3.2 Gen 2 port(s) (1 x Type-A + 1 x Type-C®)


4 x USB 3.2 Gen 1 port(s) (4 x Type-A)


2 x USB 2.0 port(s)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports


2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
Audio

ROG SupremeFX 7.1-Channel High Definition Audio CODEC S1220A


- Impedance sense for front and rear headphone outputs


- Jack-detection, Multi-streaming, Front Panel Jack-retasking


- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input


- Supports up to 32-Bit/192kHz playback*


Audio Features


- SupremeFX Shielding Technology


- Dual OP Amplifiers


- Premium audio capacitors


- Audio cover


* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 8-Channel audio.

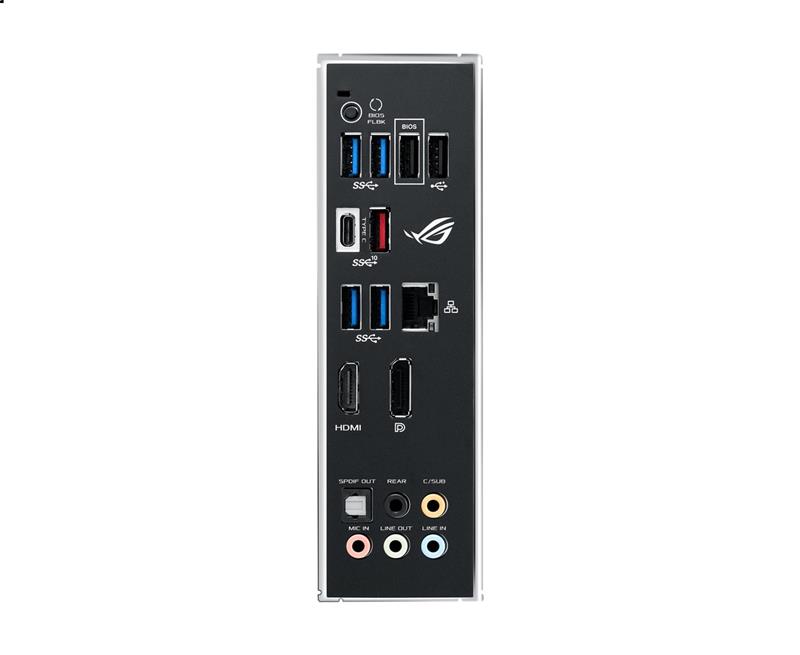

Back Panel I/O Ports

5 x Audio jacks
1 x Optical S/PDIF out
1 x BIOS FlashBackTM button
1 x DisplayPort
1 x HDMITM port
1 x Intel
® I225-V 2.5G Ethernet
2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)
4 x USB 3.2 Gen 1 port(s)
2 x USB 2.0 port(s)
Internal I/O Connectors

Fan and cooling related


1 x 4-Pin AIO_Pump header


1 x 4-Pin CPU fan header


1 x 4-Pin CPU_OPT fan header


3 x 4-Pin Chassis fan headers


Power related


1 x 24-pin main power connector


1 x 8-pin +12V power connector


1 x 4-pin +12V power connector


Storage related


2 x M.2 slots (Key M)


6 x SATA 6Gb/s ports


USB ports


1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports


2 x USB 2.0 headers support additional 4 USB 2.0 ports


Miscellaneous


1 x AURA addressable Gen 2 header


2 x AURA RGB headers


1 x Clear CMOS header


1 x Front panel audio header (AAFP)


1 x 20-3 pin System Panel header


1 x Thermal sensor header


1 x Thunderbolt header
Special Features

Aura Sync


- Standard RGB header(s)


- Addressable Gen 2 RGB header(s)


ASUS Q-Design


- ASUS Q-DIMM


- ASUS Q-LED (DRAM [yellow],CPU [red], VGA [white], Boot Device [yellow green)


- ASUS Q-Slot


ASUS Thermal Solution


- Aluminum M.2 heatsink


ASUS EZ DIY


- BIOS Flashback™ button


- BIOS FlashBack™ LED


- Clear CMOS header


- Procool


- Pre-mounted I/O shield


- SafeSlot
Software Features

ROG Exclusive Software


- RAMCache III


- ROG CPU-Z


- GameFirst VI


- Sonic Studio III + Sonic Studio Virtual Mixer


- Sonic Radar III


- DTS® Sound Unbound


- Overwolf


- Anti-virus software


ASUS Exclusive Software Features


Armoury Crate


- Aura Creator


- Aura Sync


- AI Noise Cancelling Microphone


AI Suite 3:


- PPSU


EPU


DIGI+ VRM


Fan Xpert 4


TurboV EVO


- EZ update


WinRAR


UEFI BIOS


ASUS EZ DIY


- ASUS CrashFree BIOS 3


- ASUS EZ Flash 3


- ASUS UEFI BIOS EZ Mode
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE

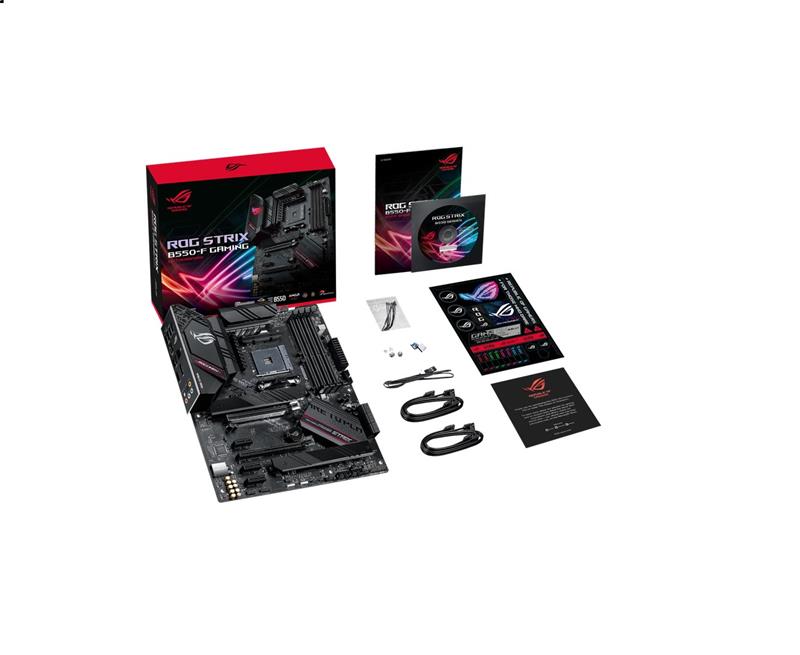

Accessories

Cables


1 x Addressable RGB extension cable


4 x SATA 6Gb/s cables


Miscellaneous


1 x Cable ties pack


1 x M.2 Rubber Package


1 x M.2 SSD screw package


1 x ROG STRIX sticker


1 x ROG STRIX thank you card


Installation Media


1 x Supporting DVD


Documentation


1 x User manual
Operating System
Windows 10 64bit
Windows® 10 64-bit, Windows® 11 64-bit
Form Factor
ATX
30.5cm x 24.4cm
