Popis produktu:

AMD B550 (Ryzen AM4) ATX gaming motherboard with PCIe 4.0, dual M.2, 10 DrMOS power stages, Wi-Fi 6, 2.5 Gb Ethernet, HDMI, DisplayPort, SATA 6 Gbps, USB 3.2 Gen 2 Type-A and Type-C, Thunderbolt™ 3 header, and Aura Sync RGB lighting support

   Ready for Advanced AI PC: Designed for the future of AI computing, with the power and connectivity needed for demanding AI applications
   AMD AM4 socket: Ready for Ryzen™ 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors
   Enhanced power solution: 8+2 DrMOS power stages, ProCool sockets, military-grade TUF components, and Digi+ VRM for maximum durability
   Comprehensive cooling: VRM heatsink, PCH fanless heatsink, Dual M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
   Next-gen connectivity: PCIe 4.0 M.2, USB 3.2 Gen 2 Type-A and Type-C, Thunderbolt™ 3 header support
   Made for online gaming: Wi-Fi 6, 2.5 Gb Ethernet, and TUF LANGuard
   AI noise-canceling microphone: provides crystal-clear in-game voice communication

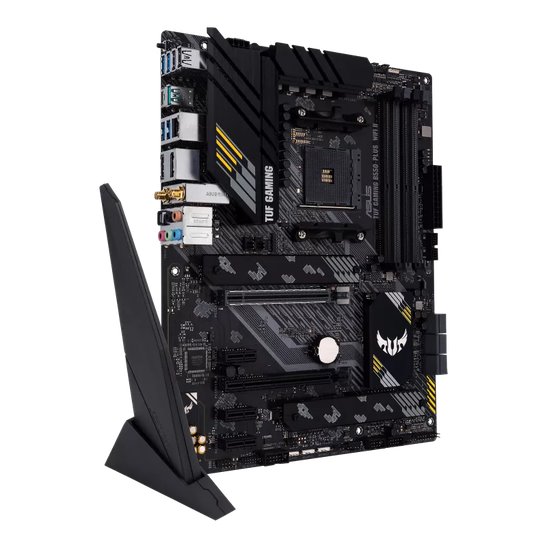

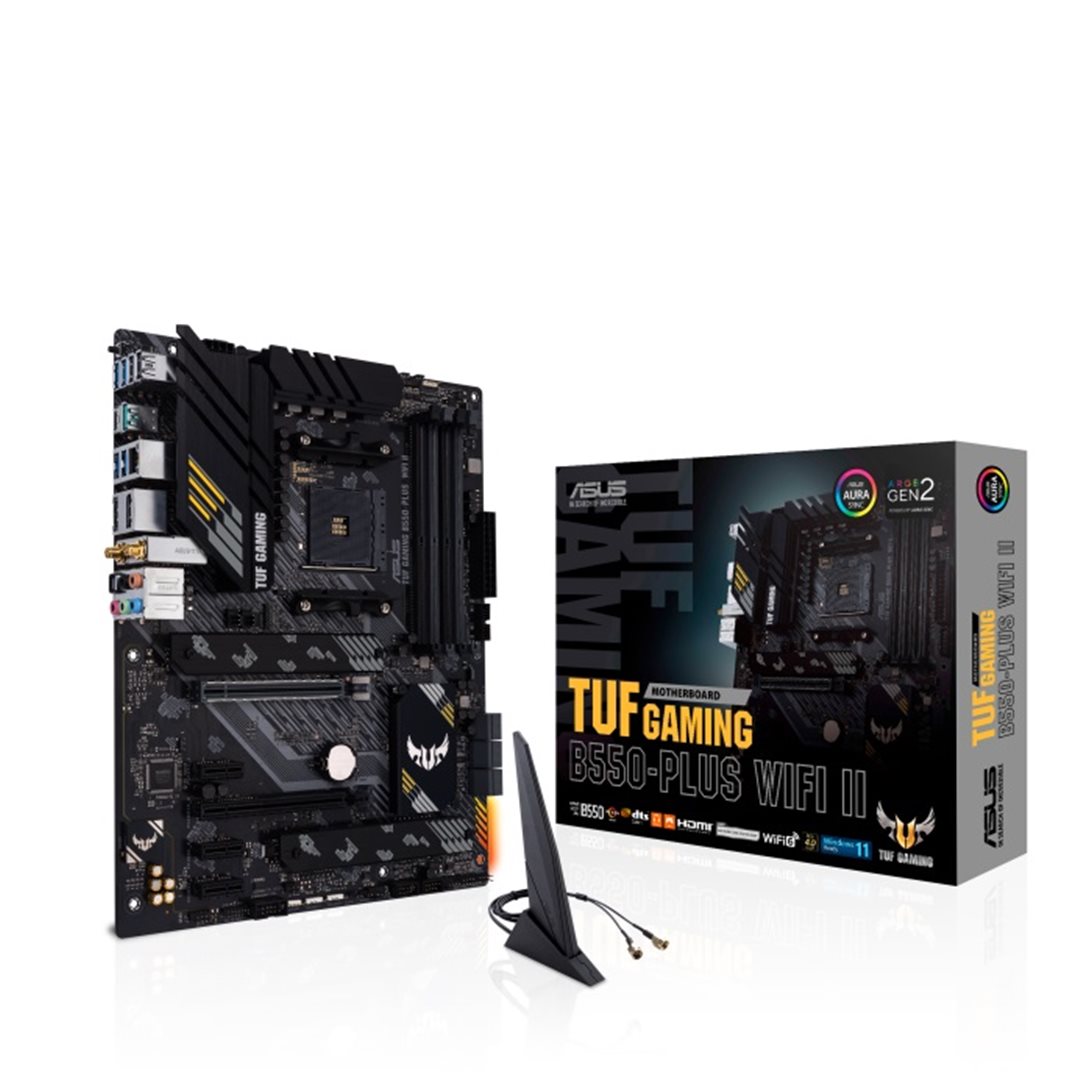

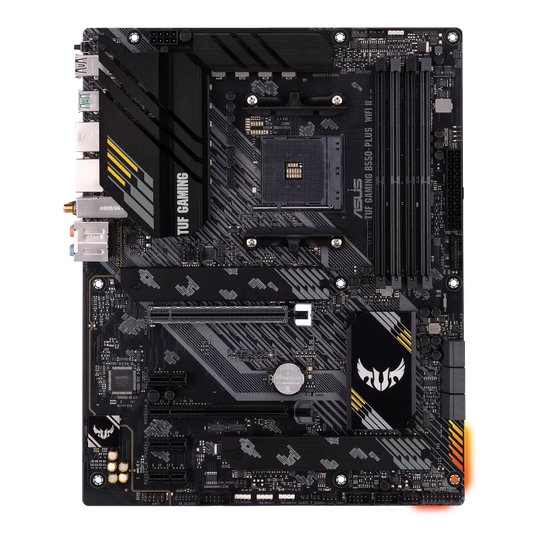

TUF GAMING B550-PLUS WIFI II
CPU

*Refer to www.asus.com for CPU support list.
Memory

4 x DIMM, Max. 128GB, DDR4 4866(OC)/4800(OC)/4600(OC)/4466(OC)/4400(OC)/4333(OC)/4266(OC)/4200(OC)/4133(OC)/4000(OC)/3866(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 MHz, Un-buffered Memory*

Dual Channel Memory Architecture

* ECC Memory (ECC mode) support varies by CPU.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Graphics

1 x DisplayPort 1.2

1 x HDMITM 2.1(4K@60HZ)
*Graphics specifications may vary between CPU types.

Expansion Slots

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors

1 x PCIe 4.0 x16 slot (supports x16 mode)

AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors

1 x PCIe 3.0 x16 slot (supports x16 mode)

AMD B550 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)*

3 x PCIe 3.0 x1 slot*

*PCIE 3.0 X16_2 runs x1 mode when any of the PCIe 3.0 x1 slots is occupied.
**Support PCIe bifurcation for RAID on CPU function.

Storage

AMD Ryzen™ 5000 Series/ 3000 Series Desktop Processors :

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)

AMD Ryzen™ 5000 G-Series/ 4000 G-Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)

AMD B550 Chipset

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*

6 x SATA 6Gb/s ports

Support Raid 0, 1, 10
*M2_2 shares bandwidth with SATA6G_56. When M.2_2 is populated, SATA6G_56 will be disabled.

Wireless & Bluetooth

2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax)

Supports 2.4/5GHz frequency band

Bluetooth v5.2*
*Bluetooth v5.2 function will be ready in Windows 11 or later.

USB

Rear USB:Total 8 ports,

2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)

4 x USB 3.2 Gen 1 ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio Cover

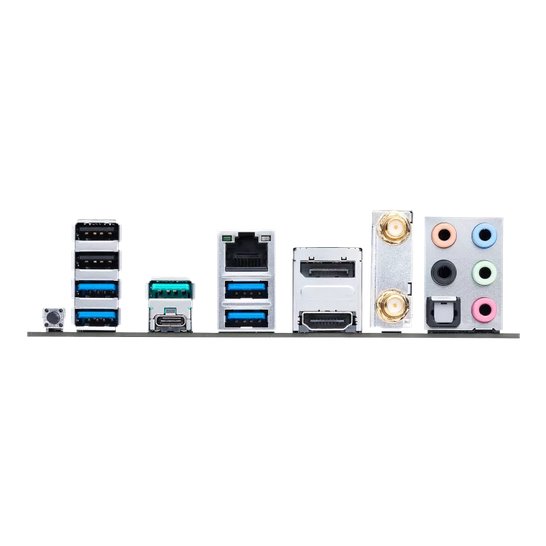

Back Panel I/O Ports

2 x USB 3.2 Gen 2 ports (1 x Type-A + 1 x USB Type-C®)

4 x USB 3.2 Gen 1 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x HDMI™ port

1 x ASUS Wi-Fi Module

1 x Realtek 2.5Gb Ethernet port

5 x Audio jacks

1 x Optical S/PDIF out port
1 x BIOS FlashBack™ button

Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

1 x 4-pin AIO Pump header(s)

3 x 4-pin Chassis Fan header(s)

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports

Miscellaneous

2 x AURA Addressable Gen 2 header(s)

2 x AURA RGB header(s)

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header

1 x Thermal Sensor header
1 x Thunderbolt header

Special Features

ASUS TUF PROTECTION

- ASUS DIGI+ VRM (Digital power design with Dr. MOS)

- ASUS Enhanced DRAM Overcurrent Protection

- ASUS ESD Guards

- TUF LANGuard

- ASUS Overvoltage Protection

- ASUS SafeSlot

- ASUS Stainless-Steel Back I/O

ASUS Q-Design

- ASUS Q-DIMM

- ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- ASUS Q-Slot

ASUS Thermal Solution

- Aluminum M.2 heatsink

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

- Procool

AURA Sync

- AURA RGB header(s)
- Addressable Gen 2 RGB header(s)

Software Features

ASUS Exclusive Software

Armoury Crate

- Aura Sync

- Two-Way AI Noise Cancelation

AI Suite 3

- Performance And Power Saving Utility

TurboV EVO

EPU

Digi+ VRM

Fan Xpert 4

PC Cleaner

- EZ update

- System Information

Aura Creator

TUF GAMING CPU-Z

DTS Custom for GAMING Headsets

Norton Anti-virus software (Free Trial for 60 days)

WinRAR

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode

BIOS

256 Mb Flash ROM, UEFI AMI BIOS
Operating System

Windows 10 64bit
Form Factor

ATX, 30.5cm x 24.4cm
