Popis produktu:

Extends video, audio, USB, and RS-232 signals via a single Cat6 / 6a / ATEN 2L-2910 Cat 6 cable
Long distance with superior video quality – up to 1920 x 1200 @ 100m (Cat6 / 6a cable / ATEN 2L-2910 Cat 6 cable)
USB 2.0 high speed ports – ensures fast transmission speeds for peripherals
Supports individual 2-channel stereo audio for high-quality audio applications

The ATEN CE611 is a USB DVI HDBaseT™ KVM Extender that integrates the latest HDBaseT™ technologies to transmit 1920 x 1200 DVI video, stereo audio, USB, and RS-232 signals up to 100 meters using a single Cat6 / 6a cable / ATEN 2L-2910 Cat 6 cable. This cost-effective extender comes with a small form factor design that includes DVI/audio interfaces, USB 2.0 full-speed ports, and serial console to fulfill most of extended KVM control and console demands. With an easy cable installation that supports various signals, the CE611 is ideal for applications where convenient remote access is required, such as transportation control centers, medical facilities, industrial warehouses, and extended workstations.

Features:

Supports HDBaseT™ technology
• Extends video, audio, USB, and RS-232 signals via a single Cat6 / 6a / ATEN 2L-2910 Cat 6 cable
• Enhanced bit error detection and correction to resist signal interference during high-quality video transmissions
• Status detection and LED indication for HDBaseT™ signal transmission
Long distance with superior video quality – up to 1920 x 1200 @ 100m (Cat6 / 6a cable / ATEN 2L-2910 Cat 6 cable)
USB 2.0 full speed ports – ensures fast transmission speeds for peripherals
Supports individual 2-channel stereo audio for high-quality audio applications
Built-in 8KV / 15KV ESD protection (contact voltage 8KV; air voltage 15KV)

Package Contents

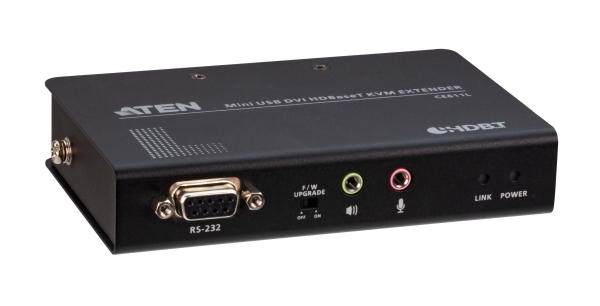

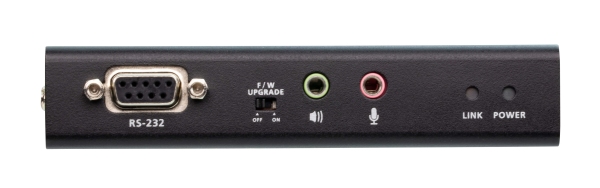

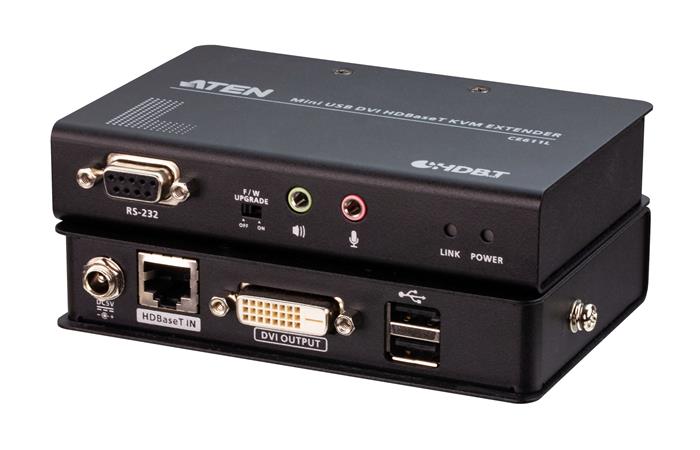

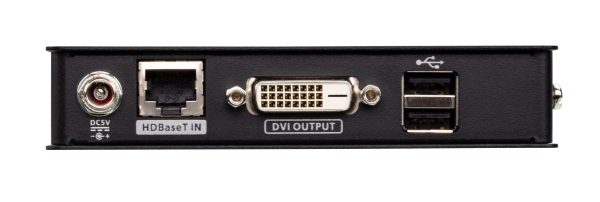

1x CE611L Mini USB DVI HDBaseT KVM Extender (Local Unit)

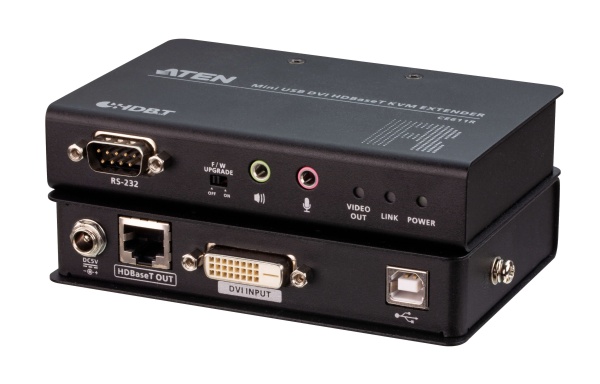

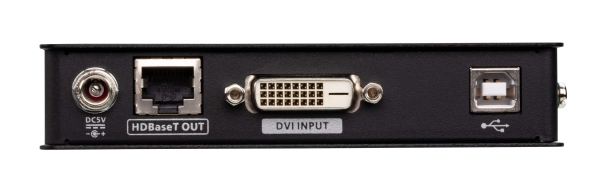

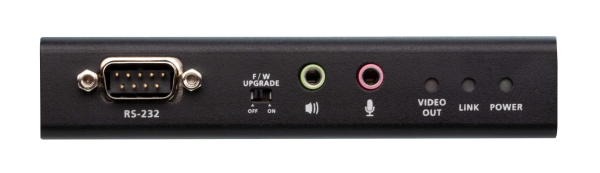

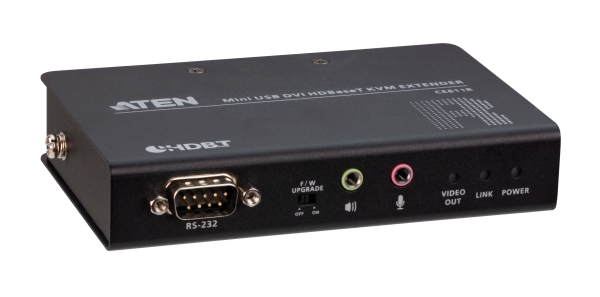

1x CE611R Mini USB DVI HDBaseT KVM Extender (Remote Unit)
2x Power Adapters
1x User Instructions
