Popis produktu:

FULL HD ovládací konzole do 19" racku (1U) s VGA/DVI/HDMI - klávesnice (105 kláves) , 17,3" LCD (1920x1080), touchpad, možnost připojit druhou konzoli (VGA/DVI/HDMI), podpora pro audio

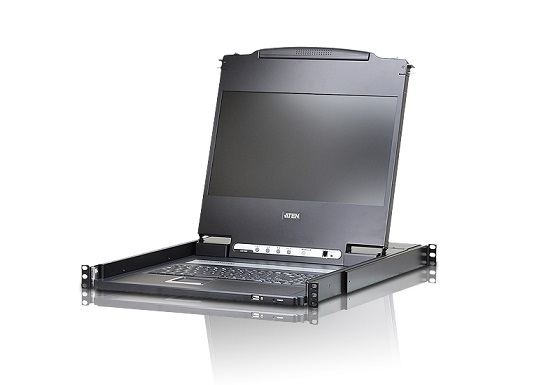

CL6700MW DVI Full HD LCD Console

CL6700MW Zoom In CL6700MW  CL6700MW
The CL6700MW DVI Full HD LCD Console is a single rail KVM console featuring a 17.3’’ LED-backlit high-definition widescreen with an integrated keyboard and touchpad in a 1U rack-mountable sliding housing. The CL6700MW’s console provides front end access to compatible KVM switches utilizing space with a module that closes fl at and slides into the rack. The single rail design allows the LCD monitor, keyboard and touchpad to operate independently of each other. Multiple video ports allow the console to connect one of three types of video sources: VGA, DVI, or HDMI - for the console and CPU connection. For added convenience, the full HD console provides two HDMI ports that allow for connecting a high-defi nition monitor to the console port, and/or an HDMI compatible switch to the KVM port.

The CL6700MW features a port for an external USB mouse on the unit’s front panel, while ports for the second KVM console (keyboard, mouse and DVI, HDMI or VGA monitor) are provided on the rear panel. Server rooms already installed with compatible DVI KVM switches will have the advantage of easy access, an additional console, and a built-in space saving sliding module, without having to purchase a KVM switch.The CL6700MW includes two mini stereo ports for connecting audio speakers


Integrated KVM console with a 17.3'' LED-backlit Widescreen Full HD LCD monitor in a single rail housing with top and bottom clearance for smooth operation in a 1U high system rack
Standard rack mount kit included – optional Easy Rack Mounting (single person installation) rack mount kit available (requires separate purchase)
Supports an external console with USB / DVI / VGA / HDMI connectors
Additional hot-pluggable USB mouse port on front panel (also functions as USB peripheral port)
Superior video quality – up to 1920 x 1080 @ 60Hz; DDC, DDC2, DDC2B
Audio support for connecting speakers
Standard 105-key keyboard; Sun keyboard emulation
Multiplatform support – Windows, Linux, Mac, and Sun
Adjustable depth to fi t within the rack
Firmware upgradeable
Console lock – enables the console drawer to remain securely locked away in position when not in use
DDC emulation – video settings of attached computers are automatically adjusted for optimal output to the monitor
Keyboard Language support: English(US); English(UK); German;German(Swiss); French; Spanish; Traditional Chinese; Japanese; Korean;Swedish; Italian; Russian; Hungarian; Greek

More information about "Easy Rack Mounting"...

Package Contents
1x CL6700MW DVI Full HD LCD Console with Standard Rack Mount Kit
1x Custom USB DVI KVM Cable Set
1x Power Cord
1x Firmware Upgrade Cable
1x User Instructions

K výrobku je k dispozici pouze manuál v angličtině (nemá český manuál).
