Popis produktu:

Receiver - video a audio extender na prodloužení VGA a zvukového signálu až na 150m přes Cat. 5

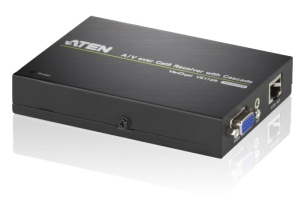

VE172R A/V Over Cat 5 Receiver is compatible with ATEN MDS Standard Plus Solution (VS1204T/VS1208T, VE170T/VE170R/VE170RQ). It can cascade up to 10 levels make long distance transmissions up to 150m.

   Uses Cat 5e cable to connect the transmitter and receiver uints
   Cascadable up to 10 levels
   Long distance transmission up to 150m
   Superior video quality – 1920x1200 @ 60Hz (30 m);1600x1200 @ 60Hz (100 m); 1280x1024@ 60Hz (150 m)
   Audio enabled (mono)
   Adjustable gain/compensation control – manually adjusts signal strength to compensate for distance
   Built-in 8KV/15KV ESD protection
   Rack-mountable
   Complies with VESA FDMI mount standard


Compatible Transmitter Units:
VE170T A/V Over Cat 5 Transmitter
VS1204T A/V Over Cat 5 Transmitter
VS1208T A/V Over Cat 5 Transmitter

Compatible Receiver Units:
VE172R A/V Over Cat 5 Receiver with Cascade
VE170R A/V Over Cat 5 Receiver
VE170RQ A/V Over Cat 5 Receiver with Deskew


Package Contents

   1x VE172R A/V Over Cat 5 Receiver with Cascade
   1x Power Adapter
   1x Mounting Kit
   1x User Instructions

K výrobku je k dispozici pouze manuál v angličtině (nemá český manuál).
