VM5808H

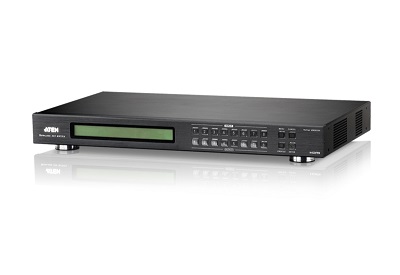

8 x 8 HDMI Matrix Switch with Scaler

VM5808H Zoom In VM5808H  VM5808H  VM5808H
The VM5808H 8 x 8 HDMI Matrix Switch is a distinct HDMI solution that offers an easy and affordable way to route any of 8 HDMI video sources to any of 8 HDMI displays, with a quick view of all port connections via the front panel LCD.

The VM5808H includes seamless switching that employs a FPGA matrix architecture that ensures continuous video streams, real-time control and stable signal transmissions. With a built in high-performance scaler, the VM5808H easily converts various input resolutions into various output display resolutions, giving viewers the best video and picture quality across all displays. The switch integrates video wall functionality with an easy to use web GUI that lets you create 16 connection profiles that can be customized into different video wall layouts.

The VM5808H is an ideal solution for applications that require multiple HDMI displays with multiple HDMI sources to be conveniently setup in multiple locations, such as for stage presentations, competitions, control centers, and installations that require real-time reports.

Connects any of 8 HDMI sources to any of 8 HDMI displays
Long Distance Transmission – supports up to 15 m (24 AWG)
HDMI (3D, Deep color); HDCP 1.4 compatible
Video Wall – provides up to 16 connection profiles that you can customize into layouts using the web GUI
Features a built in high-performance scaler for the best image quality
Easily switch between mulitple sources and multiple displays
Seamless Switch – provides continuous video streams, real-time switching and stable signal transmissions*
Built-in EDID wizard – provides an easy way to customized EDID settings
Configuration and Control via:
• Front panel LCD display and pushbuttons
• IR Remote Control
System Operation:
• Browser Graphical User Interface (GUI)
• Serial controller
• Telnet
Built-in bi-directional RS-232 serial port for high-end system control
Superior video quality – HDTV resolution of 480p, 720p, 1080i and 1080p (1920 x 1080)
Supports Dolby True HD and DTS HD Master audio
Consumer Electronics Control (CEC) support
Power On Detection – If an HDMI source is powered off the VM5808H automatically switches to the next powered-on source
Supports IR signals for remote control
Firmware Upgradeable
Rack Mountable

* If Seamless Switching is enabled, the video output will not display 3D, Deep Color or interlace (i.e., 1080i) resolutions. To make these features available, you must disable Seamless Switching

Connectors HDMI In 8 x HDMI Type A Female (Black)
HDMI Out 8 x HDMI Type A Female (Black)
Ethernet 1 x RJ-45 Female
RS-232 1 x DB-9 Female (Black)
IR Input Port 1 x Mini Stereo Jack Female (Black)
Power 1 x 3-prong AC Socket
LCD 1 x LCD Module
Switches In / Out 8 x 8 buttons
Next N/A
Previous N/A
Cancel 1 x Pushbutton
Menu 1 x Pushbutton
Profile 1 x Pushbutton
Enter 1 x Pushbutton
Power 1 x Rocker
LEDs Menu 1 (Green)
Profile 1 (Green)
I/P Rating 100-240Vac; 50-60Hz; 1.0A
Power Consumption 120V/60W; 230V/62W
Environment Operating Temp. 0 – 50°C
Storage Temp. –20 – 60°C
Humidity 0-80% RH, Non-condensing
Physical
Properties Housing Metal
Weight 4.03 kg
Dimensions
( L x W x H ) 43.20 x 26.20 x 4.40 cm



K výrobku je k dispozici pouze manuál v angličtině (nemá český manuál).
