Popis produktu:

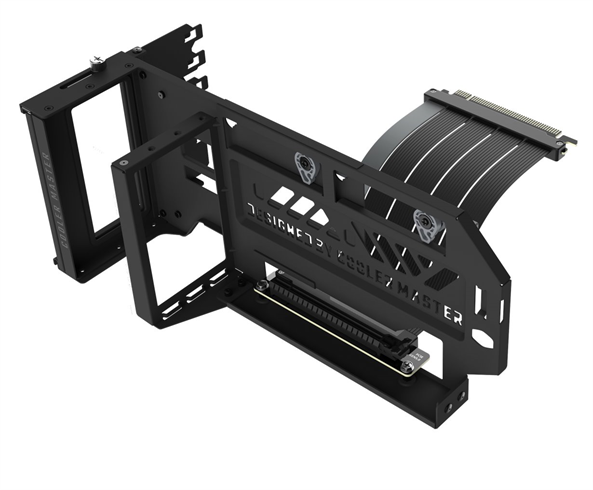

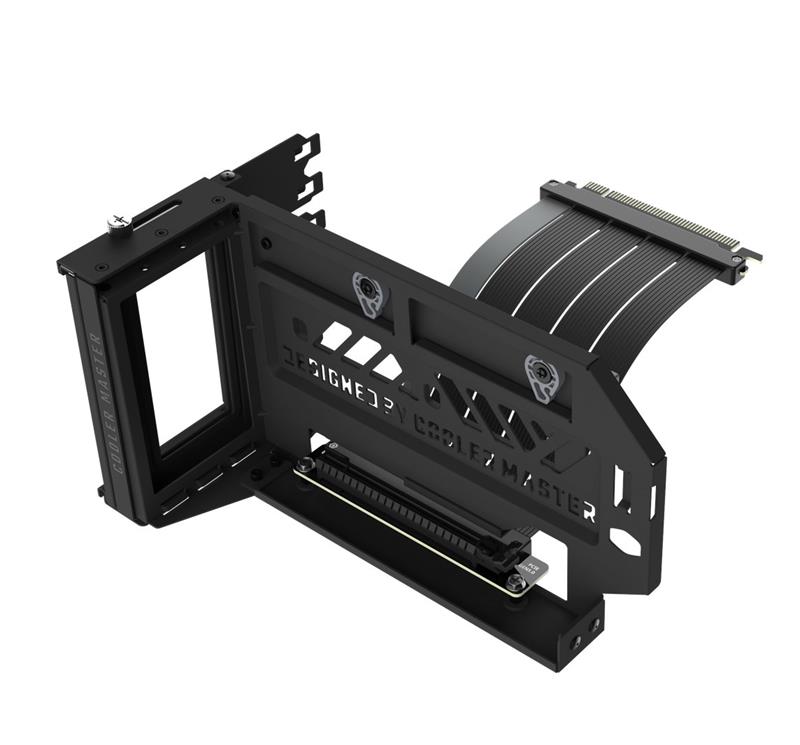

Vertical Graphics Card Holder Kit V3 (PCIE 5.0)

• PCIe 5.0 riser cable included?

• Showcase your GPU with style??

• ATX & m-ATX case compatibility??

• Tool-less, flexible adjustment?

• Premium steel, 42%more durable?

• Simplified installation?


Product Name VERTICAL GRAPHICS CARD HOLDER KIT V3 PCIE 5.0 X16 165MM
Color(s) Black / White
Model Number Black: MCA-U000C-KFVK03
Model Number White: MCA-U000C-WFVK03
Dimensions (L x W x H) GFX Holder Kit: 249 x 148.1 x 141.8 mm (Close Size), 305 x 178.1 x 141.8 mm (Open Size), Riser Cable: 165 mm
Supported Chassis Type E-ATX, ATX , Micro ATX (may interfere with component installation on the rear panel. Max. CPU cooler height limited to 70mm.)
Supported Graphics Cards Any length, up to 3 slots wide
Component Materials PCBA, silver-plated Copper Wire 30 AWG
Insulation Materials FEP (Cable), PA10T + 35%GF (Connector)
Other Materials ABS, PP, SGCC Steel, Nickel, Gold, Brass
Compatibility PCIe 5.0 and older
CE Certifications Number BKC25093934JC
PCB / Wire UL Numbers E467745 / E527405

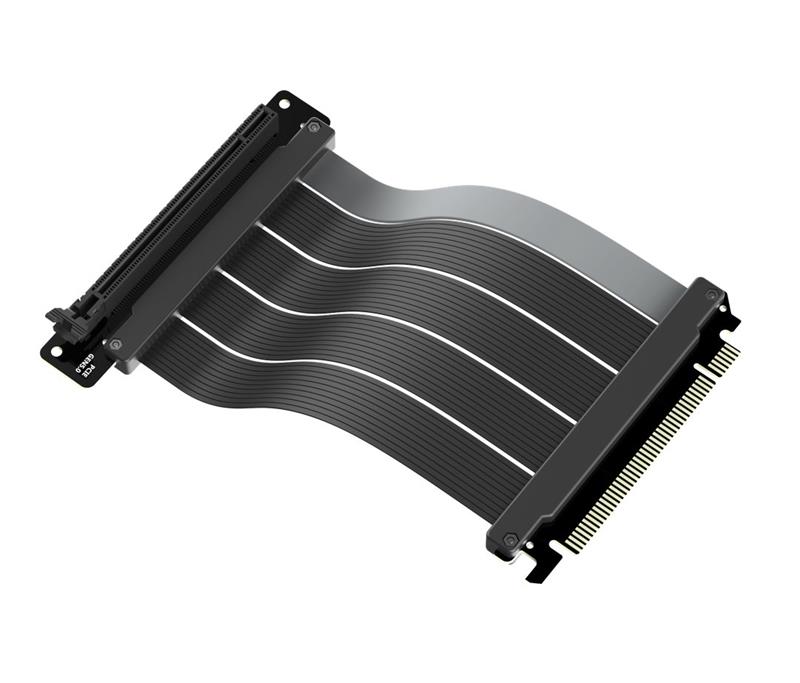

Connectors PCIe x16 Male to PCIe x16 90° Female
Required PCI slots Minimum 4 PCI slots required for mounting
Working Voltage / Current DC 12V / 3.3V/3.3Vaux A,75W(Max)
Operating Temperature -20° to +80° Celsius
Net Weight 0.81 g
Gross Weight 1.03 g
Warranty 1 year
