Popis produktu:

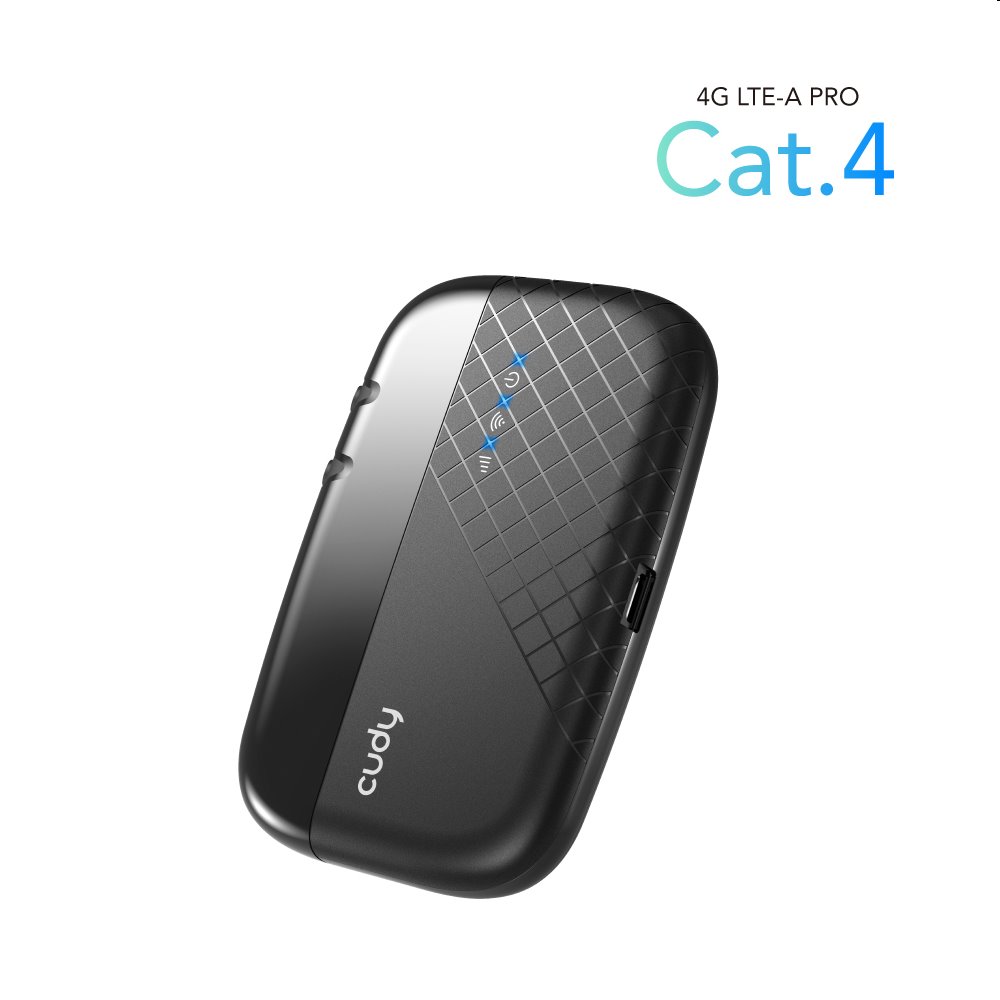

4G LTE Mobile Wi-Fi

Share 4G connection with up to 150 Mbps download/50 Mbps upload speeds
Support FDD and TDD bands
Supports up to 11 devices simultaneously (10 Wireless+1 Wired)
2000 mAh battery for 8 hours of usage

Specifications

Dimensions 97 x 61 x 15.5mm
Weight 92g
Form MiFi / Pocket Router

Communication
System (WAN)
Chipset Qualcomm MDM9x07 / MDM9x25
Frequency Bands
LTE B1/B3/B7/B8/B20/B38/B40/B41
UMTS B1/B3/B8

Bandwidth
LTE Band 1.4/3/5/10/15/20 MHz

Modulation
Downlink QPSK/16-QAM/64-QAM
Uplink QPSK/16-QAM

Antenna
Primary Internal
Diversity Internal, UMTS Optional

RF Power Level
LTE FDD Power Class 3 (23 +/-2dBm)
UMTS Power Class 3 (24 +1.7/-3.7dBm)

Data Rate
4G 3GPP R10, Cat. 4, Downlink/Uplink up to 150Mbps/50Mbps
3G 3GPP R7 Downlink/Uplink up to 42Mbps/5.76Mbps

WLAN
Wi-Fi
Chipset Realtek 8192ES
Frequency 2.4GHz
Protocol 802.11b/g/n
Channel 1~13
Antenna Internal

Data Rate
802.11b Up to 11 Mbps
802.11g Up to 54 Mbps
802.11n Up to 150 Mbps

Interface
USB USB2.0
USIM Single, 4FF

LED
POWER Power/Battery Status Indicator
Network 4G/3G/2G Network Status Indicator
Wi-Fi Wi-Fi Status Indicator

WebUI
System
Connection Status
Statistics
Samba (optional)
Device Management
Power Mangement

Mobile Service
Automatic APN matching according to USIM
Auto Data Connection
PIN/PUK Management
Network Mode Selection(2G/3G/LTE/Auto)

Router
USB RNDIS Device
Up to 10 Wi-Fi users/devices
DHCP Server
IPv4/v6
VPN Passthrough
Firewall
WPS
Security via WEP, WPA-PSK, WPA2-PSK
Wi-Fi Settings

Battery
Type Li-ion Polymer Battery
Capacity 2000mAh
Endurance 5-6 hours (normal network situation)

Operation System
Windows XP/7/8/10
MAC OS 10.7+
Linux Ubuntu 13.04+
Browser IE9+, Firefox, Google Chrome, Safari, Opera

Environment
Power Supply USB, 5V1A
Working Temperature 0°C to 35°C
Storage Temperature -20°C to 60°C

Certification
3GPP Compliance CE/FCC/GCF, upon customer's requirement
Material RoHS
