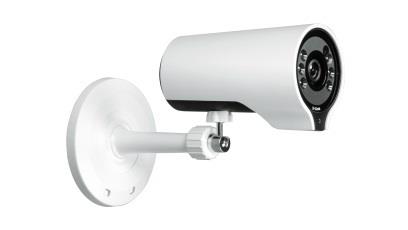

D-Link DCS-7000L HD Outdoor Day/Night Cloud IP Cam OVERVIEW The DCS-7000L Wireless AC Day/Night HD Mini Bullet Cloud Camera is a mydlink-enabled IP surveillance camera that lets you monitor an area 24 hours a day. Built-in Wireless AC technology gives you better streaming and increased reliability; and because it’s mydlink-enabled, you can check on things right from your smart phone or tablet. SPECIFICATIONS CAMERA Camera Hardware Profile · 1/4” Megapixel progressive CMOS sensor · 8 metre IR illumination distance · Minimum illumination: 0 lux with IR LED on · Built-in Infrared-Cut Removable (ICR) Filter module · 10x digital zoom · Focal length: 2.4 mm · Aperture: F2.0 · Angle of view: o (H) 98° o (V) 52° o (D) 115° · Minimum object distance: 200 mm Image Features · Configurable image size, quality, frame rate, and bit rate · Time stamp and text overlays · Configurable motion detection windows · Configurable privacy mask zones · Configurable shutter speed, brightness, saturation, contrast, and sharpness Video Compression · Simultaneous H.264/MJPEG format compression · H.264 multicast streaming · JPEG for still images Video Resolution · 16:9 - 1280 x 720, 800 x 448, 640 x 360, 480 x 272, 320 x 176 up to 30 fps recording1 · 4:3 - 960 x 720, 800 x 592, 640 x 480, 480 x 352, 320 x 240 up to 30 fps recording1 Audio Support · AAC · G.711 External Device Interfaces · 802.11a/b/g/n/ac wireless with WEP/WPA/WPA2 support · 10/100 BASE-TX Fast Ethernet port · microSDXC card slot2 · Audio in and out jacks NETWORK Network Protocols · IPv6 · IPv4 · TCP/IP · UDP · ICMP · DHCP client · NTP client (D-Link) · DNS client · DDNS client (D-Link) · SMTP client · FTP client · HTTP / HTTPS · Samba client · PPPoE · UPnP port forwarding · RTP / RTSP/ RTCP · IP filtering · QoS · CoS · Multicast · IGMP · ONVIF compliant Wi-Fi Features · 802.11a/b/g/n/ac wireless with WEP/WPA/WPA2 support · Operates over 2.4 GHz and 5 GHz frequency bands · Dual-band 1T1R mode supports a maximum data rate of 433 Mbps (PHY rate) using 80 MHz bandwidth Security · Administrator and user group protection · Password authentication · HTTP and RTSP authentication SYSTEM MANAGEMENT System Requirements for Web Interface · Browser: Internet Explorer, Firefox, Safari, Chrome Event Management · Motion/sound detection · Event notification and uploading of snapshots/video clips via e-mail or FTP · Supports multiple SMTP and FTP servers · Multiple event notifications · Multiple recording methods for easy backup Remote Management · Take snapshots/video clips and save to local hard drive via web browser · Configuration interface accessible via web browser Mobile Support · Supports mydlink Lite/mydlink+ mobile apps for iOS and Android mobile devices D-ViewCam System Requirements · Operating System: Microsoft Windows 8/7/Vista/XP · Web Browser: Internet Explorer 7 or higher Protocol: Standard TCP/IP D-ViewCam Software Functions · Remote management/control of up to 32 cameras · Viewing of up to 32 cameras on one screen · Scheduled motion triggered, or manual recording options · Supports all management functions in web interface PHYSICAL Weight · Without stand: 115 g ± 5% · Stand: 45 g ± 5% Power · 5 V DC, 1.2 A through external power adapter · External Power Adapter Input: o 100 to 240 V AC, 50/60 Hz Power Consumption · 3.5 watts max. Temperature · Operating: 0 to 40 °C · Storage: -20 to 70 °C Humidity · Operating: 20% to 80% non-condensing · Storage: 5% to 95% non-condensing Certifications · CE · CE LVD · FCC class B · C-Tick Dimensions · Without stand: 56 x 43.4 x 91.5 mm 1 Frame rates when streaming video may vary depending on network conditions and method used. 2 SD card not included. An SDXC Class 6 or above card is recommended. Supports capacities up to 2 TB.
