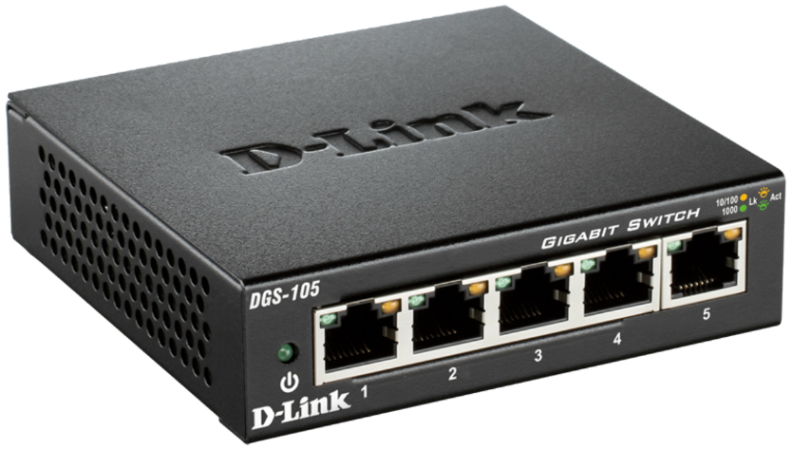

D-Link DGS-105 kovový 5-port 10/100/1000 Switch OVERVIEW The DGS-105 5-Port Gigabit Unmanaged Desktop Switch offers an economical way for SOHO and small and medium businesses to benefit from the increased bandwidth of Gigabit Ethernet. It provides five Gigabit ports for easy expansion of your network and a quick way to upgrade your network to Gigabit connectivity. SPECIFICATIONS KEY FEATURES * Built-in D-Link Green Technology * Inexpensive Gigabit solution for Home/SOHO * Five 10/100/1000 Mbps Gigabit ports * 10 Gbps switching fabric * Auto MDI/MDIX crossover for all ports * Secure store-and-forward switching scheme * Full/half-duplex for Ethernet/Fast Ethernet speeds * IEEE 802.3x Flow Control * Supports 9,000 Byte Jumbo Frames * Supports IEEE 802.1p QoS (4 Queues, Strict Mode) * Supports Cable Diagnostics Function * RoHS compliant * Plug-and-play installation * IGMP Snooping - multicast video / IPTV STANDARDS * IEEE 802.3 10BASE-T Ethernet (twistedpair copper) * IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper) * IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper) * ANSI/IEEE 802.3 NWay auto-negotiation * IEEE 802.3x Flow Control * IEEE 802.1p QoS * IEEE 802.3az Energy-Efficient Ethernet (EEE) PROTOCOL * CSMA/CD DATA TRANSFER RATES * Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex) * Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex) * Gigabit Ethernet: 2000 Mbps (full duplex) TOPOLOGY * Star NETWORK CABLES * 10BASE-T: UTP CAT 3, 4, 5/5e (100 m max.), EIA/TIA-586 100-ohm STP (100 m max.) * 100BASE-TX, 1000BASE-T: UTP CAT 5/5e (100 m max.), EIA/TIA-568 100-ohm STP (100 m max.) MEDIA INTERFACE EXCHANGE * Auto MDI/MDIX adjustment for all ports LED INDICATORS * Per port: Link/Activity/Speed * Per device: Power TRANSMISSION METHOD * Store-and-forward MAC ADDRESS TABLE * 2K MAC ADDRESS LEARNING * Automatic update PACKET FILTERING/FORWARDING RATES * Ethernet: 14,880 pps per port * Fast Ethernet: 148,800 pps per port * Gigabit Ethernet: 1,488,000 pps per port RAM BUFFER * 128 KB per device DC INPUT * External 5 V/1 A Level “V” Power Adapter POWER CONSUMPTION * Power On (Standby): DC input: 0.5W, AC input: 1.0W * Maximum: DC input: 2.01W, AC input: 3.10W HEAT DISSIPATION * Power On (Standby): AC input: 3.41 BTU/h * Maximum: DC input: 6.854 BTU/h MTBF * 1,688,338 hours OPERATING TEMPERATURE * 0 to 50 °C STORAGE TEMPERATURE * -10 to 70 °C OPERATING HUMIDITY * 10% to 90% RH non-condensing STORAGE HUMIDITY * 5% to 90% RH non-condensing DEVICE DIMENSIONS (W X D X H) * 100 x 98 x 28 mm CERTIFICATIONS * FCC Class B * ICES-003 Class B * CE Class B * C-Tick Class B * VCCI Class B * cUL * CB
