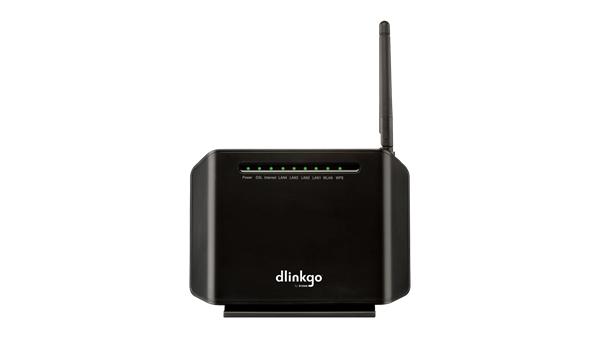

D-Link GO-DSL-N151 Wireless N150 ADSL2+ Easy Modem Router OVERVIEW The Wireless N150 ADSL2+ Easy Modem Router (GO-DSL-N151) (Annex B & J) is an all-in-one device which allows you to connect to the Internet using an integrated high-speed ADSL2/2+ interface. The router provides firewall protection for added security, and a Quality of Service (QoS) engine for smooth online gaming, media streaming, and voice communication. Built-in Wireless N 150 provides high-speed access for wireless users, while four fast Ethernet ports provide wired connections to computers using Ethernet cables. SPECIFICATIONS ADSL Compliance • ADSL 2+ Standards o ITU-T G.992.5 Annex B/J • ADSL 2 Standards o ITU-T G.992.3 (G.dmt.bis) Annex B/J o IUU-T G992.4 (G.lite.bis) • ADSL Stadards o Full-rate ANSI T1.413 Issue 2 o ITU-TG.992.1 (G.dmt) Annex B o ITU-TG.992.2 (G.lite) Annex B o ITU-T G.994.1 (G.hs) ATM/PPP Support • Multiprotocol over AAL5 (RFC 1483/2684) • Bridged and routed Ethernet encapsulation • LLC encapsulation • VC-based multiplexing • ATM Forum UNI3.1/4.0 PVC (up to 8 PVCs) • ATM Cell Format ITU-T Rec. I.361 • ATM Adaption Layer Type 5 (AAL5) • PPPoA (RFC2364) • PPPoE (RFC2516) • PPP Link Control Protocol (RFC 1661) • Internet Protocol Control Protocol (RFC 1332) • PPP Authentication Protocol (RFC 1334) • PPP Challenge Handshake Authentication Protocol (RFC 1994) • Microsoft PPP CHAP extensions (RFC 2433) Network Services • IPv4 • DHCP server/client/relay • DNS relay • Dynamic DNS (DDNS) • Routing Information Protocol (RIP) v1/v2 • NAT AGLs o PPTP o L2TP o FTP o RTSP (RealTime Streaming Protocol) o SIP v1/v2 o IPsec • Internet Control Message Protocol (ICMP) • Virtual server (Port forwarding) • Simple Network Time Protocol (SNTP) • 802.1d MAC Bridge (up to 256*8 MAC addresses) • QoS o IPP/ToS o DSCP QoS in 4-priority queues o Application QoS in 4-priority queues o Strict priority o VLAN QoS in 4-priority queues o QoS remarking based on IPP/ToS, DSCP and 802.1p o TOS transparency through NAT o Mapping to queue according to DSCP bits and physical port o 802.1Q • IGMP proxy v1/v2 • IGMP snooping v1/v2/v3 NAT Support • NAT and NAPT • NAT 4096 sessions capacity Universal Plug and Play Support • UPnP based auto-configuration • UPnP based port forwarding • uPnP IGD 1.0 Security • Attack Prevention o Port scanning & illegal packet attack o DoS Attack o SYN Flooding o Ping of Death o Teardrop o LAND attack o IP Spoofing o IP with zero length o Smurf Attack o TCP Null Scan • Stateful Packet Inspection (SPI) • Management Access Control for LAN/WAN sides • IP filtering • MAC filtering • URL filter • Demilitarized Zone (DMZ) WLAN Specifications • 802.11 n/g/b, up to 150 Mbps • Wi-Fi Protected Setup (WPS) • Multiple SSIDs • Automatic rate adapting • WAN scheduling • Auto channel selection • WMM support • 64-bit & 128-bit WEP • WPA-PSK & WPA2-PSK • MAC address filtering Device Management • Web configuration • Telnet management • Webpage/X-Modem/FTP/TFTP firmware upgrade • Diagnostic tools for ADSL and IP Ping • Setup wizard Dimensions • 148 x 45 x 112 mm Weight • 450 g Power • Input: 100 to 240 V AC, 50/60 Hz • Output: 12 V DC, 500 mA Temperature • Operating: 0 to 40 °C • Storage: -20 to 70 °C Humidity • Operating: 10% to 90% non-condensing • Storage: 5% to 95% non-condensing Certifications • CE • Wi-Fi Certified
