Popis produktu:

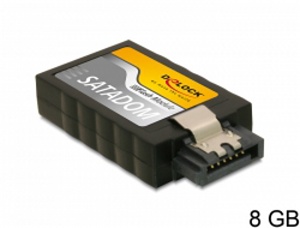

The Delock SATA 6Gb/s flash module is, due to its small size and high shock resistance, ideally suited for usage in mobile devices such as IPCs and measuring systems, as well as for the digital signage range. The module supports the SATA 6Gb/s standard and is therefore convenient for applications that require fast read and write speeds. The metal clip at the SATA connector enables the module to snap in to your SATA port.

Specifikace
• Capacity: 8 GB
• Memory chip: Toshiba MLC, 2 channels
• Controller: ID107
• 7 Pin SATA 6 Gb/s interface
• Übertragungsmodi: SATA 6 Gb/s, SATA 3 Gb/s, SATA 1,5 Gb/s
• Operating voltage: 5 V +/- 5%
• Operating temperature: 0 °C ~ +70 °C
• Storage temperature: -55 °C ~ +95 °C
• Endurance:
         Write / Erase: > 3,000 cycles
         Read: unlimited
• Supports Write Protect, ATA Security and SMART (Self-Monitor Analysis and Reporting Technology)
• 90 MB/s read, 13 MB/s write
• Power consumption: 1.0 W (max.)
• Current demand:
         Read: 180 mA
         Write: 200 mA
         Idle: 120 mA
• MTBF: > 3.000.000 hrs.
• Vibration: 20 G, 7 ~ 2000 Hz
• Shock: 1,500 G / 0.5 ms
• Dimension (LxWxH): ca. 41.5 x 25.2 x 6.8 mm

Systémové požadavky
• A free SATA 7 pin port
• Power supply with a free Molex power connector

Obsah balení
• SATA Flash Modul
• Powerkabel

Balení
• Antistatic cover

Výrobek je dodáván s manuálem pouze v anglickém nebo německém jazyce.
