Popis produktu:

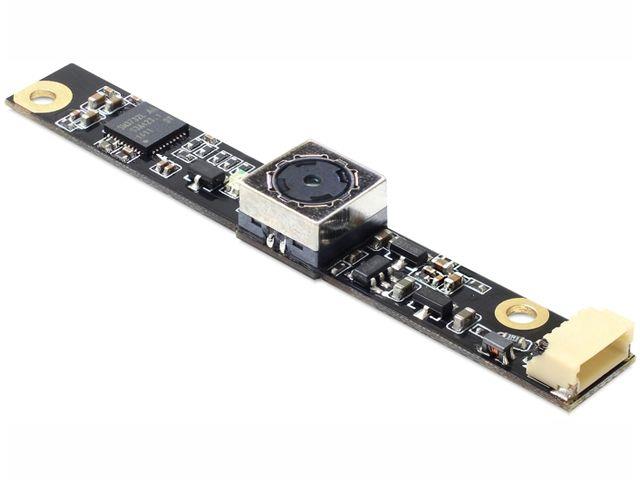

The Delock USB 2.0 camera module offers in compact construction low power consumption as well as high resolution. It is ideal for installation in industry components like IPCs, sensors, notebooks or PDAs.

This camera module is the successor of the module 95933. It is mechanical and pin compatible to him.

Specifikace
• USB 2.0 high speed
• 3.14 Mega Pixel
• Standard SCCB interface (I^(2)C Bus)
• Output support for Raw RGB, RGB565/555/444, YUV 422 and
 JPEG 422 formats
• Supports resolutions: QXGA (2048 x 1536)
• Different fully-automated shutter priority:
 - Automatic image control functions including automatic
   exposure control (AEC)
 - Automatic white balance (AWB)
 - Automatic band filter (ABF)
 - Automatic black-level calibration (ABLC)
• Image quality controls including color saturation, gamma,
 sharpness (edge enhancement), lens correction, white pixel canceling,
 noise canceling, and autom. 50/60 Hz luminance detection
• Supports scaling
• Lense: 1/4
• Power consumption: suspend: 90 mA
                                   active:     430 mA ± 5 mA @ 640x480
• Low operating voltage 5 V
• Operating temperature: 5 ~ 40 °C
• Relative humidity during operation: max. 20 – 80 %
• Lense dimension: 1/4 inch
• Dimension: 60 x 8 x 5.8 mm (L/W/H)
• Sensitivity: 0.6 V (Lux. sec)
• Signal-to-noise ratio: 36 dB
• Dynamic range: 68 dB
• Auto focus
• Lense: F/2.8
• Frame rates: 30fps@VGA
                       15fps@QXGA

Obsah balení
• Camera module
• CD

Výrobek je dodáván s manuálem pouze v anglickém nebo německém jazyce.
