Popis produktu:

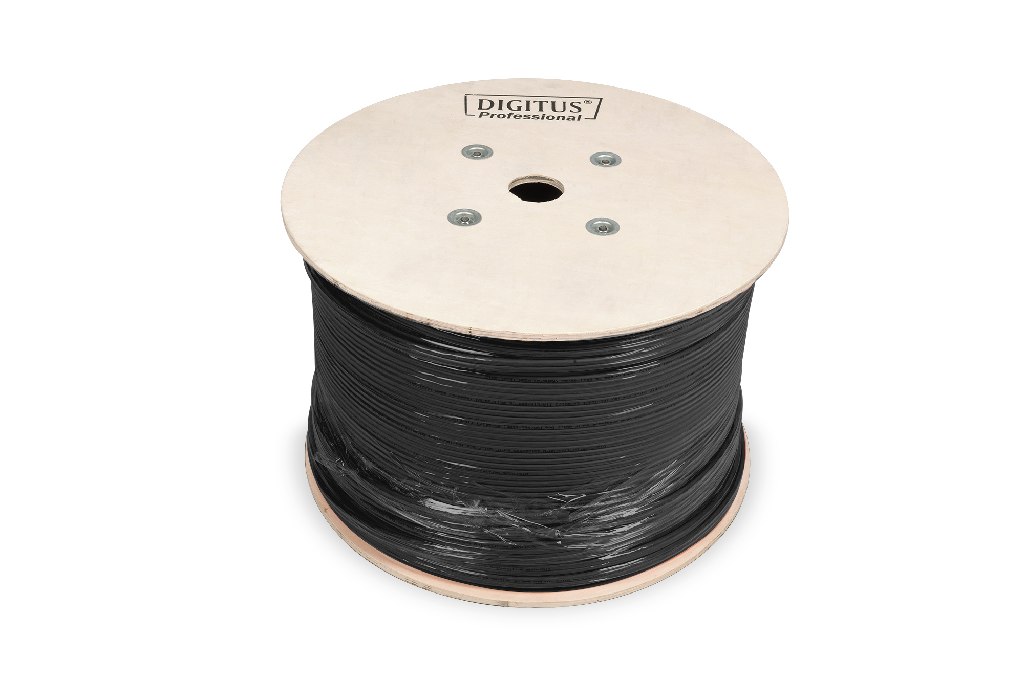

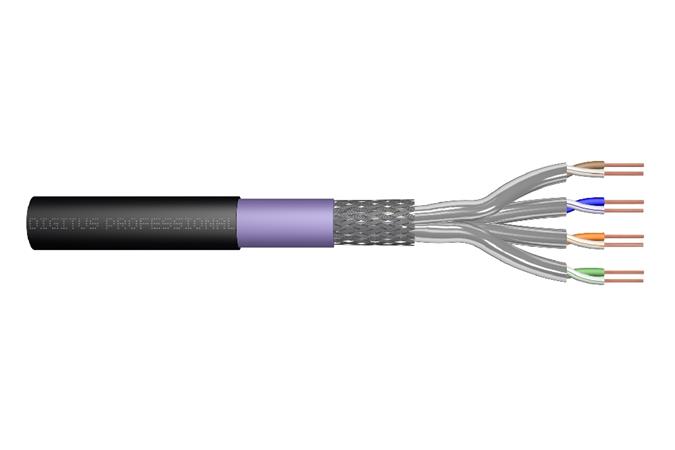

DIGITUS CAT 7 S-FTP PiMF installation cable, raw, AWG 23/1, PE, 1200MHz, Outdoor cable black 1000m drum

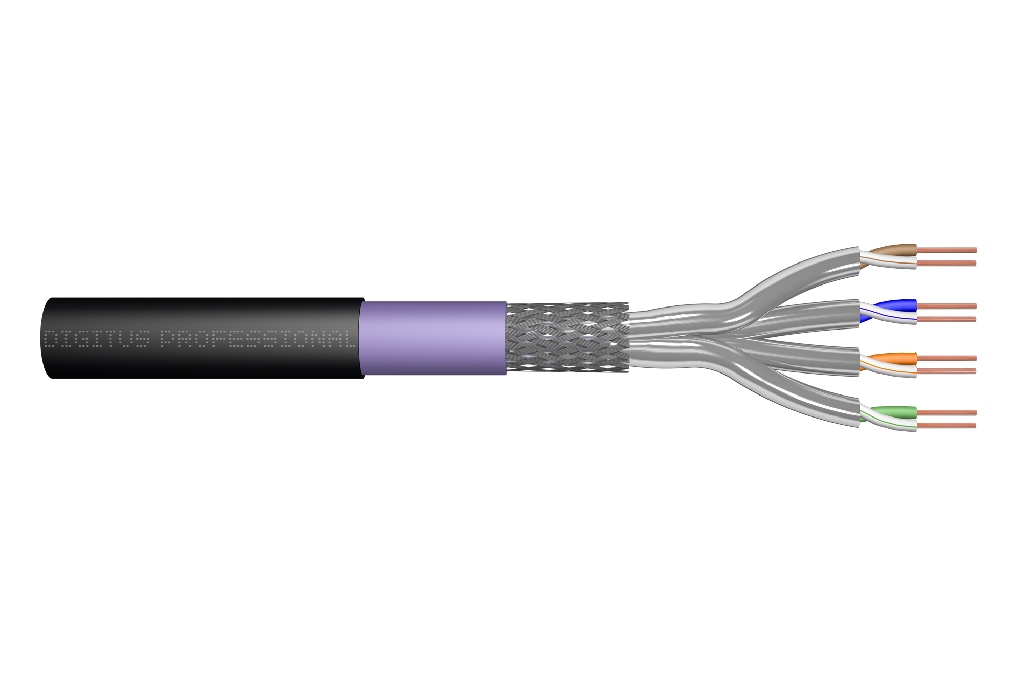

4 x 2 x AWG23 S-FTP CAT7 1200MHz PE, buried cable. Suitable for installations in dry or wet areas, outdoor or ground. Conforming to ISO/IEC 11801, DIN EN 50173, DIN EN 50288-4-1.

Best performance and link quality for your network.

Basic conductor: Solid AWG 23/1; bare annealed copper 0.57 mm nom
Insulation: SFS-PO
Total number of insulated conductors: 8, twisted in 4 pairs
Color code: blue-white, orange-white, green-white, brown-white
Individual pair shielding: aluminum foil, providing 100 % coverage
Overall shielding: tin-coated copper wire braid, 35% nom. coverage
Outer jacket: PE
Color: Black (RAL 9005)
Overall diameter: 8.5 mm nom.
Bending radius: dynamic 8 x D mm min, static 4 x D mm min
Storage temperature: -20 °C - +60 °C
Temperature range for installations: 0 °C - +60 °C
Temperature range in operation: -50°C - +60°C
Tensile loading: 150N max.
Caloric value: 650KJ/m
Total weight: 66.5 kg/km nom.
Mean impedance: 100±5Ohm at 1MHz - 600MHz
Vp: 75%-77% nom.
Capacitance: 40pF/m nom. at 1KHz
Capacitance unbalance to ground: 1.6 pF/m max. at 1KHz
Insulation resistance: 0.5GOhm*Km min.
DC resistance: 72 Ohm/km max. (2% max. resistance unbalance)
DC loop resistance: 147Ohm/Km max. (2% max. resistance unbalance)
Voltage resistance: 72Vdc max.
Coupling attenuation: 85dB min. at 30MHz - 100MHz, 82-20Log(f/100)dB min. at 100MHz - 1000MHz
PS-ANEXT loss: 92.5-15Log(f)dB min. at 1MHz - 600MHz (67dB max.)
PS-AACRF: 78.2-20Log(f)dB min. at 1MHz - 600MHz (67dB max.)
Phase delay: 534+36/f1 nS/100m max. at f=1MHz - 1000MHz
Delay skew: 25nS/100m max.
