Popis produktu:

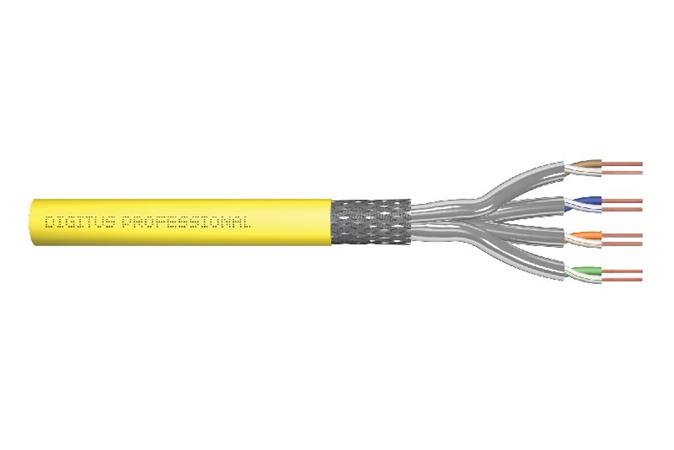

4 x 2 x AWG22 S-FTP CAT7A 1500MHz LSZH, Installation cable
l  Physical properties:
l  Basic conductor: Solid AWG 22/1, bare annealed copper, diameter 0.60 mm nominal
l  Insulation: SFS-PE (Foam-Skin Polyethylene)
l  Total number of insulated conductors: 8, twisted in 4 pairs
l  Color code: blue-white, orange-white, green-white, brown-white
l  Individual pair shielding: Aluminum foil, providing 100 % coverage
l  Overall shielding: Wire braid, 50% nominal coverage, copper drain wire
l  Outer jacket: Halogen-free (FRNC-C/LSZH-3)
l  Outer jacked diameter: 0.6 mm nominal
l  Color: Yellow (RAL 1016)
l  Length: 1000 m
l  Mechanical properties:
l  Tensile loading: 150N max.
l  Dynamic bending radius: 8x AD mm min.
l  Static bending radius: 4x AD mm min.
l  Shipping- and storage temperature range: -20 °C up to +75 °C
l  Operating temperature range: -20 °C up to +60 °C
l  Temperature installation range: 0°C to +50°C
l  Overall diameter: 8.0 mm nominal
l  Flame retardancy: IEC 60332-3-24
l  Halogen-free & smoke-proof: IEC 60754-2 & IEC 61034
l  Fire load: 700 Mj/km
l  Weight: 70 kg/km
l  Electrical properties:
l  Mean impedance: 100±5 Ohm @ 1-600 MHz
l  Capacitance: 40 pF/m nominal @ 1 KHz
l  Capacitance unbalance (pair-ground): 1.6 pF/m max. @ 1 KHz
l  Insulation resistance: 5 GOhm x km min.
l  DC loop resistance: 147 Ohm/Km max. (2% max. resistance unbalance)
l  Voltage resistance: 72 Vdc max.
l  Coupling attenuation: 80 dB
l  Signal propagation delay: 450 nS/100 m max.
l  Propagation delay: 10 nS/100 m max.
l  Separating class: “d” acc. to EN 50174-2
l  NVP: 79%
l  Category: CAT 7A
l  Shielding: S-FTP, pairs in metal foil and braid shielding
l  Structure: 4 x 2 AWG 22/1, solid twisted pair
l  Color: yellow
l  Length: 1000 m
l  Jacket: LSOH
