Popis produktu:

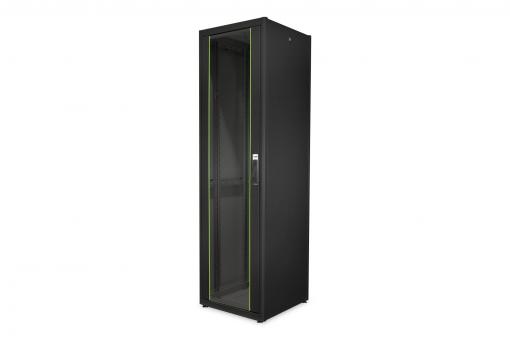

42U network rack, Dynamic Basic 2040x600x600 mm, color black (RAL 9005) with Glass Front door

Description
Network Rack Dynamic Basic Series - 600x600 mm (WxD)


The DIGITUS® Dynamic Basic Series is made for high demand IT-Infrastructure Solutions - designed and developed on highest standard in Germany


Roof is prepared for fan units (punched out entries)

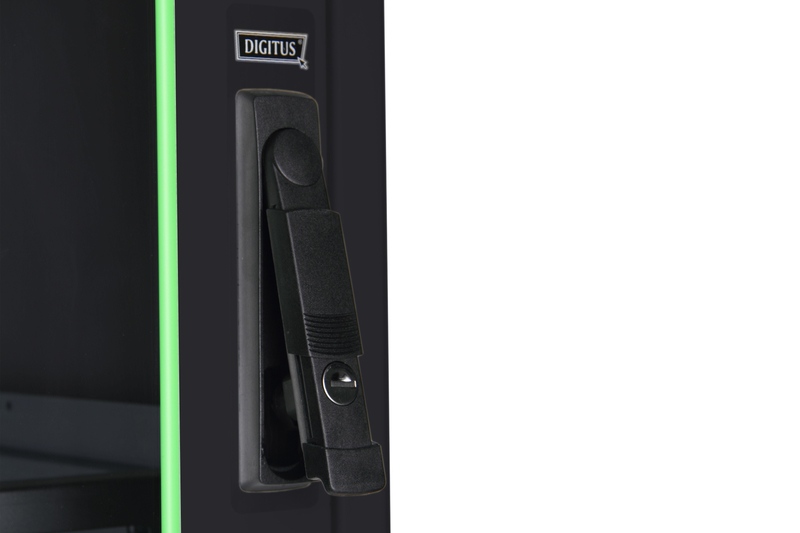

Lockable pivot lever on front door
Base with punched out cable entry, covered with screwed metal plate

The Network Cabinet Dynamic Basic Series was designed and produced for cabling and networking components. Several optimizations result in a perfect performance between quality and added value. Each cabinet is designed with strength, ease of use and aesthetics in mind. The front door consists of lateral metal struts with safety glass. All side panels as well as the rear panel are lockable and detachable. Every cabinet is equipped with galvanized 483 mm (19”) profile rails, mounted left and right on the front and rear side. They are adjustable in depth and with height unit marking. The roof is ready for the installation of a fan unit. All cabinets of the Dynamic Basic Series are delivered completely mounted. They are available in various height units from 22U up to 472 and a width and depth of 600 or 800 mm. Standard colors are grey (RAL 7035) and black (RAL 9005), other colors are available on request.

Technical details
Safety class rating IP20

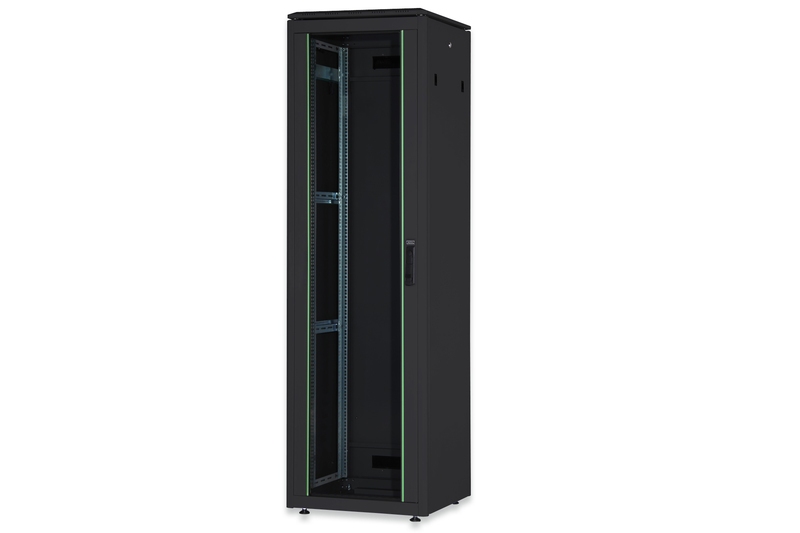

Lateral metal struts front door with safety glass
Lock system with pivot lever on front door
120° door opening angle on the front door
1-point-locking-mechanism on the front door
Rear wall and side panels are lockable and detachable
incl. 4 pieces of leveling feet already pre-configured under the rack
483 mm (19“) profile rails mounted on the front- and rear side inside of the rack, galvanized
483 mm (19“) profile rails are adjustable in depth and with height unit marking
Base with punched out cable entry, covered with screwed metal plate
Roof with punched out cable entries with plastic covers
Roof is prepared for fan units (punched out entries)
Several earthing points for rack components
Incl. installation set (screws, cage nuts, washers)
Rack is completely mounted
