Popis produktu:

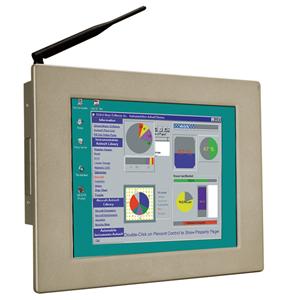

Dotykový terminál 10,4" pro průmyslové řešení

LCD Size : 10.4"
Resolution : 800 x 600 (SVGA)
Brightness : 400 cd/m2
Contrast Ratio : 700:1
Viewing Angle (H-V) : 140°/160°
Backlight MTBF : 50,000hrs

CPU Intel® Atom process N270 1.6GHz CPU
RAM 1 x 200-pin SO-DIMM socket, supporting
DDR2 533MHz modules for up to 2GB
CPU Board NANO-945GSE-N270
Memory One 200-pin 533MHz DDR2 SDRAM SO-DIMM supported (system max. 2GB)
Chipset Intel® 945GSE + ICH7M
SSD CF Type II
Drive Bay 1 x 2.5" SATA HDD Bay with Anti-Shock
I/O 2 x RS-232
1 x RS-232 ( Alternative to RS-422/485)
2 x RJ-45 for LAN Port
2 x USB 2.0
1 x VGA Port
Line-in, Line-out, MIC-in
1 x PS/2 mouse and keyboard interface
1 x 12VDC input Power Jack
1 x Power Switch
Touch Screen 5-wire resistive type with RS-232 interface
Expansion Slot 1 x PCIe mini card
Power Supply Power Adapter
- P/N: 63000-FSP0601AD101C746-RS
- 60W Power Adapter
- Input: 90VAC~264VAC, 50/60Hz
- Output: 12VDC
Operating Temp - 10^(o)C~50^(o)C
Storage Temp - 20^(o)C~60^(o)C
Vibration 5~17Hz 0.1” double amplitude displacement
17~640 Hz 1.5G acceleration peak to peak
Shock 10G acceleration peak to peak. (11ms)
Relative Humidity 5% ~ 95% @ 60°C, non-condensing
Net / Gross Weight 3.4 kg / 5.8 kg
Dimension 311.5 mm x 242 mm x 77.8 mm
Power Consumption P/N: 63000-FSP060DBAB1554-RS
60W Power Adapter
Input: 90VAC~264VAC, 50/60Hz
Output: 12VDC
