Display
14.0” FHD (1920 x1080)
1200 nits DynaVue® sunlight readable display with capacitive multi-touch screen
User selectable touch mode for Finger/Water, Glove, or Stylus programmable function

Operating System
Windows® 11 Pro 64-bit

Processors
Intel® Core™ Ultra 7 165U (12MB Cache, up to 4.9 GHz, 12 cores, 14 threads with Intel® AI Boost NPU)
Intel® Core™ Ultra 7 155U (12MB Cache, up to 4.8 GHz, 12 cores, 14 threads with Intel® AI Boost NPU)
Intel® Core™ Ultra 5 135U (12MB Cache, up to 4.4 GHz, 12 cores, 14 threads with Intel® AI Boost NPU)
Intel® Core™ Ultra 5 125U (12MB Cache, up to 4.3 GHz, 12 cores, 14 threads with Intel® AI Boost NPU)

Memory
2 slots 16GB up to 64GB (5600MHz DDR5)

Storage
256GB NVMe PCIe SSD
Optional 512GB/1TB/2TB PCIe SSD
Optional OPAL 2.0 SSD
Optional 2nd storage NVMe PCIe SSD
Optional 3rd storage SATA SSD

Graphics
Intel® Graphics
Optional NVIDIA® RTX A5001

Camera
Integrated 2.0 MP web-cam with shutter design
Optional 5.0 MP IR camera for Windows Hello

Audio
Integrated microphone
Intel® High Definition Audio Compliant
Integrated speaker x 2
Keyboard volume and mute controls

Media Bay
(One Option Only)
Optional DVD super Multi
Optional 2nd battery
Optional SATA SSD

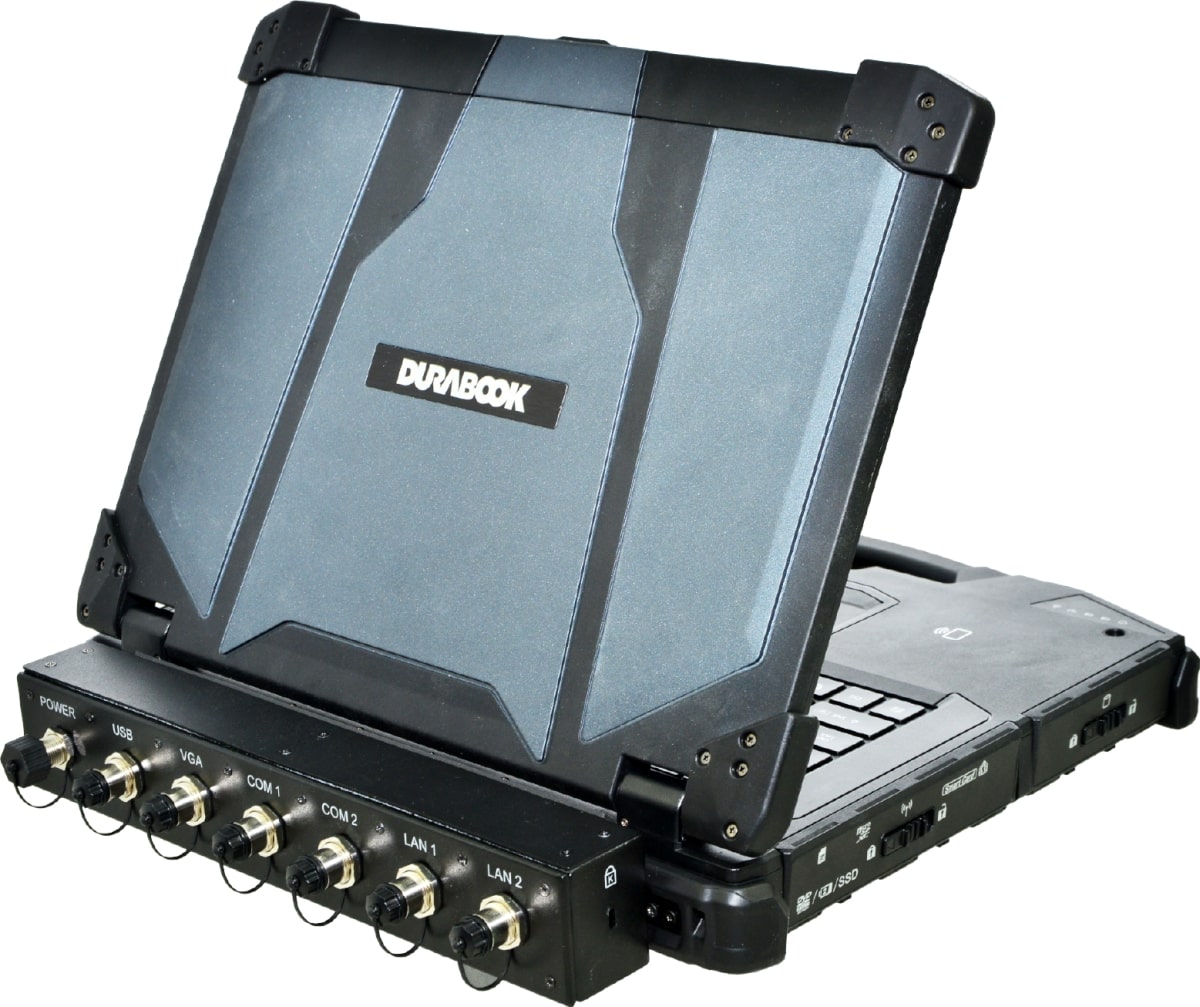

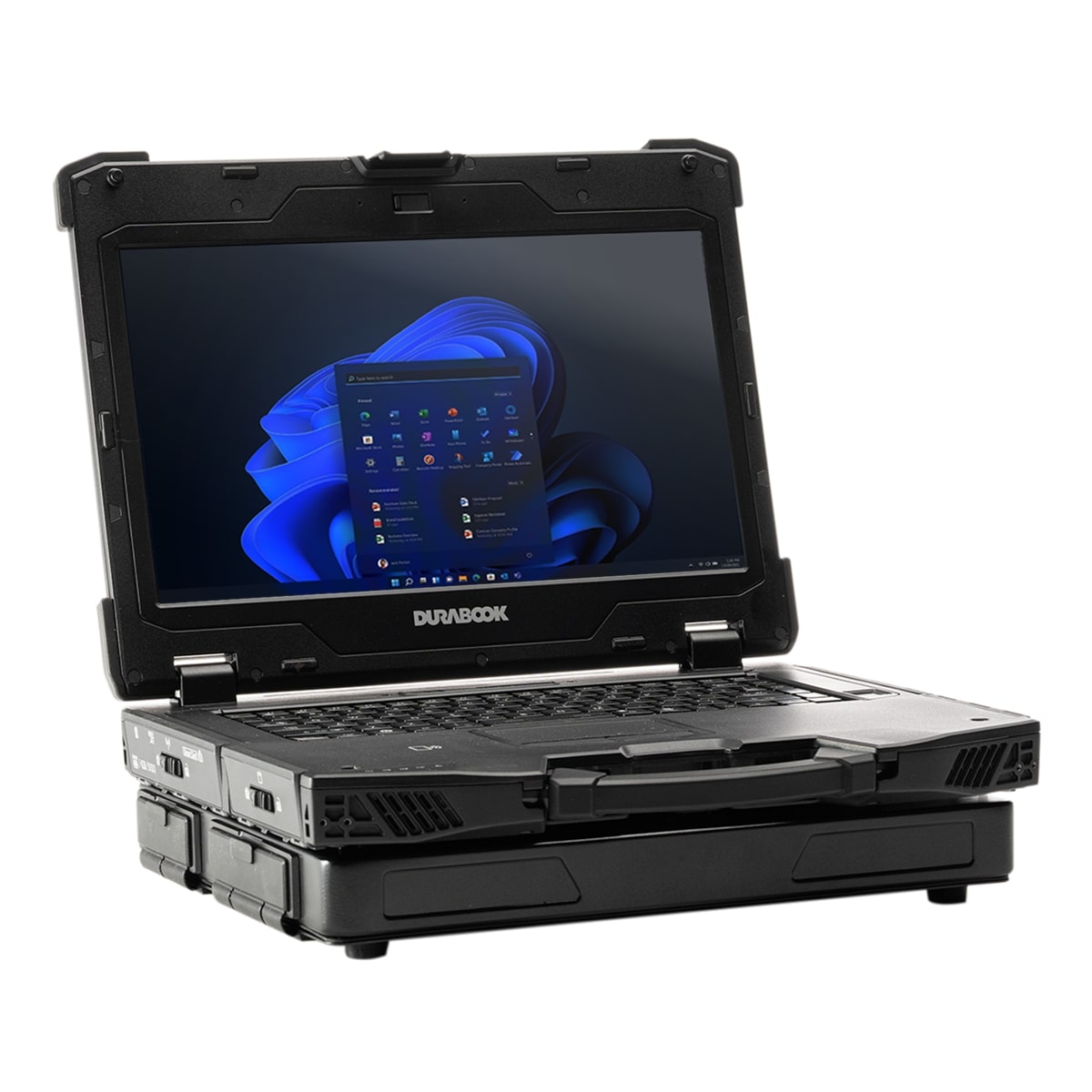

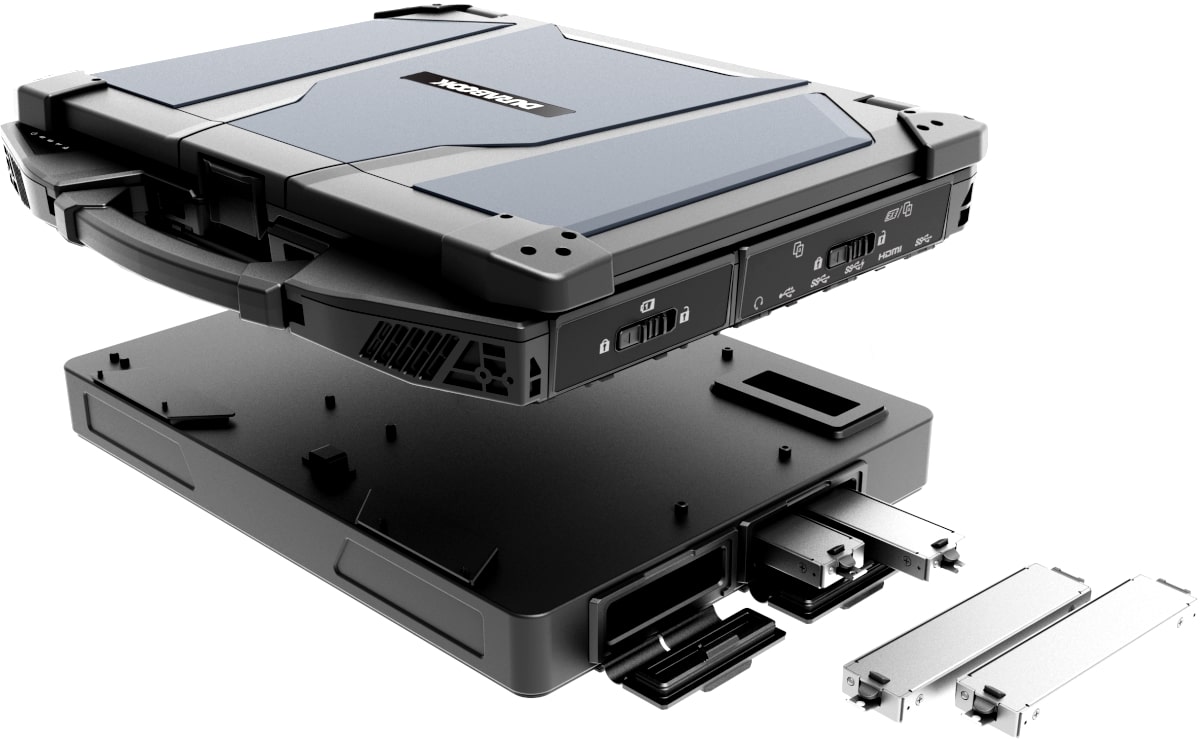

Expansion Box
Optional PCI-Express 3.0 (2 slots)
Optional discrete VGA
Optional storage extension with RAID 0/1/5/10
Optional military-grade connectors

I/O Ports
Thunderbolt 4 (type C) x 2
USB 3.2 Gen2 (type A) x 1
USB 3.2 Gen1 (type A) x 1
USB 2.0 (type A) x 1
Audio in/out (combo jack) x 1
microSD card (microSDXC) x 1
10/100/1000 Ethernet (RJ45) x 2
VGA port (D-sub, 15-pin) x 1
HDMI 2.1 port (type A) x 1
Serial port (RS232/RS422/RS485: D-sub, 9-pin) x 2
Docking connector (41-pin Pogo) x 1
Dual SIM (Nano SIM & eSIM)
Smart card reader x 1
ExpressCard 54 x 1
DC-In jack x 1
Optional RF antenna pass-through for GPS, WWAN, and WLAN

Keyboard & Input
2 user-definable keys (P1/P2)
Standard membrane keyboard with LED backlight

Communications
Integrated 10/100/1000 Ethernet
Intel® Wi-Fi 7 BE200 (802.11 be)
Bluetooth® V5.4
Optional dedicated GPS module (UBLOX-NEO-M9N)
Optional 4G LTE multi-carrier mobile broadband
Optional 5G
Optional RF antenna pass-through for GPS, WWAN, and WLAN

Security
Intel® vPro™ Technology
Secured-Core PC
TPM 2.0
NIST BIOS compliant
Easy removable SSD
Smart card reader
Stealth mode
Night vision mode
Kensington lock
Optional Windows Hello
Optional fingerprint scanner
Optional LF/HF-RFID (NFC) reader

Power
AC adapter: 100-240V, 50Hz-60Hz, 90W
Optional AC adapter (100-240V, 50Hz-60Hz, 120W), with NVIDIA® VGA
Main battery: Li-Ion, 10.8V, 6900mAh, 12.5 hours
Optional 2nd battery: Li-Ion, 10.8V, 4700mAh, 9 hours
Optional bridge battery: 5 minutes swap time

Environment
Temperature:
Operating: -29°C ~ 63°C / -20°F ~ 145°F
Storage: -51°C ~ 71°C / -60°F ~ 160°F
Humidity: 5% ~ 95%

Dimension & Weight
356 mm (L) x 280 mm (W) x 50 mm (H)
3.6 kg

Warranty
3-year limited warranty standard
