Popis produktu:

REPAIRED!!

Key Feature

   AMD Socket AM5 Supports AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors
   Unparalleled Performance Twin 16*+2+1 Phases Digital VRM Solution
   Dual Channel DDR5*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
   Next Generation Storage?1*PCIe 5.0 x4 and 2*PCIe 4.0 x4 M.2 Connectors
   Mega-Heatpipe & M.2 Thermal Guard III To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance


   AMD Socket AM5?Supports AMD Ryzen™ 7000/ Ryzen™ 8000
       AMD Socket AM5, support for: AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors
   Chipset
       AMD B650
   Memory
       Support for DDR5 8000(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6666(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5600(OC)/ 5200/ 4800/ 4400 MT/s memory modules
       4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
       Dual channel memory architecture
       Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
       Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory module
   (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
   Onboard Graphics
   Integrated Graphics Processor with AMD Radeon™ Graphics support:
       1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
       * Support for HDMI 2.1 version and HDCP 2.3.
       ** Support native HDMI 2.1 TMDS compatible ports.
   (Graphics specifications may vary depending on CPU support.)
   Audio
       Realtek® ALC1220-VB CODEC
       * The back panel line out jack supports DSD audio.
       High Definition Audio
       2/4/5.1/7.1-channel
       * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
       Support for S/PDIF Out
   LAN
       Intel® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
   Wireless Communication module
   AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0)
       WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
       BLUETOOTH 5.2
       Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
   Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1)
       WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
       BLUETOOTH 5.3
       Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
   (Actual data rate may vary depending on environment and equipment.)
   Expansion Slots
   1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
       AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
       AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
       AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
       * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
   Chipset:
       1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
       * The PCIEX4 slot shares bandwidth with the M2C_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2C_SB connector.
       1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
   Storage Interface
   1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs:
       AMD Ryzen™ 7000 Series Processors support PCIe 5.0 x4/x2 SSDs
       AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
       AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
   1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/2580 SSDs:
       AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
       AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
       AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
   1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/2580 PCIe 4.0 x4/x2 SSDs
   4 x SATA 6Gb/s connectors
   RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
   RAID 0, RAID 1, and RAID 10 support for SATA storage devices
   USB
   CPU:
       1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
       2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
   CPU + USB 2.0 Hub:
       4 x USB 2.0/1.1 ports on the back panel
   Chipset:
       1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
       1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
       2 x USB 3.2 Gen 1 ports available through the internal USB header
       4 x USB 2.0/1.1 ports available through the internal USB headers
   Chipset+USB 3.2 Gen 1 Hub:
       4 x USB 3.2 Gen 1 ports on the back panel
   Internal I/O Connectors
       1 x 24-pin ATX main power connector
       1 x 8-pin ATX 12V power connector
       1 x 4-pin ATX 12V power connector
       1 x CPU fan header
       1 x water cooling CPU fan header
       4 x system fan headers
       2 x system fan/water cooling pump headers
       2 x addressable LED strip headers
       2 x RGB LED strip headers
       1 x CPU cooler LED strip/RGB LED strip header
       3 x M.2 Socket 3 connectors
       4 x SATA 6Gb/s connectors
       1 x front panel header
       1 x front panel audio header
       1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
       1 x USB 3.2 Gen 1 header
       2 x USB 2.0/1.1 headers
       1 x noise detection header
       1 x THB_U4 add-in card connector
       1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 / GC-TPM2.0 SPI V2 module only)
       1 x serial port header
       1 x reset button
       1 x reset jumper
       2 x temperature sensor headers
       1 x Clear CMOS jumper

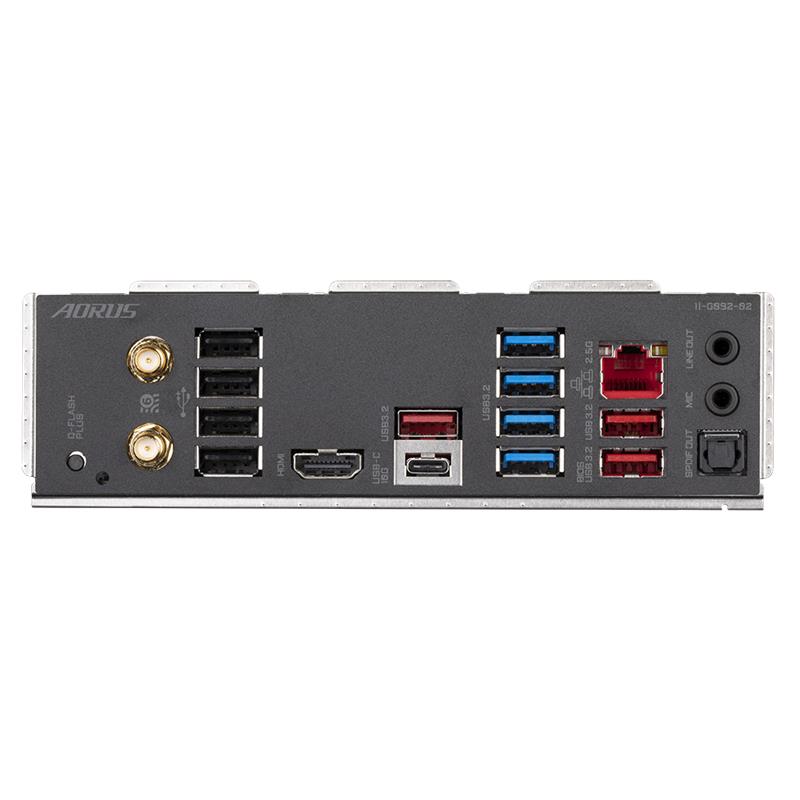

   Back Panel Connectors
       1 x Q-Flash Plus button
       2 x SMA antenna connectors (2T2R)
       4 x USB 2.0/1.1 ports
       1 x HDMI port
       3 x USB 3.2 Gen 2 Type-A ports (red)
       1 x USB Type-C® port, with USB 3.2 Gen 1 support
       4 x USB 3.2 Gen 1 ports
       1 x RJ-45 port
       2 x audio jacks
       1 x optical S/PDIF Out connector
   I/O Controller
       iTE® I/O Controller Chip
   H/W Monitoring
       Voltage detection
       Temperature detection
       Fan speed detection
       Water cooling flow rate detection
       Fan fail warning
       Fan speed control
       * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.
       Noise detection
