Popis produktu:

Key Features

   X3D Turbo Mode:Unleash new era gaming performance
   DDR5 OC up to 8200MT/s
   AMD Socket AM5:Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
   Digital twin 14+2+2 phases VRM solution
   Dual Channel DDR5:4*DIMMs with AMD EXPO™Memory Module Support
   WIFI EZ-Plug:Quick and easy design for Wi-Fi antenna installation
   D5 Bionic Corsa for Infinite Memory Performance
   EZ-Latch:PCIe and M.2 slots with Quick Release & Screwless Design
   EZ-Latch Click:M.2 heatsinks with screwless design
   Sensor Panel Link:Onboard video port for hassle-free in-chassis panel setup
   Friendly UI:Multi-Theme, AIO Fan Control, and Q-Flash Auto ScaninBIOS and SW
   Ultra-Fast Storage:2*M.2 slots, including PCIe 5.0 x4
   Efficient Thermal:VRM Thermal Armor Advanced& M.2 Thermal Guard Ext.
   Fast Networking:2.5GbE LAN & Wi-Fi 7
   Extended Connectivity:Dual USB4 Type-C with DP-Alt, HDMI
   PCIe UD Slot X:PCIe 5.0 x16 slot with 10X strength for graphics card

   CPU
   AMD Socket AM5, support for:
   AMD Ryzen™ 9000 Series Processors/
   AMD Ryzen™ 8000 Series Processors/
   AMD Ryzen™ 7000 Series Processors
   (Go to GIGABYTE's website for the latest CPU support list.)

   Chipset
   AMD X870

   Memory
   Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
   4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
   Dual channel memory architecture
   Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
   Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
   (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

   Onboard Graphics
   Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:
   - 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz

   * Support for DisplayPort 1.4 version and HDR.

   Integrated Graphics Processor with AMD Radeon™ Graphics support:
   - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

   * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
   ** Support for native HDMI 2.1 TMDS compatible ports.

   - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz

   * Support for HDMI 1.4 version.

   (Graphics specifications may vary depending on CPU support.)

   Audio
   Realtek® ALC1220 CODEC

   * The back panel line out jack supports DSD audio.

   High Definition Audio
   2/4/5.1/7.1-channel

   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

   Support for S/PDIF Out

   LAN
   Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

   Wireless Communication module
   Realtek® Wi-Fi 7 RTL8922AE
   - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
   - BLUETOOTH 5.4
   - Support for 11be 160MHz wireless standard
   (Actual data rate may vary depending on environment and equipment.)

   * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)
   ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations
   *** Bluetooth version may change with updates. See the Wi-Fi chip vendor's website for details.

   Expansion Slots
   1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
   ? AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
   ? AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
   ? AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

   * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

   Chipset:
   - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

   Storage Interface
   1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
   ? AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
   ? AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
   ? AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
   1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
   2 x SATA 6Gb/s connectors
   RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

   * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.

   RAID 0 and RAID 1 support for SATA storage devices

   USB
   CPU+ASMedia USB4® controller:
   - 2 x USB4® USB Type-C® ports on the back panel
   CPU:
   - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
   CPU+USB 2.0 Hub:
   - 4 x USB 2.0/1.1 ports on the back panel
   Chipset+USB 3.2 Gen 1 Hub:
   - 4 x USB 3.2 Gen 1 ports on the back panel
   Chipset:
   - 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header
   - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
   - 2 x USB 3.2 Gen 1 ports available through the internal USB header
   - 4 x USB 2.0/1.1 ports available through the internal USB headers

   Internal I/O Connectors
   1 x 24-pin ATX main power connector
   1 x 8-pin ATX 12V power connector
   1 x CPU fan header
   1 x CPU fan/water cooling pump header
   3 x system fan headers
   1 x system fan/water cooling pump header
   3 x addressable RGB Gen2 LED strip headers
   1 x RGB LED strip header
   2 x M.2 Socket 3 connectors
   2 x SATA 6Gb/s connectors
   1 x front panel header
   1 x front panel audio header
   1 x USB Type-C® header, with USB 3.2 Gen 2x2 support
   1 x USB 3.2 Gen 1 header
   2 x USB 2.0/1.1 headers
   1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only)
   1 x HDMI port*
   1 x power button
   1 x reset button
   1 x reset jumper
   1 x Clear CMOS jumper

   * Actual support may vary by CPU.

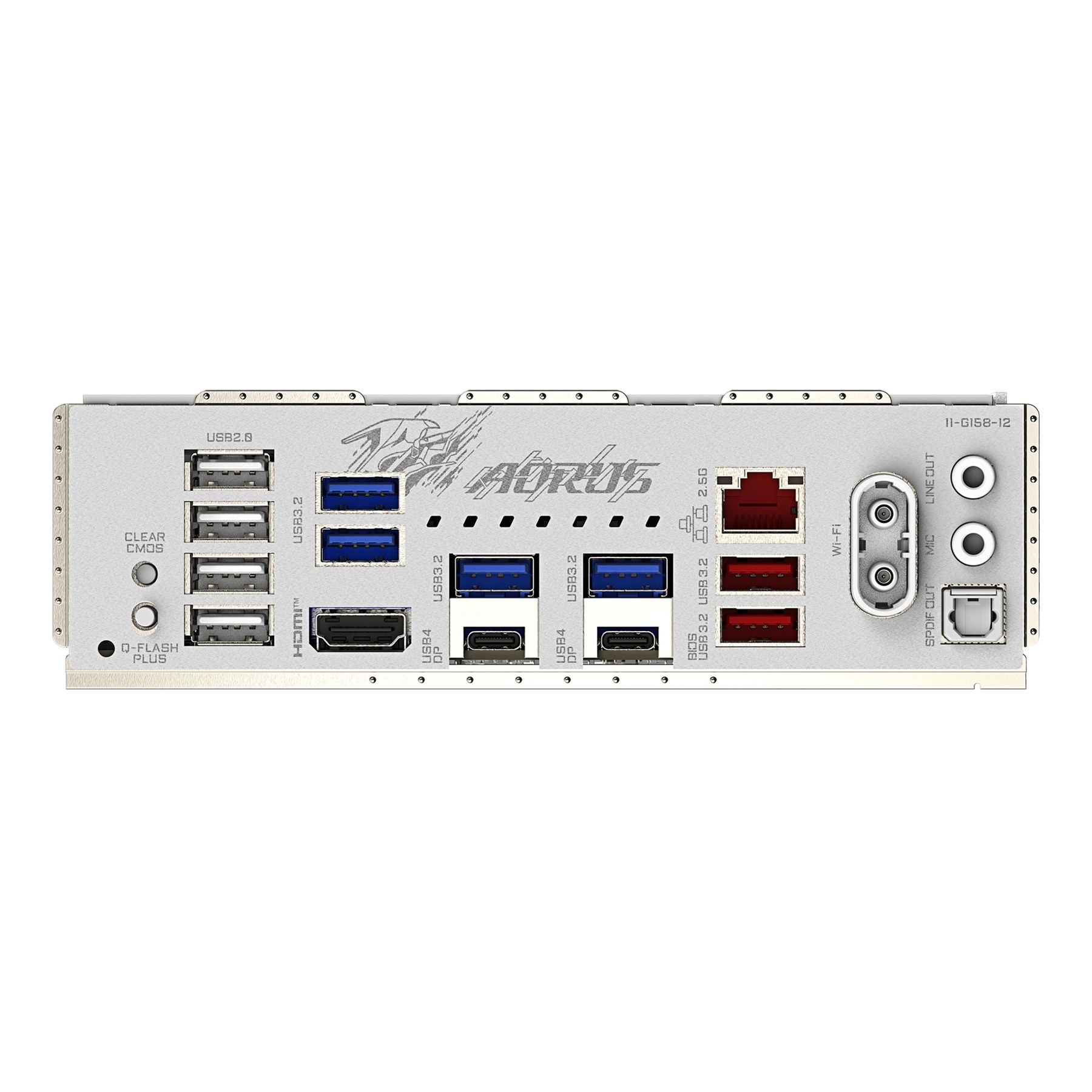

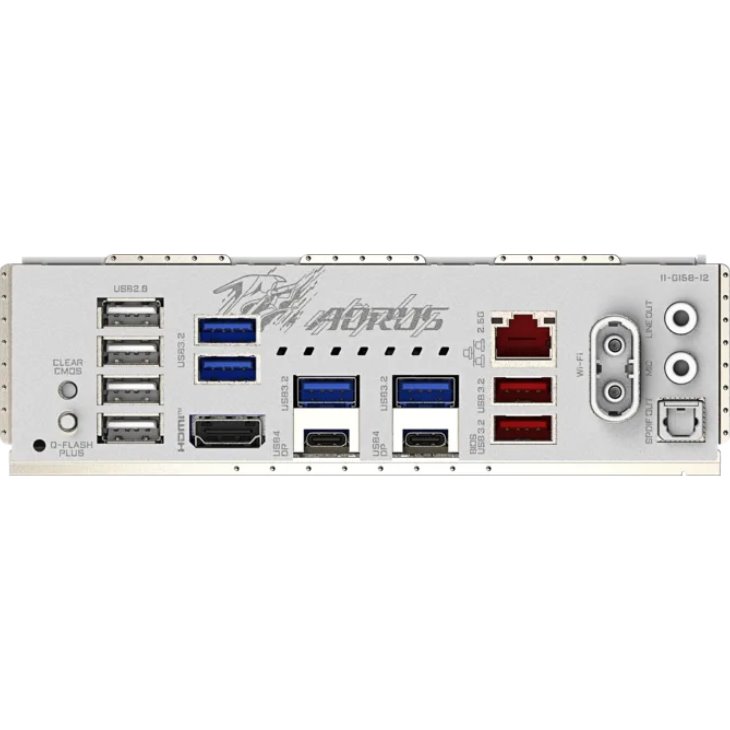

   Back Panel Connectors
   1 x Clear CMOS button
   1 x Q-Flash Plus button
   1 x HDMI port*
   4 x USB 2.0/1.1 ports
   4 x USB 3.2 Gen 1 ports
   2 x USB 3.2 Gen 2 Type-A ports (red)
   2 x USB4® USB Type-C® ports (DisplayPort*)
   1 x RJ-45 port
   2 x antenna connectors (2T2R)
   2 x audio jacks
   1 x optical S/PDIF Out connector

   * Actual support may vary by CPU.

   I/O Controller
   iTE® I/O Controller Chip

   H/W Monitoring
   Voltage detection
   Temperature detection
   Fan speed detection
   Water cooling flow rate detection
   Fan fail warning
   Fan speed control

   * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

   BIOS
   1 x 256 Mbit flash
   Use of licensed AMI UEFI BIOS
   PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

   Unique Features
   Support for GIGABYTE Control Center (GCC)

   * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

   Support for Q-Flash
   Support for Q-Flash Plus
   Support for Smart Backup

   Bundled Software
   Norton® Internet Security (OEM version)

   Operating System
   Support for Windows 11 64-bit

   Form Factor
   Micro ATX Form Factor; 24.4cm x 24.4cm
