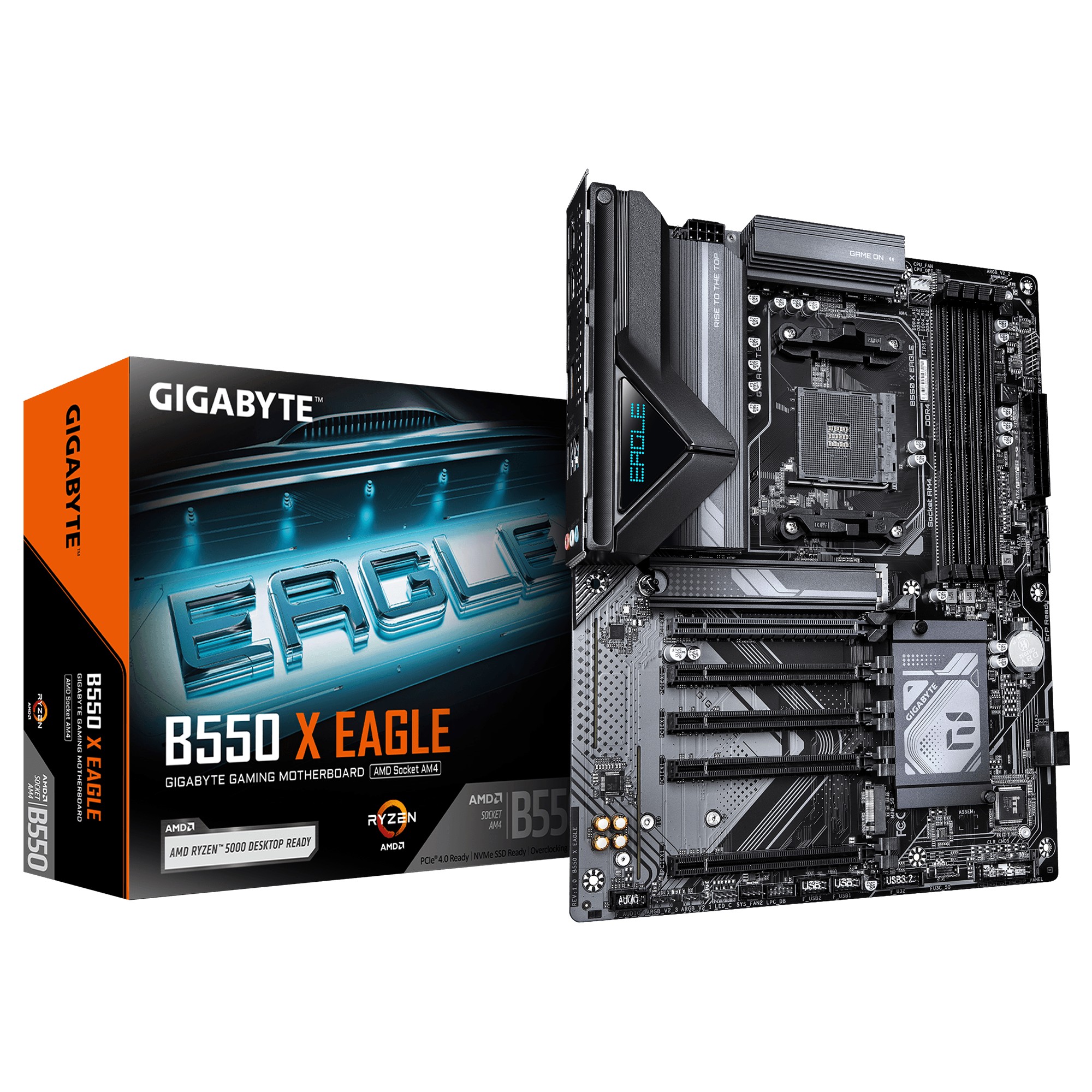

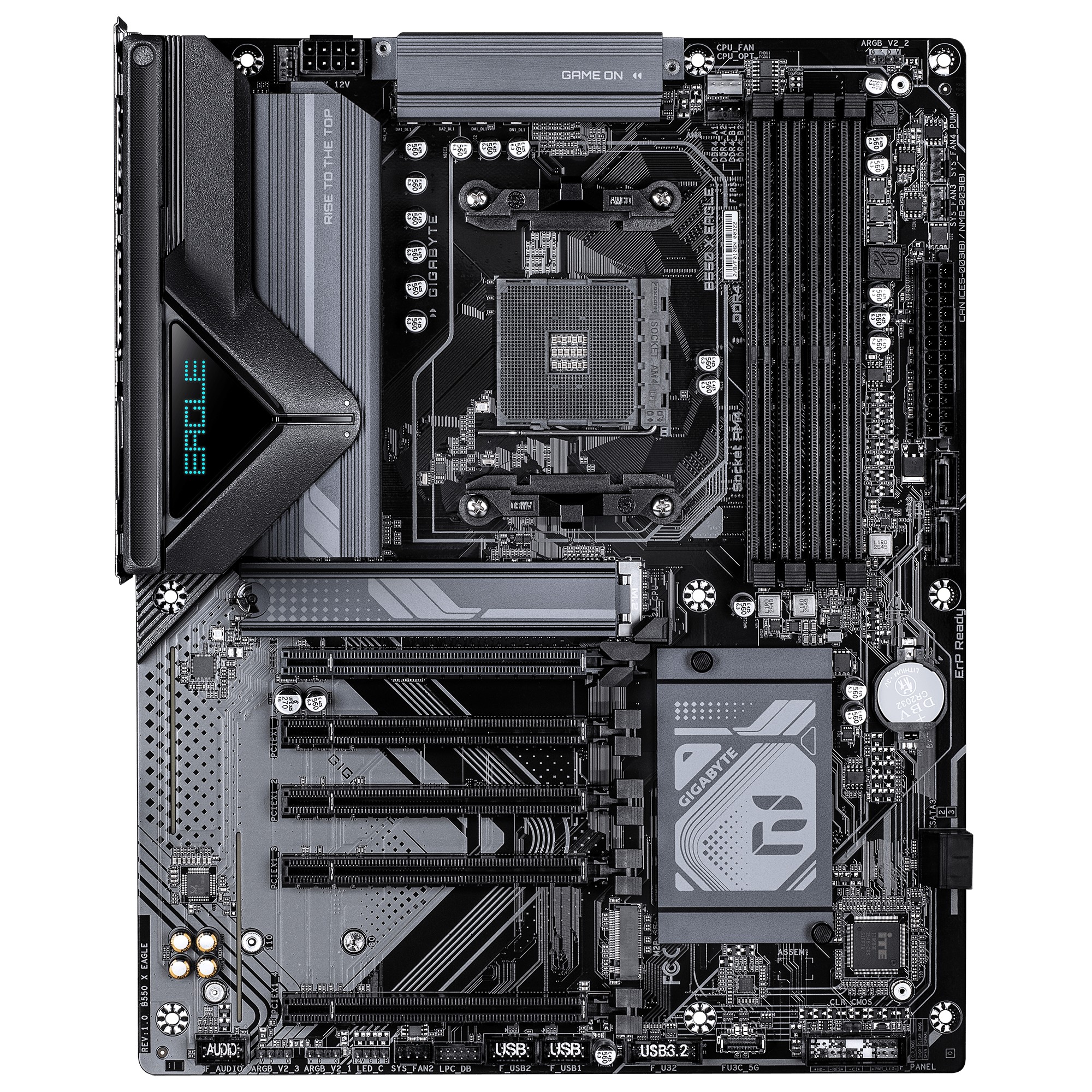

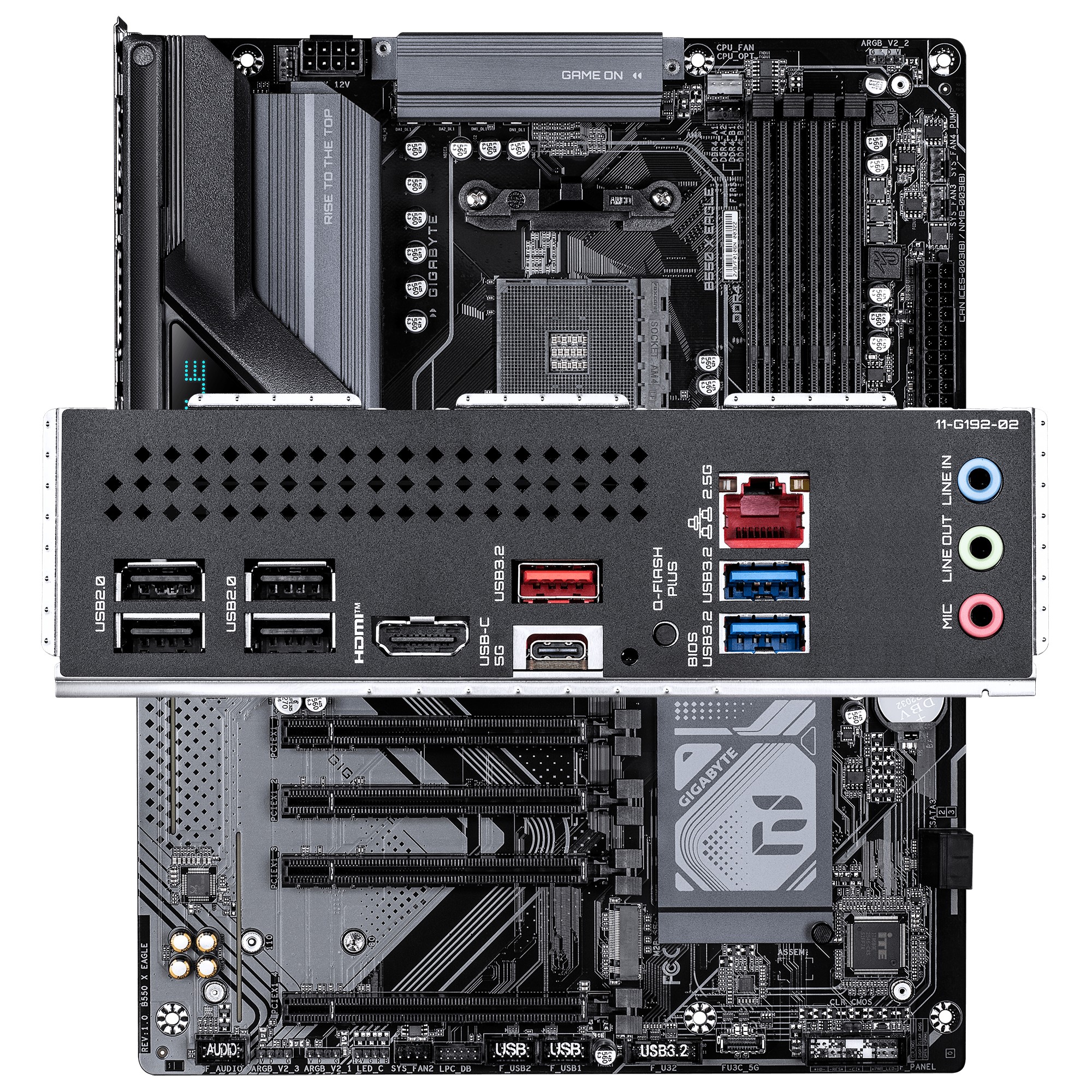

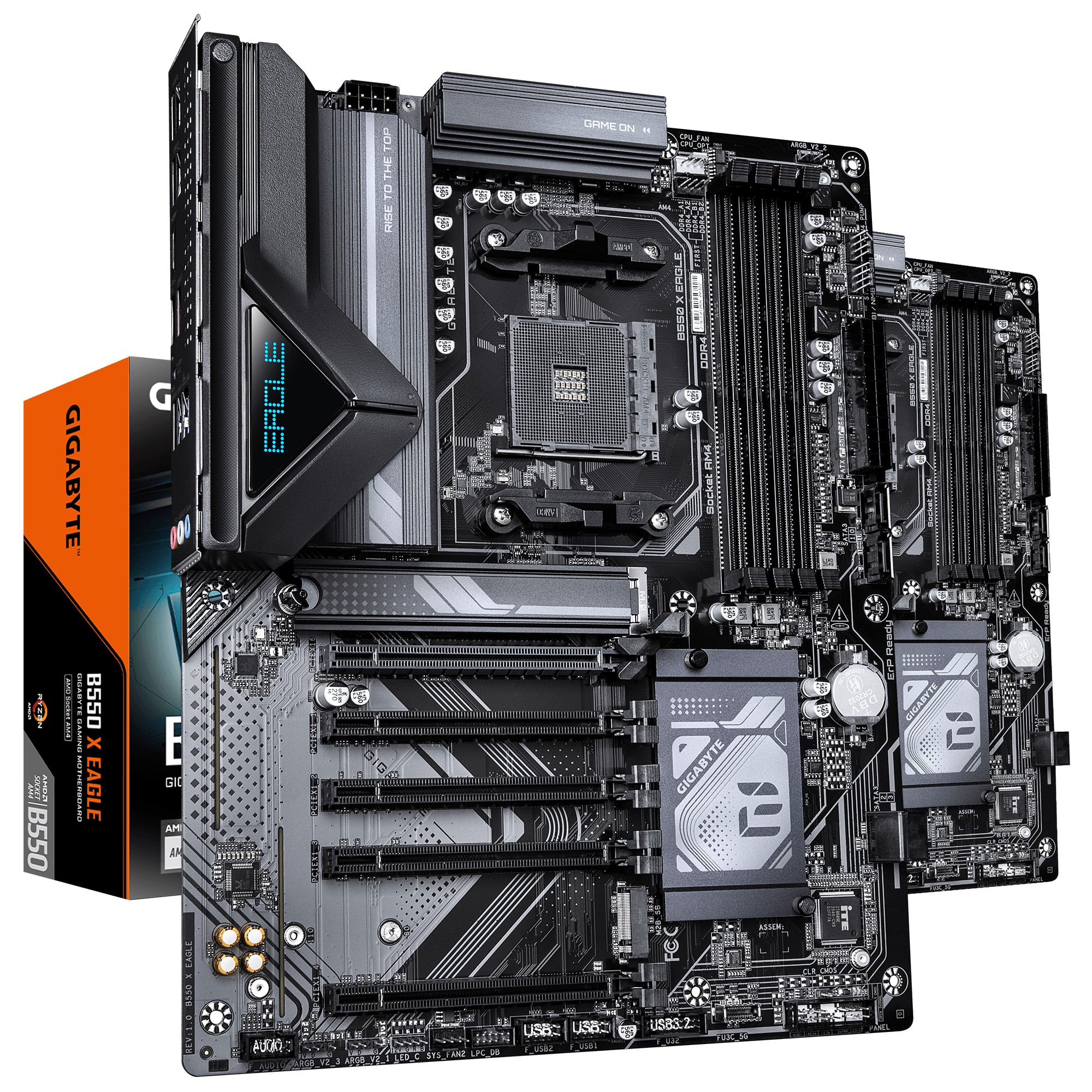

Gigabyte B550 X EAGLE Chipset: AMD B550 Rozměrový formát: ATX Form Factor; 30.5cm x 24.4cm Podpora pro procesory:  *AMD Ryzen™ 5000 G-Series Processors *AMD Ryzen™ 5000 Series Processors *AMD Ryzen™ 4000 G-Series Processors *AMD Ryzen™ 3000 G-Series Processors *AMD Ryzen™ 3000 Series Processors Patice procesoru: AM4 Paměť:  *4x DDR4 DIMM sloty podporující až 128GB (32GB každý slot) paměti *Podpora pro DDR 3200/2933/2667/2400/2133 MT/s moduly *Dual channel memory architecture) *Podpora pro ECC Un-buffered DIMM 1Rx8/2Rx8 moduly *Podpora pro non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 moduly *Podpora pro XMP Grafické porty:  Integrated Graphics Processor with AMD Radeon™ Graphics support: *1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz Zvuková karta:  *Realtek® Audio CODEC *High Definition Audio *2/4/5.1/7.1-channel Ethernet: Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) Rozšiřující sloty:  1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: *AMD Ryzen™ 5000/3000 Series Processors support PCIe 4.0 x16 mode *AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support PCIe 3.0 x16 mode Chipset: *4 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2, PCIEX1_3, PCIEX1_4) RAID řadič: RAID 0, RAID 1, RAID 10 Úložný prostor:  1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs: *AMD Ryzen™ 5000/3000 Series Processors support SATA and PCIe 4.0 x4/x2 SSDs *AMD Ryzen™ 5000 G/4000 G/3000 G Series Processors support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 3.0 x4/x2 SSDs 4 x SATA 6Gb/s connectors USB:  CPU: *AMD Ryzen™ 5000/3000 Series Processors support one USB 3.2 Gen 2 Type-A port (red) on the back panel *AMD Ryzen™ 5000 G/4000 G/3000 G-Series Processors support one USB 3.2 Gen 1 port (red) on the back panel *1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support *2 x USB 3.2 Gen 1 ports on the back panel Chipset: *1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header *2 x USB 3.2 Gen 1 ports available through the internal USB header *4 x USB 2.0/1.1 ports available through the internal USB headers Chipset+USB 2.0 Hub: *4 x USB 2.0/1.1 ports on the back panel Interní porty:  Napájení *1× 24-pin ATX main power connector *1× 8-pin ATX 12V power connector *1× CPU fan header *1× CPU fan / water cooling pump header *3× system fan headers *1× system fan / water cooling pump header Související s úložištěm *2× M.2 Socket 3 connectors *4× SATA 6Gb/s connectors USB *1× USB Type-C header, USB 3.2 Gen 1 *1× USB 3.2 Gen 1 header *2× USB 2.0/1.1 headers Ostatní *3× addressable RGB Gen2 LED strip headers *1× RGB LED strip header *1× front panel header *1× front panel audio header *1× Clear CMOS jumper Porty na zadním panelu:  *4 x USB 2.0/1.1 ports *1 x HDMI port (Note) *1 x USB 3.2 Gen 2 Type-A (Note)/USB 3.2 Gen 1 port (red) *1 x USB Type-C® port, with USB 3.2 Gen 1 support *1 x Q-Flash Plus button *1 x RJ-45 port *2 x USB 3.2 Gen 1 ports *3 x audio jacks BIOS:  *1 x 128 Mbit flash *Use of licensed AMI UEFI BIOS *PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 H/W Monitorování:  *Voltage detection *Temperature detection *Fan speed detection *Water cooling flow rate detection *Fan fail warning *Fan speed control OS: Podpora pro Windows 11 64-bit a Windows 10 64-bit
