Popis produktu:

REPAIRED, only motherboard withou acces.

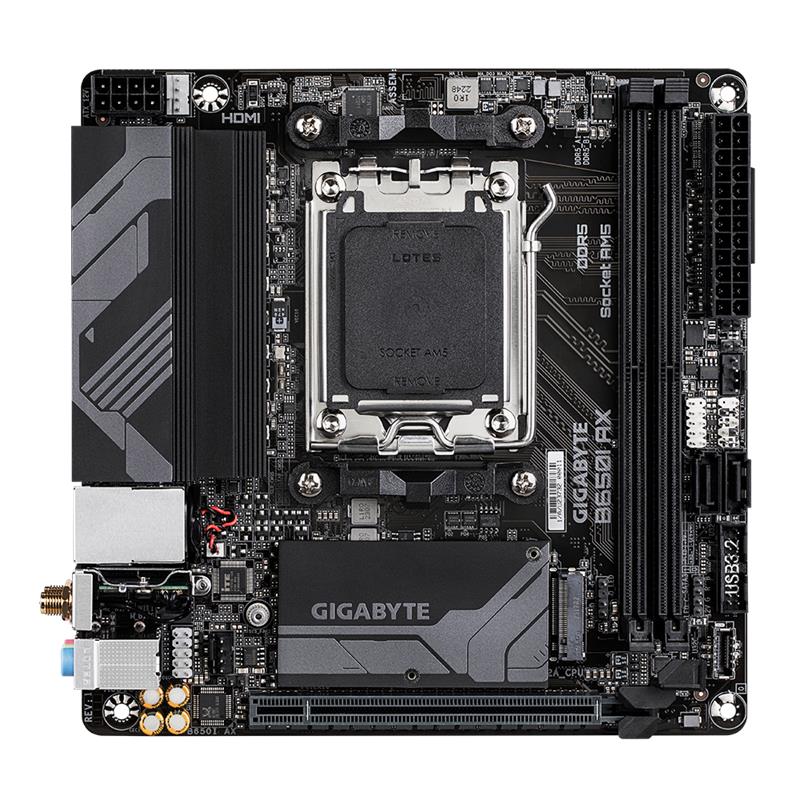

B650I AX

   AMD Socket AM5:Supports AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors
   Unparalleled Performance:5+2+1 Phases Digital VRM Solution
   Dual Channel DDR5:2*SMD DIMMs with AMD EXPO™ & Intel® XMP Memory Module Support
   SuperSpeed Storage:PCIe 4.0 x4 M.2 Connector
   EZ-Latch:PCIe x16 Slot with Quick Release Design
   Fast Networks:Wi-Fi 6E 802.11ax & 2.5GbE LAN
   Extended Connectivity:DP, HDMI
   Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
   Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card


   CPU
       AMD Socket AM5, support for: AMD Ryzen™ 7000/ Ryzen™ 8000 Series Processors
   (Please refer "CPU Support List" for more information.)
   Chipset
       AMD B650
   Memory
       Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
       2 x DDR5 DIMM sockets supporting up to 96 GB (48 GB single DIMM capacity) of system memory
       Dual channel memory architecture
       Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
       Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
   (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
   Onboard Graphics
   Integrated Graphics Processor:
       1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz
       * Support for DisplayPort 1.4 version.
       1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
       * Support for HDMI 2.1 version and HDCP 2.3.
       ** Support native HDMI 2.1 TMDS compatible ports.
   (Graphics specifications may vary depending on CPU support.)
   Audio
       Realtek® Audio CODEC
       High Definition Audio
       2/4/5.1/7.1-channel
       * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
   LAN
       Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
   Wireless Communication module
   Realtek® Wi-Fi 6E RTL8852CE
       WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
       BLUETOOTH 5.3
       Support for 11ax 160MHz wireless standard
   (Actual data rate may vary depending on environment and equipment.)
   Expansion Slots
   1 x PCI Express x16 slot, integrated in the CPU:
       AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x16 mode
       AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
       AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
       * The PCIEX16 slot can only support a graphics card or an NVMe SSD.
   Storage Interface
   1 x M.2 connector, integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs:
       AMD Ryzen™ 7000 Series Processors support PCIe 4.0 x4/x2 SSDs
       AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
       AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
   2 x SATA 6Gb/s connectors
   RAID 0 and RAID 1 support for NVMe SSD storage devices
   RAID 0 and RAID 1 support for SATA storage devices
   USB
   CPU:
       1 x USB Type-C® port on the back panel, with USB 3.2 Gen 1 support
       1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
       1 x USB 2.0/1.1 port on the back panel
   Chipset:
       1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
       3 x USB 3.2 Gen 1 ports (1 port on the back panel, 2 ports available through the internal USB header)
       4 x USB 2.0/1.1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
   Internal I/O Connectors
       1 x 24-pin ATX main power connector
       1 x 8-pin ATX 12V power connector
       1 x CPU fan header
       2 x system fan headers
       1 x addressable LED strip header
       1 x RGB LED strip header
       1 x M.2 Socket 3 connector
       2 x SATA 6Gb/s connectors
       1 x front panel header
       1 x front panel audio header
       1 x speaker header
       1 x USB Type-C® header, with USB 3.2 Gen 1 support
       1 x USB 3.2 Gen 1 header
       1 x USB 2.0/1.1 header
       1 x Clear CMOS jumper
       1 x chassis intrusion header

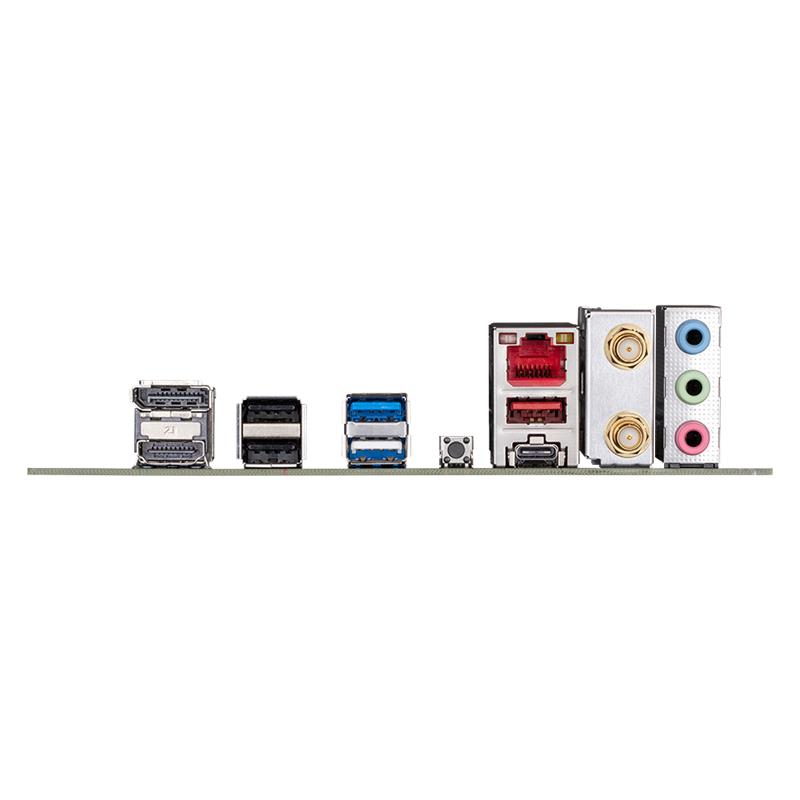

   Back Panel Connectors
       1 x DisplayPort
       1 x HDMI port
       1 x USB Type-C® port, with USB 3.2 Gen 1 support
       1 x USB 3.2 Gen 2 Type-A port (red)
       1 x USB 3.2 Gen 1 port
       3 x USB 2.0/1.1 ports
       1 x Q-Flash Plus button
       1 x RJ-45 port
       2 x SMA antenna connectors (2T2R)
       3 x audio jacks
   I/O Controller
       iTE® I/O Controller Chip
   H/W Monitoring
       Voltage detection
       Temperature detection
       Fan speed detection
       Water cooling flow rate detection
       Fan fail warning
       Fan speed control
       * Whether the fan speed control function is supported will depend on the fan you install.
   BIOS
       1 x 256 Mbit flash
       Use of licensed AMI UEFI BIOS
       PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
   Unique Features
       Support for GIGABYTE Control Center (GCC)
       * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
       Support for Q-Flash
       Support for Q-Flash Plus
   Bundled Software
       Norton® Internet Security (OEM version)
       LAN bandwidth management software
   Operating System
       Support for Windows 11 64-bit
       Support for Windows 10 64-bit
   Form Factor
       Mini-ITX Form Factor; 17.0cm x 17.0cm
