Popis produktu:

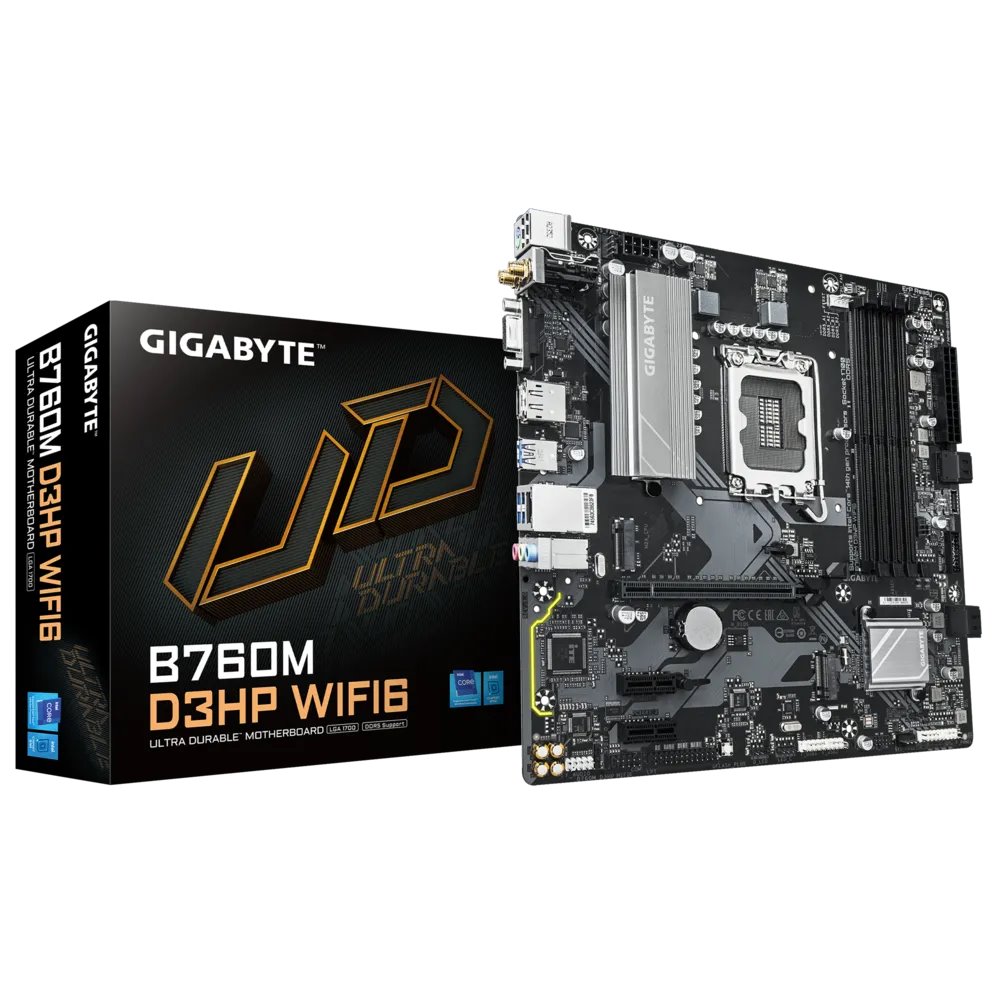

B760M D3HP WIFI6

   Supports Intel® Core™ 14th/ 13th /12th processors
   Unparalleled Performance:Hybrid 4+1+1 Phases Digital VRM Solution
   Dual Channel DDR5:4*DIMMs XMP Memory Module Support
   Next Generation Storage:2*PCIe 4.0 x4 M.2 Connectors
   Fast Networks:GbE LAN & Wi-Fi 6 802.11ax
   Extended Connectivity:Front USB-C® 5Gb/s, DP, HDMI, D-Sub
   Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
   Q-Flash Plus:Update BIOS Without Installing the CPU, Memory and Graphics Card

   CPU
   LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
   (Go to GIGABYTE's website for the latest CPU support list.)
   L3 cache varies with CPU
   Chipset
   Intel® B760 Express Chipset
   Memory
   14th and 13th Generation Intel® Core™ i9/i7 Processors:
   - Support for DDR5 5600/5200/4800/4400 MT/s memory modules
   13th Generation Intel® Core™ i5/i3 and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors:
   - Support for DDR5 4800/4400 MT/s memory modules

   4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
   Dual channel memory architecture
   Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
   Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
   Support for Extreme Memory Profile (XMP) memory modules
   (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)
   Onboard Graphics
   Integrated Graphics Processor-Intel® HD Graphics support:
   - 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
   - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

   * Support for HDMI 2.1 version and HDCP 2.3.
   ** Support for native HDMI 2.1 TMDS compatible ports.

   - 1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

   * Support for DisplayPort 1.2 version and HDCP 2.3

   (Graphics specifications may vary depending on CPU support.)
   Support for up to triple-display at the same time
   Audio
   Realtek® Audio CODEC
   High Definition Audio
   2/4/5.1/7.1-channel

   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

   Support for S/PDIF Out
   LAN
   Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
   Wireless Communication module
   Realtek® Wi-Fi 6 RTL8851BE
   - WIFI a, b, g, n, ac, ax, supporting 2.4/5 GHz carrier frequency bands
   - BLUETOOTH 5.3
   - Support for 11ax 80MHz wireless standard
   (Actual data rate may vary depending on environment and equipment.)
   Expansion Slots
   CPU:
   - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16

   * The PCIEX16 slot can only support a graphics card or an NVMe SSD.

   Chipset:
   - 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1
   Storage Interface
   CPU:
   - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
   Chipset:
   - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
   - 4 x SATA 6Gb/s connectors
   RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
   USB
   Chipset:
   - 1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header
   - 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
   - 2 x USB 2.0/1.1 ports on the back panel
   Chipset+USB 2.0 Hub:
   - 4 x USB 2.0/1.1 ports available through the internal USB headers

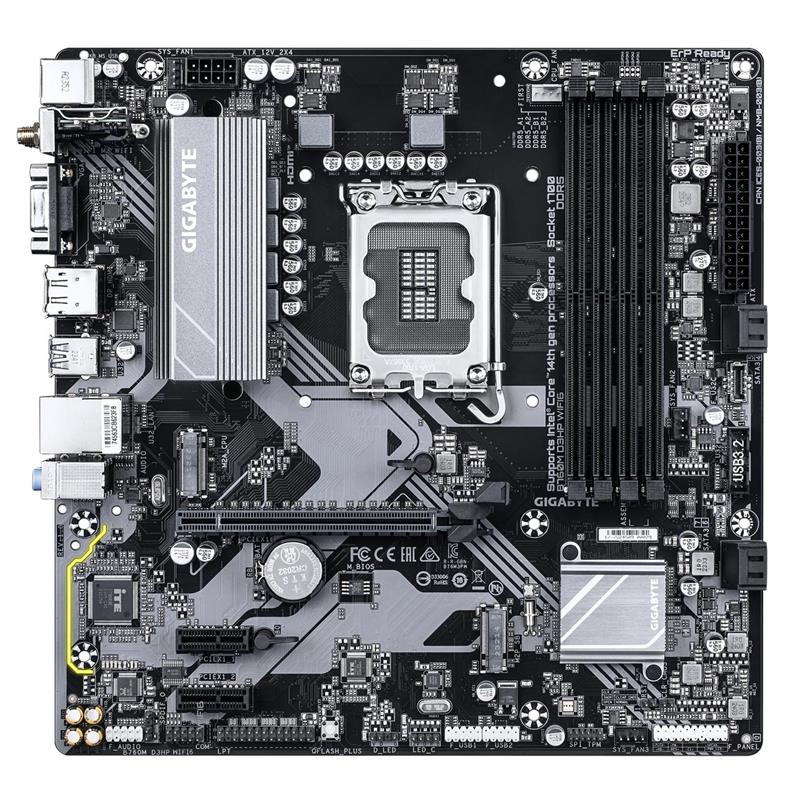

   Internal I/O Connectors
   1 x 24-pin ATX main power connector
   1 x 8-pin ATX 12V power connector
   1 x CPU fan header
   3 x system fan headers
   1 x addressable LED strip header
   1 x RGB LED strip header
   2 x M.2 Socket 3 connectors
   4 x SATA 6Gb/s connectors
   1 x front panel header
   1 x front panel audio header
   1 x USB Type-C® header, with USB 3.2 Gen 1 support
   1 x USB 3.2 Gen 1 header
   2 x USB 2.0/1.1 headers
   1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only)
   1 x serial port header
   1 x parallel port header
   1 x S/PDIF Out header
   1 x Q-Flash Plus button
   1 x reset jumper
   1 x Clear CMOS jumper

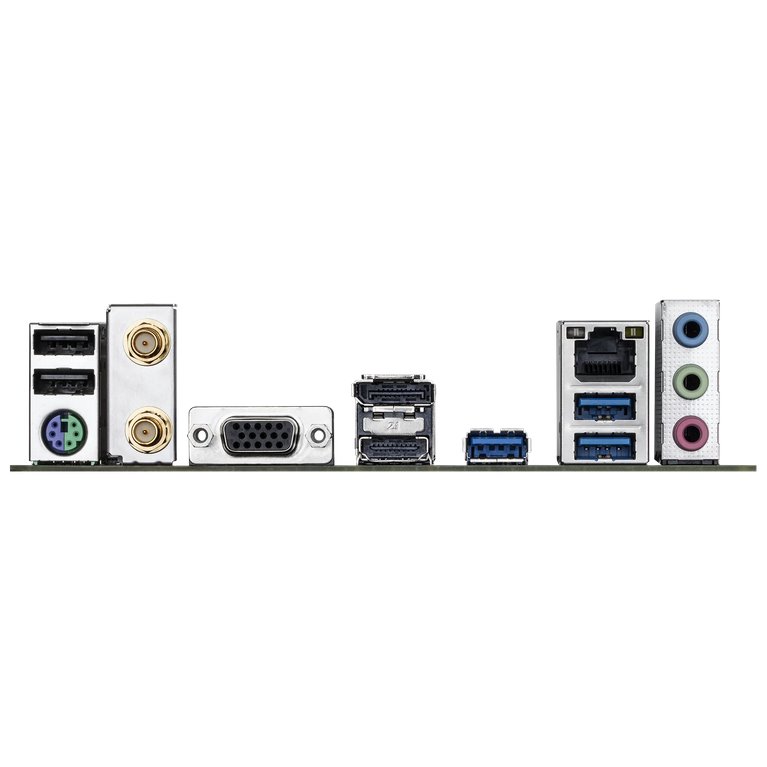

   Back Panel Connectors
   2 x USB 2.0/1.1 ports
   1 x PS/2 keyboard/mouse port
   2 x SMA antenna connectors (1T1R)
   1 x D-Sub port*
   1 x DisplayPort*
   1 x HDMI port*
   3 x USB 3.2 Gen 1 ports
   1 x RJ-45 port
   3 x audio jacks

   * Actual support may vary by CPU
   I/O Controller
   iTE® I/O Controller Chip
   H/W Monitoring
   Voltage detection
   Temperature detection
   Fan speed detection
   Water cooling flow rate detection
   Fan fail warning
   Fan speed control

   * Whether the fan speed control function is supported will depend on the fan you install
   BIOS
   1 x 128 Mbit flash
   Use of licensed AMI UEFI BIOS
   PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
   Unique Features
   Support for GIGABYTE Control Center (GCC)

   * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

   Support for Q-Flash
   Support for Q-Flash Plus
   Bundled Software
   Norton® Internet Security (OEM version)
   LAN bandwidth management software
   Operating System
   Support for Windows 11 64-bit
   Support for Windows 10 64-bit
   Form Factor
   Micro ATX Form Factor; 24.4cm x 24.4cm
