Popis produktu:

Key Features

   X3D Turbo Mode : Unleash new era gaming performance
   DDR5 OC up to 8200MT/s
   AMD Socket AM5 : Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
   Digital twin 8+2+2 phases VRM solution
   Dual Channel DDR5 : 4*DIMMs with AMD EXPO™Memory Module Support
   WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
   EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
   EZ-Latch Click : M.2 heatsinks with screwless design
   Ultra-Fast Storage : 2*M.2 slots, including PCIe 5.0 x4
   Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
   Fast Networking : 2.5 GbE LAN & Wi-Fi 6E with directional Ultra-high gain antenna
   Extended Connectivity : HDMI, 2*Displayport
   PCIe UD Slot : SMD PCIe 5.0 Armor for enhanced graphics card support

   CPU
   AMD Socket AM5, support for:
   AMD Ryzen™ 9000 Series Processors/
   AMD Ryzen™ 8000 Series Processors/
   AMD Ryzen™ 7000 Series Processors
   (Go to GIGABYTE's website for the latest CPU support list.)

   Chipset
   AMD B850

   Memory
   Support for DDR5 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5800(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules.
   4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
   Dual channel memory architecture
   Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
   Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
   (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

   Onboard Graphics
   Integrated Graphics Processor with AMD Radeon™ Graphics support:
   - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

   * Support for HDMI 2.1 version and HDCP 2.3, and HDR.
   ** Support for native HDMI 2.1 TMDS compatible ports.

   - 2 x DisplayPorts, supporting a maximum resolution of 3840x2160@144 Hz

   * Support for DisplayPort 1.4 version.

   (Graphics specifications may vary depending on CPU support.)
   Support for up to triple-display at the same time

   Audio
   Realtek® Audio CODEC
   High Definition Audio
   2/4/5.1/7.1-channel

   * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

   LAN
   Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

   Wireless Communication module
   Realtek® Wi-Fi 6E RTL8852CE
   - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
   - BLUETOOTH 5.3
   - Support for 11ax 160MHz wireless standard
   (Actual data rate may vary depending on environment and equipment.)

   Expansion Slots
   1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
   AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
   AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
   AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

   * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

   Chipset:
   - 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4)

   Storage Interface
   1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
   AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
   AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
   AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs
   1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
   AMD Ryzen™ 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs
   AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
   AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs
   4 x SATA 6Gb/s connectors
   RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

   * RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.

   RAID 0, RAID 1, and RAID 10 support for SATA storage devices

   USB
   CPU:
   - 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support
   - 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
   CPU+USB 2.0 Hub:
   - 4 x USB 2.0/1.1 ports on the back panel
   Chipset:
   - 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
   - 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
   - 4 x USB 2.0/1.1 ports available through the internal USB headers

   Internal I/O Connectors
   1 x 24-pin ATX main power connector
   1 x 8-pin ATX 12V power connector
   1 x CPU fan header
   1 x CPU fan/water cooling pump header
   1 x system fan header
   1 x system fan/water cooling pump header
   3 x addressable RGB Gen2 LED strip headers
   1 x RGB LED strip header
   4 x SATA 6Gb/s connectors
   2 x M.2 Socket 3 connectors
   1 x front panel header
   1 x front panel audio header
   1 x USB Type-C® header, with USB 3.2 Gen 2 support
   1 x USB 3.2 Gen 1 header
   2 x USB 2.0/1.1 headers
   1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
   1 x reset button
   1 x reset jumper
   1 x Clear CMOS jumper

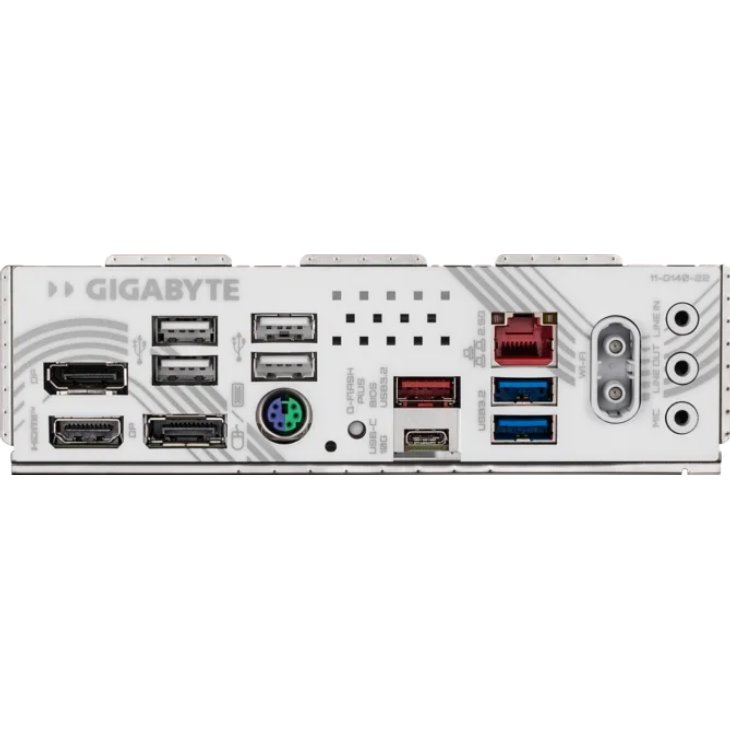

   Back Panel Connectors
   1 x HDMI port (Note)
   2 x DisplayPorts (Note)
   1 x Q-Flash Plus button
   1 x PS/2 keyboard/mouse port
   1 x USB 3.2 Gen 2 Type-A port (red)
   1 x USB Type-C® port, with USB 3.2 Gen 2 support
   2 x USB 3.2 Gen 1 ports
   4 x USB 2.0/1.1 ports
   1 x RJ-45 port
   2 x antenna connectors (2T2R)
   3 x audio jacks

   (Note) Actual support may vary by CPU.

   I/O Controller
   iTE® I/O Controller Chip

   H/W Monitoring
   Voltage detection
   Temperature detection
   Fan speed detection
   Water cooling flow rate detection
   Fan fail warning
   Fan speed control

   * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

   BIOS
   1 x 256 Mbit flash
   Use of licensed AMI UEFI BIOS
   PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

   Unique Features
   Support for GIGABYTE Control Center (GCC)

   * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

   Support for Q-Flash
   Support for Q-Flash Plus
   Support for Smart Backup

   Bundled Software
   Norton® Internet Security (OEM version)
   LAN bandwidth management software

   Operating System
   Support for Windows 11 64-bit
   Support for Windows 10 64-bit

   Form Factor
   Micro ATX Form Factor; 24.4cm x 24.4cm
