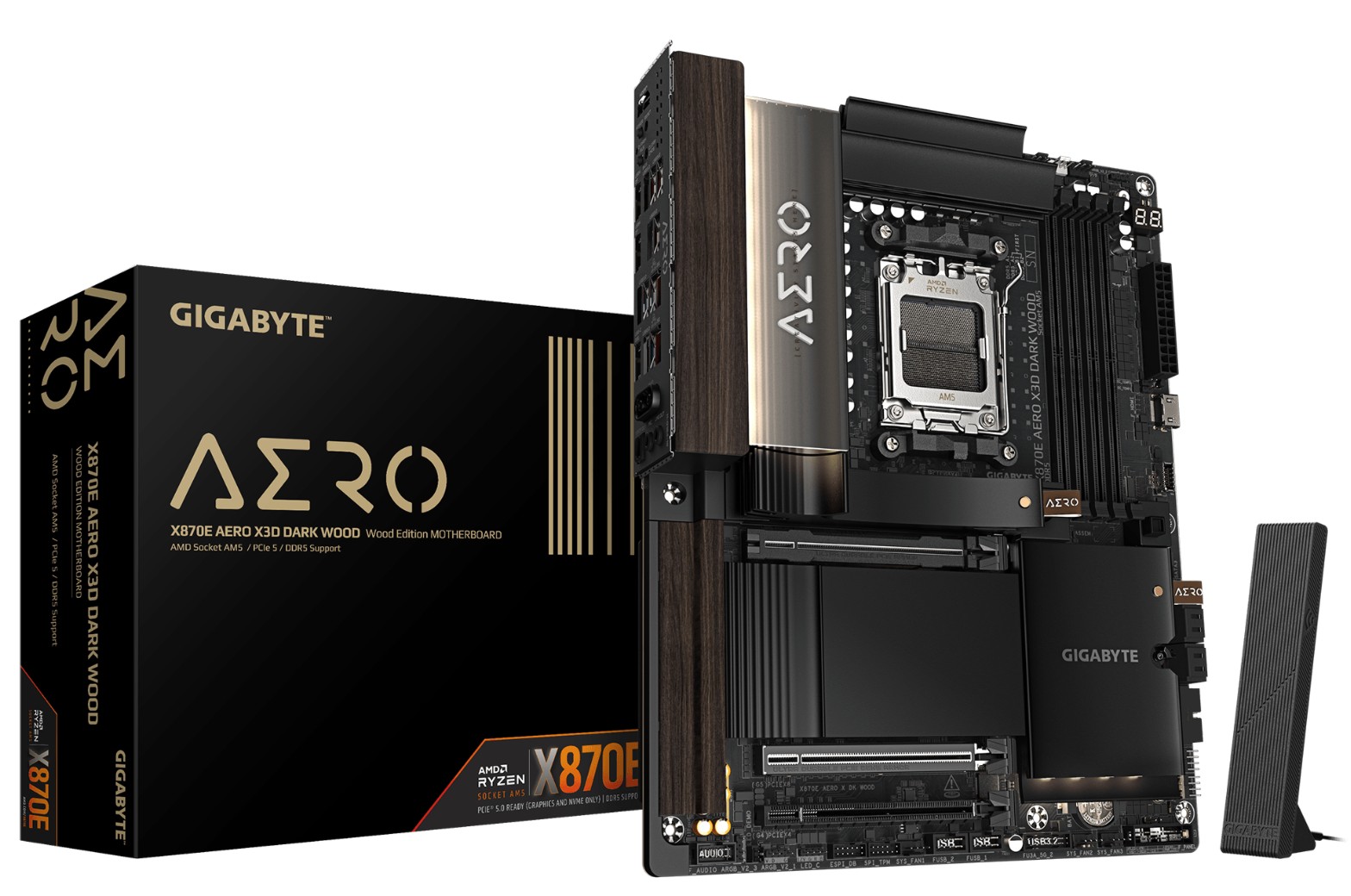

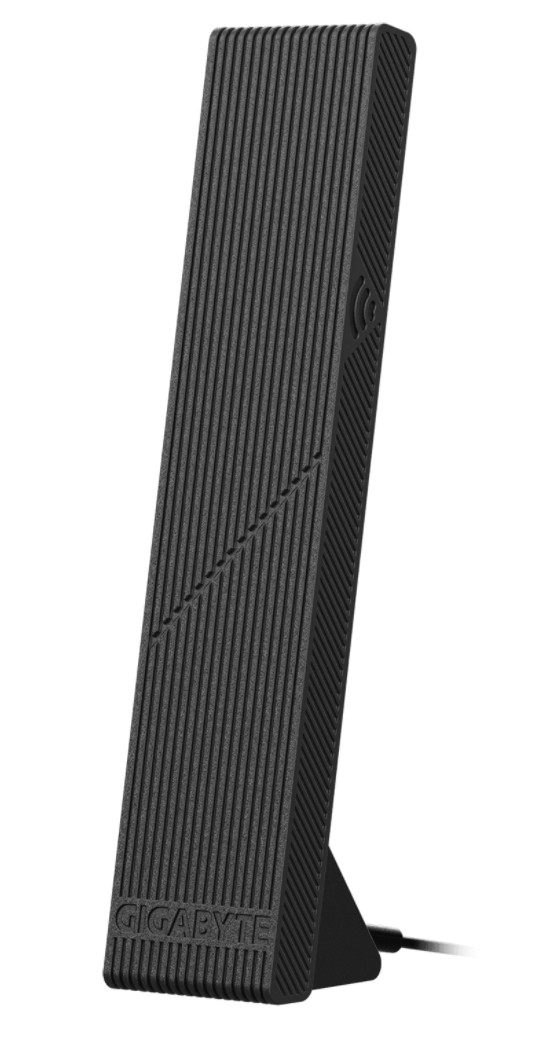

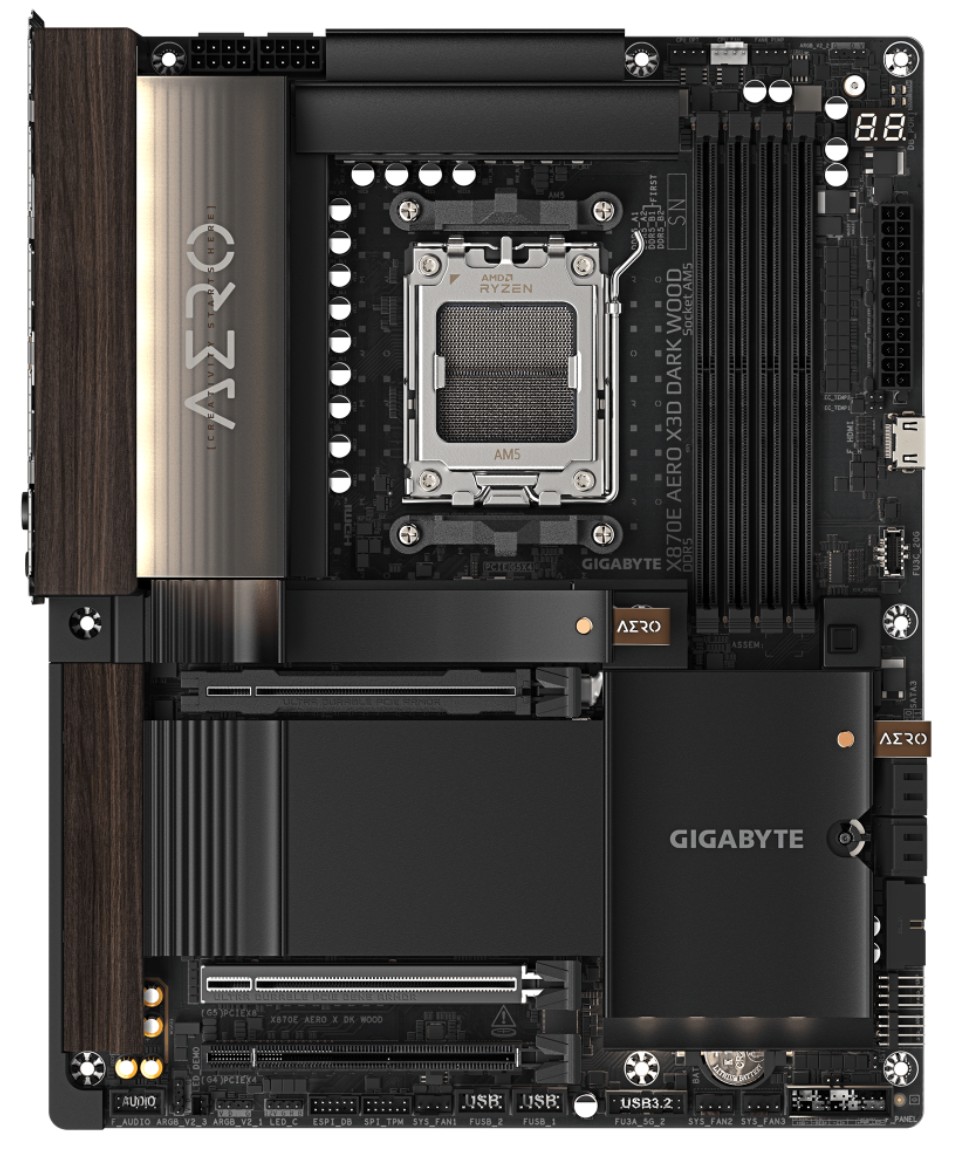

Gigabyte X870E AERO X3D DARK Chipset: AMD X870E Rozměrový formát: ATX Form Factor; 30.5cm x 24.4cm Podpora pro procesory:  *AMD Ryzen 9000 Series Processors *AMD Ryzen 8000 Series Processors *AMD Ryzen 7000 Series Processors Patice procesoru: AM5 Paměť:  *Podpora pro: DDR5 9000(O.C) /8800(O.C) /8600(O.C) /8400(O.C) / 8000(O.C) / 7800(O.C) / 7600(O.C) / 7800(O.C) / 7600(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C) / 6200(O.C) / 6000(O.C) / 5600(O.C) / 5200 / 4800 / 4400 MT/s memory modules. *Podpora pro DDR5 5200/4800 MT/s memory modules *4x DDR5 DIMM sloty s podporou až 256GB (64GB každý slot) paměti *Dual channel architektura *Podpora pro non-ECC Un-buffered DIMM paměťové moduly *Podpora pro EXPO a XMP Zvuková karta:  *Realtek ALC1220 CODEC *High Definition  Audio 2/4/5.1/7.1-channel *Podpora pro S/PDIF Out= Ethernet: 2 x Realtek® 5GbE LAN chips (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) WLAN + Bluetooth: MediaTek Wi-Fi 7 MT7927, RZ738 *802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands *BLUETOOTH 5.4 *Podpora pro 11be 320MHz wireless standard Rozšiřující sloty:  *1 x PCI Express x16 slot (PCIEX16), integrated in the CPU *1 x PCI Express x16 slot (PCIEX8), integrated in the CPU *1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) chipset RAID řadič: RAID 0, RAID 1, RAID 5, RAID 10 Úložný prostor:  *1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2580/2280 SSDs *1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs *2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs *4 x SATA 6Gb/s connectors USB:  CPU+ASMedia USB4® controller: *2 x USB4® USB Type-C® ports on the back panel CPU: *1 x USB 3.2 Gen 2 Type-A port (red) on the back panel Chipset+USB 3.2 Gen 1 Hub: * 4 x USB 3.2 Gen 1 ports available through the internal USB headers Chipset: *2 x USB Type-C® ports, with USB 3.2 Gen 2x2 support (1 port on the back panel, 1 port available through the internal USB header) *4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel *3 x USB 3.2 Gen 1 ports on the back panel *4 x USB 2.0/1.1 ports available through the internal USB headers Interní porty:  Napájení *1× 24-pin ATX main power connector *2× 8-pin ATX 12V power connectors *1× CPU fan header *1× CPU fan / water cooling pump header *4× system fan headers *2× system fan / water cooling pump headers Související s úložištěm *4× M.2 Socket 3 connectors *4× SATA 6Gb/s connectors USB *1× USB Type-C header, USB 3.2 Gen 2x2 *2× USB 3.2 Gen 1 headers *2× USB 2.0/1.1 headers Ostatní *3× addressable RGB Gen2 LED strip headers *1× RGB LED strip header *1× front panel header *1× front panel audio header *1× noise detection header *1× Trusted Platform Module header *1× HDMI port *1× reset jumper *1× Clear CMOS jumper *2× temperature sensor headers Porty na zadním panelu:  *1 x Q-Flash Plus button *1 x Clear CMOS button *1 x power button *1 x reset button *1 x HDMI port (Note) *2 x USB4® USB Type-C® ports (DisplayPorts (Note)) *1 x USB Type-C® port, with USB 3.2 Gen 2x2 support *5 x USB 3.2 Gen 2 Type-A ports (red) *3 x USB 3.2 Gen 1 ports *2 x RJ-45 ports *2 x antenna connectors (2T2R) *2 x audio jacks *1 x optical S/PDIF Out connector BIOS:  *1 x 512 Mbit flash *Use of licensed AMI UEFI BIOS *PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 H/W Monitoring: *Voltage detection *Temperature detection *Fan speed detection *Water cooling flow rate detection *Fan fail warning *Fan speed control OS: Podpora pro Windows 11 64-bit
