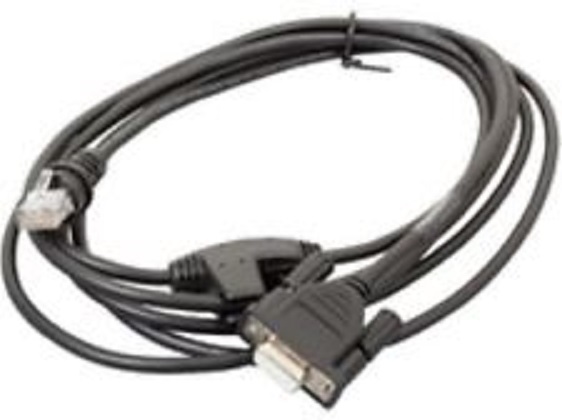

1.0 THIS SPECIFICATION ESTABLISHES A DESCRIPTION FOR A 10 CONDUCTOR, SHIELD JACKET COIL CABLE. 2.0 CABLE BASE: 115B-C-3 3.0 CONNECTOR 1 3.1 10 POSITION MODULAR PLUG STEWART 937-SP-301010-2PC-A192 OR APPROVED EQUIVALENT 3.2 OVERMOLD: SEE METROLOGIC DRAWING 70-72050A 3.3 SHIELD TREATMENT: PIN10 4.0 COIL: SEE COIL DRAWING 5.0 CONNECTOR 2 5.1 10 POSITION MODULAR PLUG STEWART 937-SP-301010-2PC-A192 OR APPROVED EQUIVALENT 5.2 OVERMOLD: SEE METROLOGIC DRAWING 36-02945A 5.3 SHIELD TREATMENT: N/C 6.0 CABLE LABEL: TO BE WRAPPED COMPLETELY AROUND CABLE 25mm 5mm FROM CONN 2 6.1 CABLE LABEL TO READ: 53004C-N-3 7.0 FLAG TAG: TO BE WRAPPED COMPLETELY AROUND CABLE 25 5mm FROM CONN 3 7.1 FLAG TAG: SEE METROLOGIC DRAWING 00-05337 8.0 PACKAGING: INDIVIDUALLY PACKED IN SEALED PLASTIC BAG WITH A BAR CODE PACKAGING LABEL AS REFERENCED IN HONEYWELL DOCUMENT #500029494 AND MARKED PER METROLOGIC CABLE REQ DOCUMENT #BW-EN-S-4372 SECTION A 9.0 COMPLIANCE REQUIREMENTS: SEE METROLOGIC CABLE REQ DOCUMENT #BW-EN-S-4372 CONN1 WIRE COLOR CONN 2 SIGNAL SCANNER REF 1 BROWN 1 SIGNAL GND 2 GREEN 2 TXD 3 RED 3 RXD 4 YELLOW 4 RTS 5 BLUE 5 CTS 6 WHITE 6 DTR 7 GRAY N/C RESERVED 8 VIOLET N/C RESERVED 9 ORANGE 9 +5VDC FROM HOST 10 DRAIN N/C SHIELD GND
