Overview

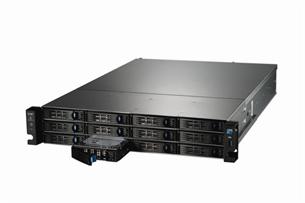

The Iomega® StorCenter™ ix12-300r Network Storage Array offers easy-to-use, powerful and affordable network storage for any workgroup, department and small- to medium-sized business. Powered by enterprise-class EMC® LifeLine™ software, the StorCenter ix12-300r is available in configurations starting at 4TB, and can be expanded up to 24TB in a single array. Robust connectivity allows simultaneous multi-protocol file and iSCSI block-level access. High performance makes the StorCenter ix12 an ideal candidate for email and database applications or as a fast backup target. High reliability features ensure maximum availability; RAID with hot-swap drives and automatic rebuild; dual hot-swap power supplies; redundant variable-speed hot-swap chassis cooling fans.

Features
Capacity: Starting at 4TB (4 x 1TB SATA-II Hard Disk Drives HDDs) with maximum capacity of 24TB (12 x 2TB SATA-II Hard Disk Drives)
4-drive disk packs enable expansion to 8 or 12 drive configurations
RAID Support: On-disk data protection and organization configurable as RAID 0, 1, 5, 6 and 10. Automatic RAID rebuild and hot swap drives.
Storage Pools: Storage Pools group drives of like size and RAID protection together to simplify management.
Expandability: Add storage capacity by simply adding drives in the unpopulated drive bays. Added drives can be brought into an existing Storage Pool or made into a new Storage Pool. Additionally, USB connected Hard Disk Drives can be attached and used as shares. The StorCenter ix12 supports read and write on Fat32, NTFS, or ext2/ext3 formatted hard disks; read only of external HFS+ formatted drives.
Sharing: Access files from any networked Windows, Mac, or Linux workstation or server for easy file sharing, data backup and print serving.
Network File Protocols Supported:
Microsoft (CIFS/SMB/Rally) FTP
Linux/UNIX (NFS) HTTP
Apple AFP/Bonjour support SNMP
Windows DFS WebDAV
VLAN tagging
Sophisticated Networking: Ethernet port bonding for load balancing, high performance bandwidth aggregation or failover; Virtual LAN (VLAN) capability simplifies management and operation by enabling devices to be logically, but not physically in the same subnet.
Data Organization and Access: Windows DFS organizes folders and files on a network, such that they appear to be all in one directory tree on a single Iomega StorCenter system, even if the folders reside on many devices in many different locations. WebDAV (Web-based Distributed Authoring and Versioning) enables viewing, adding, or deleting files on a StorCenter from the web, via HTTP or HTTPS for added security
iSCSI Support: Provides block-level access for the most efficient storage utilization, especially for database and email application performance.
High Performance: Quad-Gigabit Ethernet connectivity and high-performance embedded architecture, plus link aggregation (port bonding) provide extremely high throughput.
Active Directory Support: Allows the domain users and groups to authenticate to the Active Directory service to access the StorCenter ix12.
UPS Support: Enables an uninterruptible power supply to communicate with the system via a USB port to initiate an unattended system shutdown without data loss in the case of extended power failure.
Drive Spindown: For maximum energy efficiency, drives spin down based on user-set policy.
Email Alerts: If the device detects a problem, an email alert is sent to one or more email addresses.
Remote Access: Connect from anywhere on the Internet to access content or manage the device.
System Dashboard: Provides a one-stop summary for status information on space utilization, device, peripheral, and backup status.
VMware® Certified: HCL certified NAS (NFS) and iSCSI storage for VMware ESX (vSphere).
Microsoft Window Server Certified: Windows Server Catalog certified iSCSI storage for Windows Server 2003, Windows Server 2008, and Windows Server 2008 R2.
Citirx Certified: HCL certified NAS (NFS) and iSCSI storage for Citrix XenServer.
Replication: The StorCenter ix12 supports device-to-device (D2D) asynchronous replication based on the end-user determined policy. Replication uses the secure rsync, rsync, or remote CIFS protocols.
Security Camera: Connect Axis® and/or Panasonic network security cameras and the StorCenter ix12 captures and stores video without the need of a dedicated PC.
Total Data Protection:
Multiple network interface cards (NICs) can be configured for I/O failover
Robust username and password authorized access or integration with Microsoft Active Directory Service
Configure with RAID 0, 1, 5, 6, 10 to assure data integrity if a drive fails.
RSA® BSAFE® technology protects installs and upgrades.
Simple to use:
Easy network file sharing with Automatic configuration; ready to work with any networked computer
Management via user-friendly web interface
Event logging and e-mail notification
11 languages supported by the user interface (concurrently from different clients)
Software Compatibility: Compatible with today’s most common backup software titles, web browsers, media devices and computers
Software Iomega StorCenter™ Manager
Warranty: Three year limited warranty with product registration

Specifications
2U form factor, 12 slots for 3.5 inch SATA-II Hard Disk Drives
Intel Core2 Duo E8400 @ 3GHz CPU
2GB DDR2 Memory
Four (4) 10/100/1000 Mbps Ethernet ports (RJ 45 connector)
Four (4) SATA-II hard disk drives
RAID 0, 1, 10, 5, and 6 protection on a per-Storage Pool basis
Power Consumption
Max: 200W
Min: 110W (drives spun down)
iSCSI: 256 LUNS maximum, 256 hosts maximum
Three USB 2.0 ports; One front, two rear
LAN standards: IEEE 802.3, IEEE 802.3u
AC Voltage 100-240 VAC, 50-60 Hz
User Interface, localized in English, French, German Spanish, Italian, Portuguese, Russian, Japanese, Korean, Simplified Chinese and Traditional Chinese
Quick start guide, and HTML users manual all localized in English, French, German, Spanish, Italian

Certifications
The Iomega® StorCenter™ ix12-300 Network Storage Array has received the following certifications:
Microsoft Exchange Server 2010 - ESRP Listed
Windows Server 2003, Windows Server 2008, Windows Server 2008 R2
VMware vSphere ESX4 (iSCSI and NAS)
Citrix XenServer 5.5 (iSCSI & NFS)

Contents
Iomega® StorCenter™ ix12-300r Rackmount NAS Server
Sliding rail kit for standard 19" rack
Ethernet cable
Six Power Cords (USA, United Kingdom, Japan, European, Australia)
Printed Quick Start Guide
Solutions CD with system administration software and user manual
Service & Support: Three year standard service. Extended Service Plan is available.
