Popis produktu:

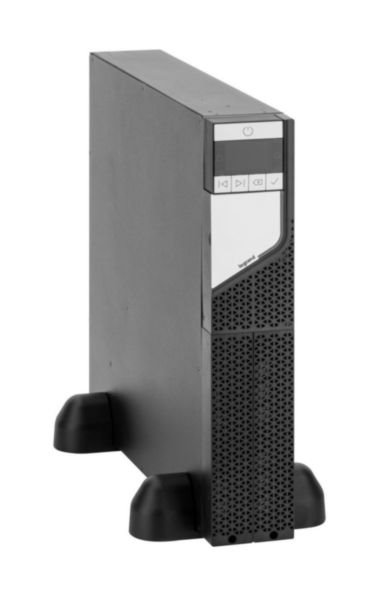

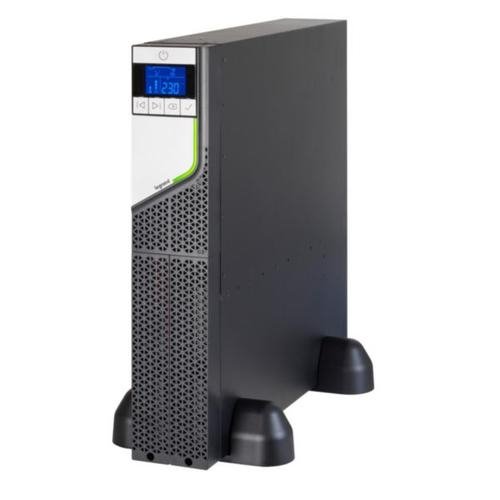

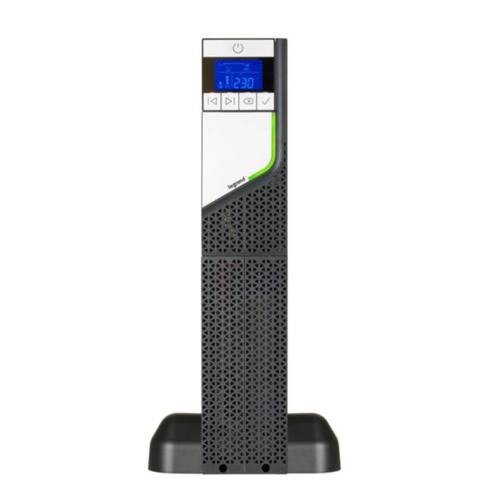

Keor SPE jednofázový linkový interaktívny vežový alebo rackový invertor pre viaceré pracovné stanice, servery, prepínače/smerovače, modemy, počítačové siete.Efektívny výstupný výkon: 800 W Vstupné napätie: 175 - 288 V Výstupné napätie: 208-240V Typ napätia: AC Počet primárnych fáz: 1 Rozmery: 88x440x440 mm Charakteristika produktu
Linka – Interaktívna
Čistý sínusový výstup
Účiník: 0,8

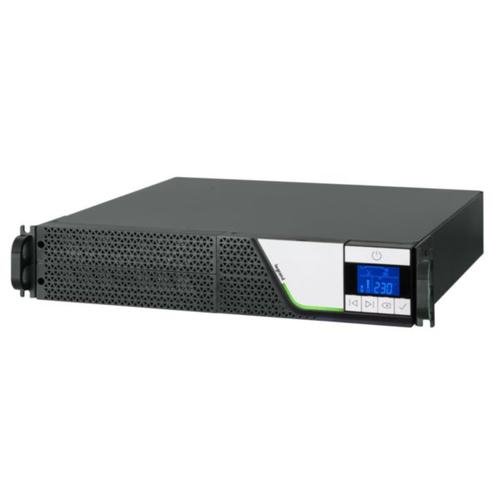

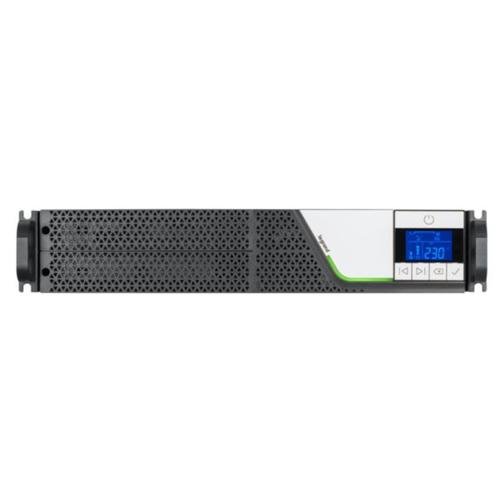

19" rack typ 2U
Konvertibilná obrazovka
Výhody produktu
Výhody

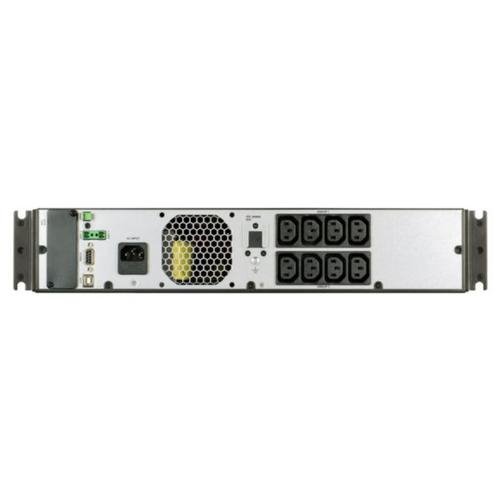

USB & RS232 port & SNMP & EPO & 2 DRY CONTACT

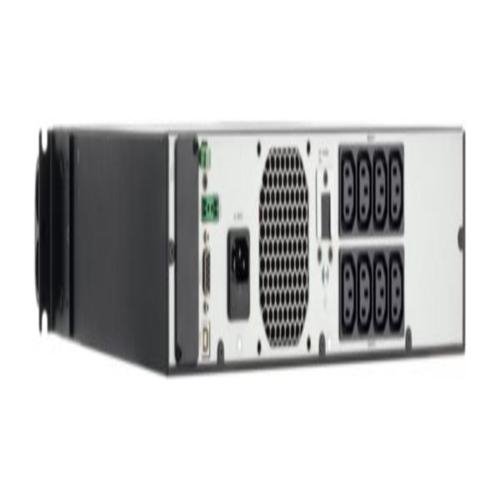

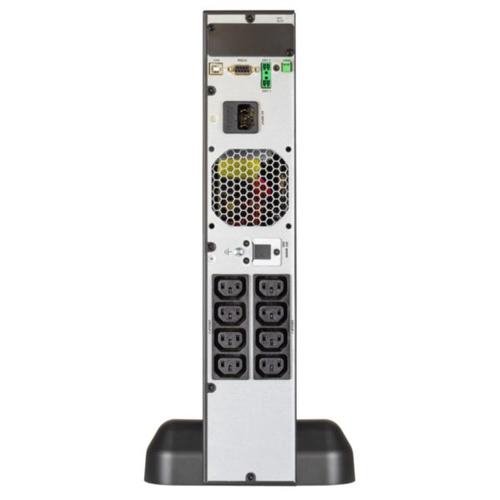

8 x 10A IEC

Technical characteristics
Input voltage 175 - 288 V
Primary frequency 47-63 Hz
Number of phases primary 1
Output voltage 208-240 V
Secondary frequency 50-60 Hz
Output effective power 800 W
Output apparent power 1000 VA
USB interface Yes
With communication interface RS-232 No
SNMP Yes
Voltage type AC
Height 88 mm
Width 440 mm
Depth 440 mm
Weight 16.8 kg
Bridging time full load 3 min
Suitable for network-management Yes
USV- technology Line-interactive
Construction type 482.6 mm (19 inch) device
Max. voltage distortion output (linear load) 3 %
Output power factor 0.8
Overall efficiency 82 %
Efficiency in eco-mode 98 %
Potential free switch contact Yes
Auto shut down function Yes
Input connection C14
Number of output connections C13 8
Number of output connections C19 0
"ERROR:#N/A" 0
Number of output connections fixed connection 0
Degree of protection (IP) IP20
Operating / setting temperature 0-40 °C
Storage temperature 0-50 °C
Supply current 3-6 A
Sound level 50 dB
Terminal marking indication Yes
Type of load Not applicable
With socket outlet Yes
Contains Batteries and/or Accumulator Yes
IEC code (Pack1) VRLA
Battery ou Accumulator (Pack1) Accumulator (rechargeable)
Element Composition (Pack1) Lead-acid
Number of Pack 1 1
Number of Single Element (Pack1) 3
Pack1 Location Product includes a battery
Regulation Type (Pack1) P : Portable (Standard format)
