Popis produktu:

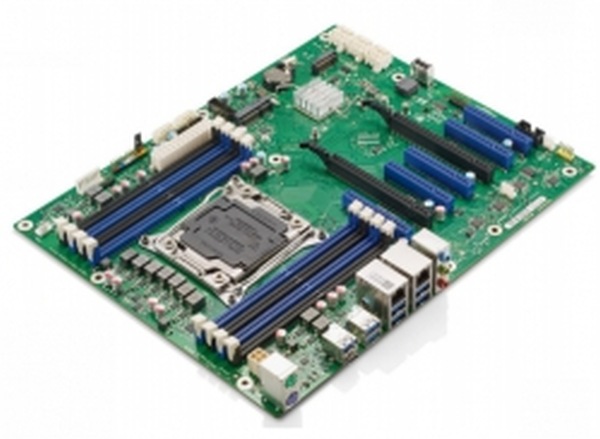

The FUJITSU Extended Lifecycle Mainboard D3598-B is the right choice for any demanding applications and needs. Featured by Intel® C422 Chipset, the D3598-B supports the Intel® Xeon®processors based on LGA2066. The perfect fit for any workstation and high performance computing will be realized with 7 PCIe connectors, Dual Intel®GbE LAN, Mini-PCIe and M.2 onboard capability as well as M.2 Riser to support two additional M.2 in RAID mode. The D3598-B fulfill the level of semi-industrial needs with 24/7 continous operation up to 50°C ambient temperature under heavy load (100%) and prolonged lifecycle for min. 3 years.

Specification
Industrial Series
Designed for 24/7 continuous operation

Processor socket:
LGA 2066, maximum 140W TDP
Intel® Xeon® Processor Skylake-W
Intel® Omnia-Path Architecture 14nm generation
Chipset: Intel® C422 Workstation (Basin Falls)
Memory socket:
8 x sockets for DDR4, max. 512 GB, Single / Dual / Triple / Quad Channel,
2666 MHz (1DPC) / 2133, 2400, 2666 MHz (2DPC), single- / dual- / quad-rank RDIMM and LRDIMM. Supports ECC RDIMM and LRDIMM as well as non-ECC RDIMM and LRDIMM, 1.2 V/ 2.5 V, 288 pin, ECC.
Up to 512 GB
Effective memory speed depends on installed processor

Audio: Realtek ALC671, 5.1 Multichannel HD Audio Codec
LAN: Intel i219LM & i210 with 10/100/1000 Mbit/s, iAMT / vPro
Wake-on-LAN (WoL) by interesting Packets, Link Status Change and
Magic Packet™, PXE Support, BIOS MAC Address Display, Teaming Support

Expansions slot:
2 x PCIe x16 (16 Lanes, Gen3)
1 x PCIe x8 (8 Lane, Gen3)
2 x PCIe x8 (4 Lane, Gen3)
2 x PCIe x8 (1 Lane, Gen3)

Storage:
8 x SATA 6Gb/s (RAID)
1 x M.2 SSD, socket 2260 and 2280 (PCIe x4, MVMe)
1 x Mini PCIe, full size, half size (incl. USB)

Internal I/O:
2 x USB 2.0
4 x USB 3.1 (Gen 1)
1 x USB 2.0 stick
1 x USB 2.0 vie Mini PCIe socket
1 x Serial (RS232), FIFO, 16550 compatible
5 x Fan (PSU, CPU, AUX1, AUX2, AUX3)
1 x Intrusion (Case open)
1x Frontpanel HD Audio (9-Pin)
1 x Power 24 pin (BTX), 8 pin (additional 12 V supply)

External I/O:
6 x USB 3.1 (Gen 1)
1 x USB 3.1 (Gen 2, Type A)
1 x USB 3.1 (Gen 2, Type C)
3 x Audio (Mic-in, Line-in, Line-out)
2 x GigaLAN (RJ45)
2 x PS/2

Power specification:
24 Pin Power Connector + 8 Pin (12V ) Power Connector required
Support for Soft-Off Power Supplies; 12V and 3.3V Supply Voltage on PCIe Slots
3.3V Auxiliary Supply Voltage on PCIe Slots (Wake-Up Function)
On board CPU Voltage Regulator, 5V / 2A Auxiliary Power
required for USB Wake-Up from Save-to-RAM, Save-to-Disk
BIOS:
AMI Aptio 5.x (UEFI) BIOS
modified and adapted by Fujitsu Technology Solutions; Recovery BIOS, SM-BIOS (DMI), BIOS and CPU Microcode Update, Quick Boot, Logo Boot, Quiet Boot, Plug & Play, Automatic DRAM and PCIe Configuration, BIOS Support for S.M.A.R.T., Advanced Power Management, ACPI S3/S4, Wake on time from S5.
Boot support for M.2 Carrier Board D3352-A (PCIe-based SSD modules, AHCI/NVME).BIOS integrated HW Diagnostic Tool
Security features:
Recovery BIOS, System and BIOS Password, Boot Sequence Control,
Serial/USB- Port Access Protection, Boot Sector Virus Warning,
Write Protection for Flash BIOS, EraseDisk (optional BIOS Feature),
Infineon Trusted Platform Module (TPM) V2.0-SLB9665.

Package content
Mainboard
I/O Shield
Driver DVD

Package
• White Box
