Popis produktu:

BENEFITS
– Industry-leading switch platform in performance,
power, and density
– Designed for energy and cost savings
– Quick and easy setup and management
– Maximizes performance by removing fabric
congestions
– Backward compatible to FDR technology
KEY FEATURES
Performance
– 36 X EDR 100Gb/s ports in a 1U switch
– 7Tb/s aggregate switch throughput
– 90ns switch latency
– 136W typical power consumption
Optimized Design
– 1+1 redundant & hot-swappable power
– N+1 redundant & hot-swappable fans
– 80 gold+ and energy star certified power supplies
– Dual-core x86 CPU
Advanced Design
– Compliant with IBTA 1.2.1 and 1.3
– InfiniBand Router*

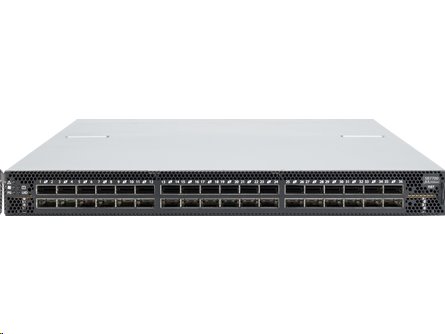

MELLANOX SB7700
– 19’’ rack mountable 1U chassis
– 36 QSFP28 non-blocking ports with aggregate
data throughput up to 7 Tb/s (EDR)
SWITCH SPECIFICATIONS
– Compliant with IBTA 1.21 and 1.3
– 9 virtual lanes: 8 data + 1 management
– 256 to 4Kbyte MTU
– Adaptive Routing
– IB Router*
– 4X48K entry linear forwarding database
MANAGEMENT PORTS
– Dual 100/1000 Ethernet ports
– RS232 port over DB9
– USB port
– DHCP
– Familiar Industry Standard CLI
– Management over IPv6
– Management IP
– SNMP v1,v2,v3
– Web UI
FABRIC MANAGEMENT
– On-board Subnet Manager supporting fabrics
of up to 2k nodes
– Unified Fabric Manager™ (UFM™) Agent
CONNECTORS AND CABLING
– QSFP28 connectors
– Passive copper or active fiber cables
– Optical modules
INDICATORS
– Per port status LED Link, Activity
– System status LEDs: System, fans, power
supplies
– Port Error LED
– Unit ID LED*
PHYSICAL CHARACTERISTICS
– Dimensions: 1.7’’ (43.6 mm) H x 16.85’’
(428mm) W x 27’’ (685.8mm) D
– Weight: 11kg (24.2 Lb)
POWER SUPPLY
– Dual redundant slots
– Hot plug operation
– Input range: 100 - 127 VAC, 200-240VAC
– Frequency: 50-60Hz, single phase AC, 4.5A,
2.9A
COOLING
– Front-to-rear or rear-to-front cooling option
– Hot-swappable fan unit
POWER CONSUMPTION
– ATIS Weighted Power Consumption: 136W
– Max Power Consumption (class 4) : 281W
