Popis produktu:

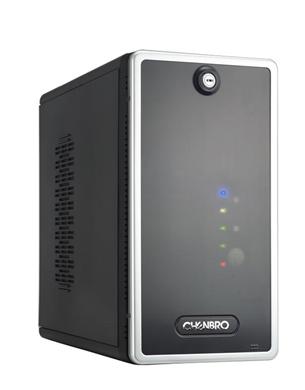

SKU3:ES34069, BK, w/SATAII BP, 180W PSU, 2x70mm Fans ES34069-4T180
 ?1x 180W 19V Power Adpater w/Power cord
 ?2x 2-Port SATAII&SAS Backplanes
 ?4x SATAII Cables
 ?1x 4-in-1 Card Reader
 ?1x Slim ODD adpater
 ?1x 2-Port USB Cable
 ?1x Single Packaging Carton w/Chenbro logo
pecificationOrder Code

ES34069T-180C4

Description

4 Hot-Swap HDDs Server Chassis

M/B Form Factor

Mini-ITX

Processor

Intel / AMD UP Quad

Support Backplane

SATA II/SAS

Security

Kensington Lock Supported

Chassis Dimension
D x W x H (mm) 260 x 140 x 260 (mm)
D x W x H (inch) 10.24" x 5.51" x 10.24"


Power Supply
Form Factor AC-DC Adapter
Watt 180W


Drive Bay
Hot-Swap 3.5" 4
Internal 2.5" 1
Slim ODD 1
Card Reader 1

Generality
Metal Material SECC
Metal Thickness 0.7 mm
Metal Material Type ABS-HB


System Cooling
Rear 2 x 70 mm Ball Bearing Fans


Rear Window

w/o PCI slot

Slide Rail

N/A

Front Panel
Front Control Power On/Off
System Reset
Indicator Power LED
HDD Activity LED
LAN Activity LEDx 2
Warning LEDx1
Ports 2x USB 2.0
1x Card Reader


Shipping Information*
Net Weight
(Chassis Only) 4.2 Kg
Gross Weight (w/Packing) 5.6 Kg
Cubit Feet 1.5
Container Information
20' 672 (Single Packing)
40' 1344 (Single Packing)
40'H 1512 (Sinlge Packing)




* Actual weight varies by configuration and manufacturing process.
* The specification and pictures are subject to change without notice.

Package ContainPart Category Qty. Description
Backplane 2 2-Port SAS/SATAII
Fans 2 70mm, Two Ball Bearing, 3P3C, L200mm
Cables 2 SATAII, 260mm
2 SATAII, 360mm
1 Europe Power Cord
1 Intrusion Swtich, 300mm
Power Supply 1 AC-DC Adapter, 180W
PCB 1 4-in-1 Card Reader
1 Slim ODD Adapter, SATA

Optional Accessory
Riser CardProduct Part. No# Description
80H094340-001 Riser Card,32-bit PCI
