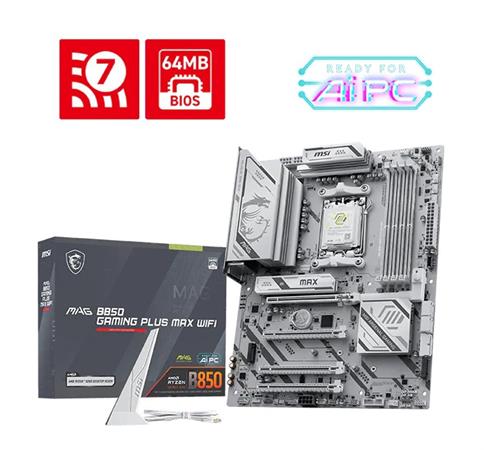

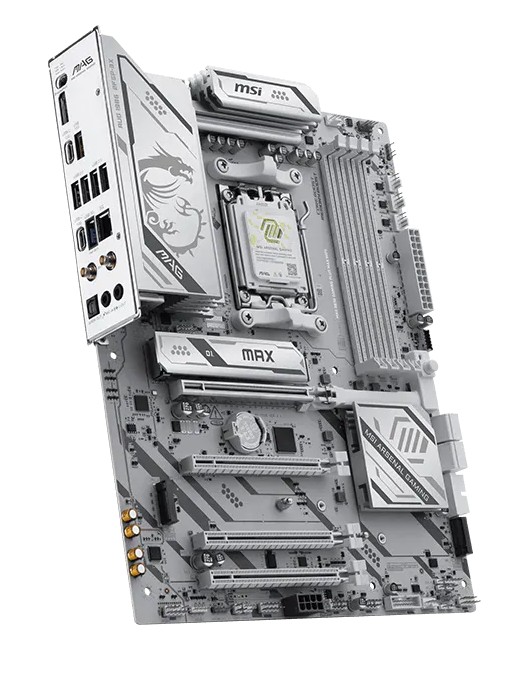

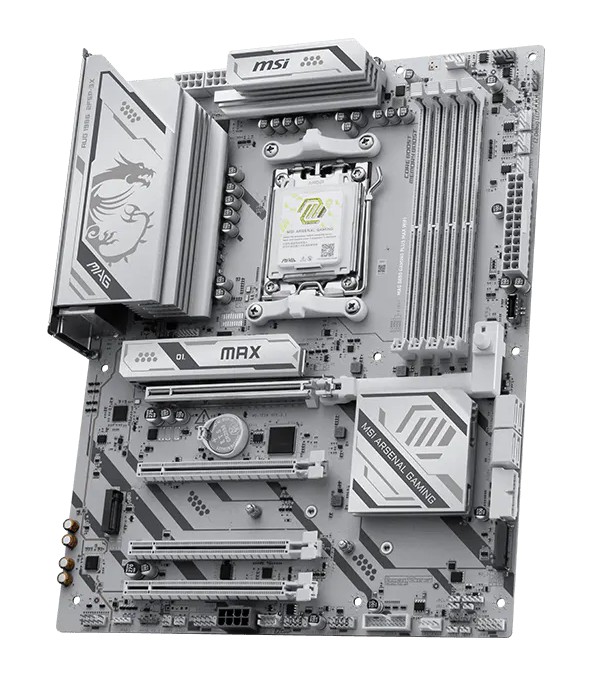

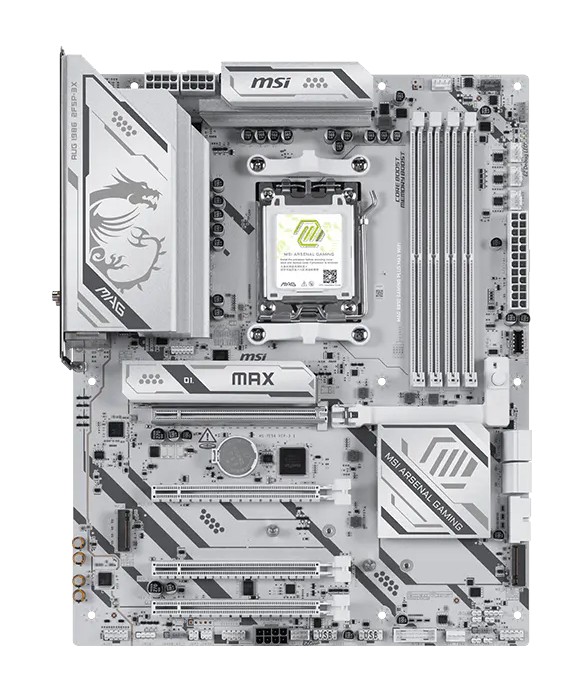

MSI MAG B850 GAMING PLUS MAX WIFI Chipset: AMD B850 Rozměrový formát: ATX 243.84mmx304.8mm Podpora pro procesory: AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors Patice procesoru: AM5 Paměť:  *4x DDR5 UDIMM, Maximum Memory Capacity 256GB *Memory Support DDR5 8200 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s *Ryzen™ 9000 Series Processors max. overclocking frequency: *1DPC 1R Max speed up to 8200+ MT/s *1DPC 2R Max speed up to 6400+ MT/s *2DPC 1R Max speed up to 6400+ MT/s *2DPC 2R Max speed up to 6000+ MT/s *Supports AMD POR Speed and JEDEC Speed *Supports Memory Overclocking and AMD EXPOTM *Supports Dual-Channel mode *Supports Non-ECC, Un-buffered memory Grafické porty:  1x DisplayPort *Support DisplayPort 1.2 with HBR2, maximum resolution of 4K 60Hz Zvuková karta:  *Realtek® ALC897 *7.1-Channel High Definition Audio Ethernet: Realtek® 8126 5G LAN WLAN + Bluetooth: Wi-Fi 7 Solution *The Wireless module is pre-installed in the M.2 (Key-E) slot *Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (160MHz) up to 2.9Gbps *Supports 802.11 a/ b/ g/ n/ ac/ ax/ be *Supports Bluetooth® 5.4**, MLO, 4KQAM Rozšiřující sloty:  4x PCI-E x16 slot *PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) *PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset) *PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset) *PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset) PCI_E1 slot *Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors) *Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors) *Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor) RAID řadič: RAID 0, RAID 1 Úložný prostor:  3x M.2 *M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices *M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices *M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices 4x SATA 6G M2_1 slot *Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) *Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M2_2 slot *Supports up to PCIe 4.0 x4 (For Ryzen™ 9000/ 7000 Series processors) *Supports up to PCIe 3.0 x4 (For Ryzen™ 8500/ 8300 Series processors) USB:  Zadní USB *4x USB 2.0 *1x USB 5Gbps Type A *1x USB 10Gbps Type A *2x USB 10Gbps Type C Přední USB *4x USB 2.0 *4x USB 5Gbps Type A *1x USB 10Gbps Type C Interní porty:  Napájení *1× Power Connector (ATX_PWR) *2× Power Connector (CPU_PWR) *1× Power Connector (PCIE_PWR 8pin) *1× CPU Fan *1× Combo Fan (Pump_Sys Fan) *4× System Fan USB *4× USB 2.0 ports *4× USB 5Gbps Type-A ports *1× USB 10Gbps Type-C port Ostatní *1× EZ Conn-header (JAF_1) *2× Front Panel (JFP) *1× Chassis Intrusion (JCI) *1× Front Audio (JAUD) *1× COM Port (JCOM) *1× Tuning Controller connector (JDASH) *3× Addressable V2 RGB LED connectors (JARGB_V2) *1× RGB LED connector (JRGB) *1× TPM pin header (TPM 2.0) Porty na zadním panelu:  *Clear CMOS Button *USB 10Gbps (Type-A) *USB 2.0 *5G LAN *Wi-Fi / Bluetooth *Audio connectors *Flash BIOS Button *DisplayPort *USB 10Gbps (Type-C) *USB 10Gbps (Type-C) *USB 5Gbps (Type-A) *S/PDIF-OUT OS: Windows 11 64-bit
