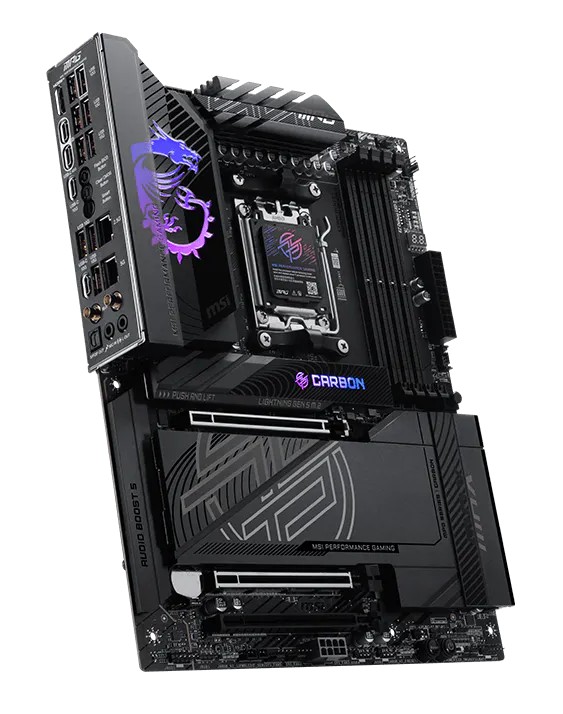

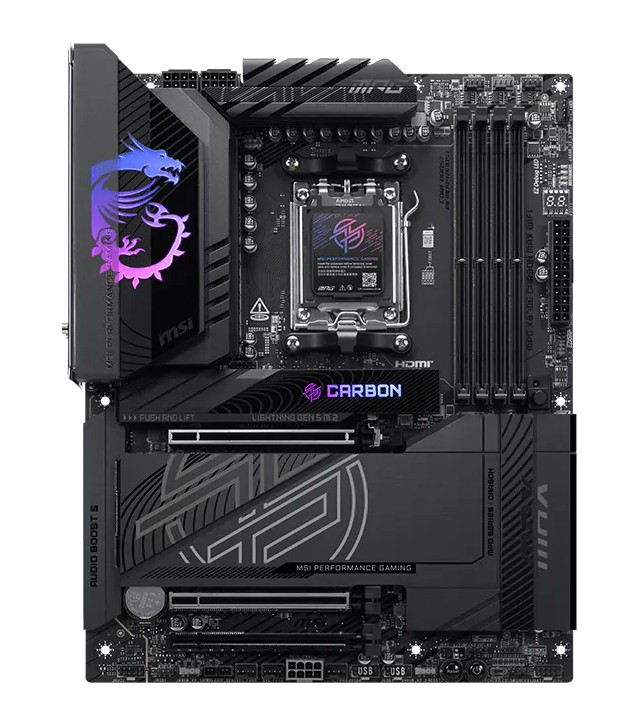

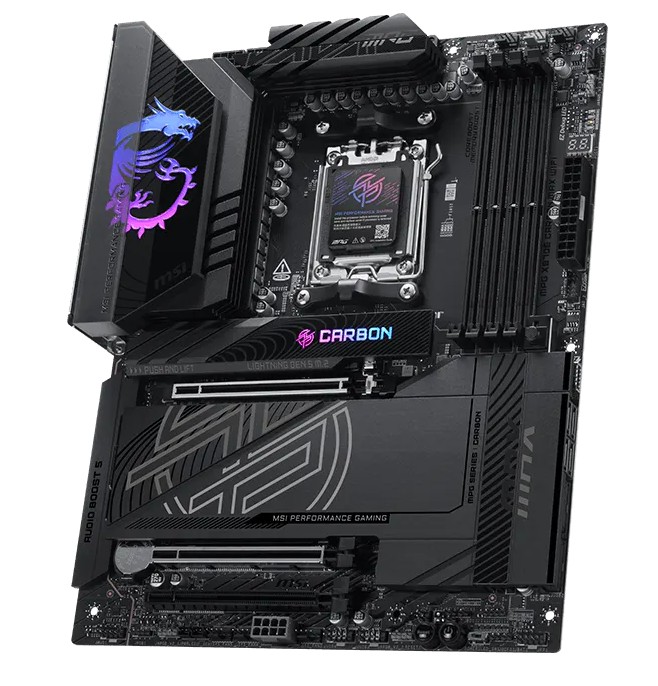

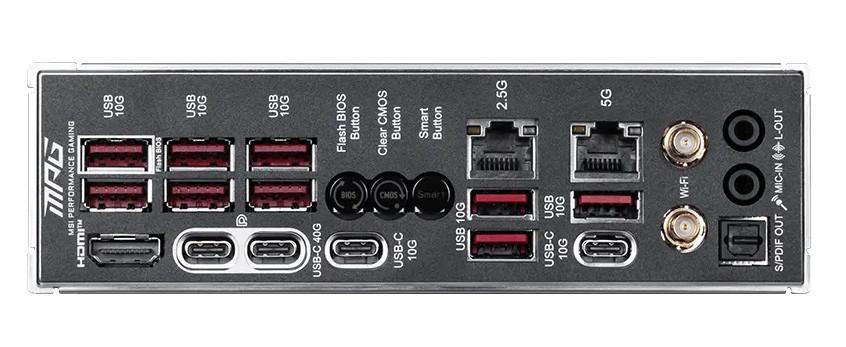

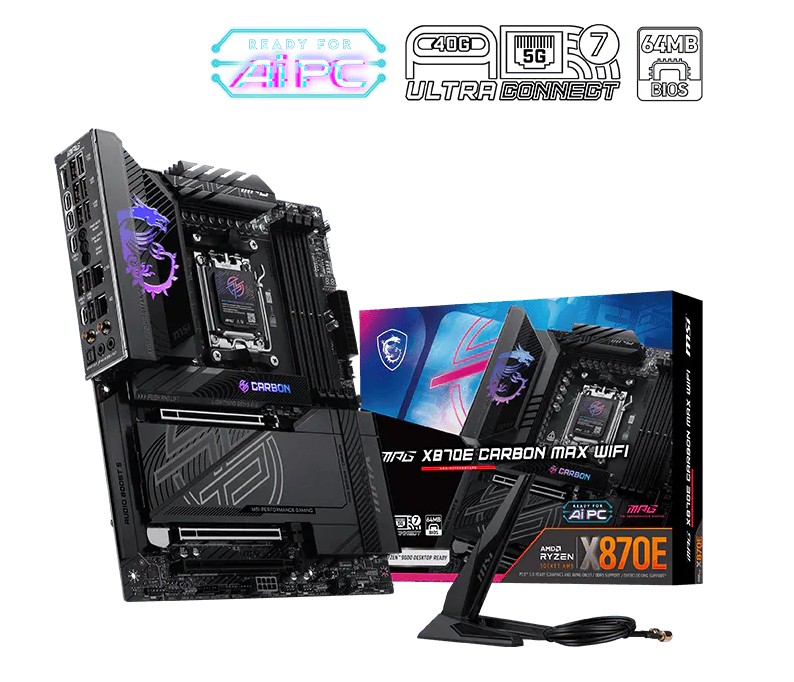

MSI MPG X870E CARBON MAX WIFI Chipset:  AMD X870E Rozměrový formát: ATX 243.84mmx304.8mm  Podpora pro procesory:  AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors Patice procesoru: AM5 Paměť:  *4x DDR5 UDIMM, Maximum Memory Capacity 256GB *Memory Support DDR5 9000 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s *Ryzen™ 9000 Series Processors max. overclocking: *1DPC 1R Max speed up to 8400+ MT/s *1DPC 2R Max speed up to 6400+ MT/s *2DPC 1R Max speed up to 6400+ MT/s *2DPC 2R Max speed up to 6400+ MT/s *Supports AMD POR Speed and JEDEC Speed *Supports Memory Overclocking and AMD EXPOTM *Supports Dual-Channel mode *Supports Non-ECC, Un-buffered memory Grafické porty:  1x HDMI *Support HDMITM 2.1 with FRL port, maximum resolution of 8K 60Hz* 2x Type-C DisplayPort *USB4® port, supporting DisplayPort 1.4 with HBR3 over USB Type-C, maximum resolution of 4K@60Hz Zvuková karta:  *Realtek® ALC4080 Codec *7.1-Channel USB High-Performance Audio *Supports up to 32-Bit/384 kHz playback on front panel *Supports S/PDIF output Ethernet:  *1x Realtek® 8126 5G LAN *1x Realtek® 8125 2.5G LAN WLAN + Bluetooth: Wi-Fi 7 Solution *The Wireless module is pre-installed in the M.2 (Key-E) slot *Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps *Supports 802.11 a/ b/ g/ n/ ac/ ax/ be *Supports Bluetooth® 5.4**, MLO, 4KQAM Rozšiřující sloty: 3x PCI-E x16 slot *PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU) *PCI_E2 Gen PCIe 5.0 supports up to x8 (From CPU) *PCI_E3 Gen PCIe 4.0 supports up to x4 PCI_E1 & PCI_E2 slots *Supports PCIe 5.0 x16/x0 or x8/x8 (For Ryzen™ 9000/ 7000 Series processors) *Supports PCIe 4.0 x8/x0 (For Ryzen™ 8700/ 8600/ 8400 Series processors) *Supports PCIe 4.0 x4/x0 (For Ryzen™ 8500/ 8300 Series processor) PCI_E3 slot *Supports up to PCIe 4.0 x4 RAID řadič: RAID 0, RAID 1, RAID 5, RAID 10 Úložný prostor: 4x M.2 (Qty) *M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices *M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices *M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices *M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices 4x SATA 6G (Qty) M.2_1 slot *Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) *Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors) M.2_2*/** slot *Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors) *The M2_2 slot will be unavailable when using Ryzen™ 8000 Series processors M.2_3 slot *Supports up to PCIe 4.0 x4 M.2_4 slot *Supports up to PCIe 4.0 x4 USB:  Zadní USB *9x USB 10Gbps Type A *2x USB 10Gbps Type C *2x USB 40Gbps Type C Přední USB *4x USB 2.0 *4x USB 5Gbps Type A *1x USB 20Gbps Type C Interní porty:  Napájení *1× Power Connector (ATX_PWR) *2× Power Connector (CPU_PWR) *1× Power Connector (PCIE_PWR 8pin) *1× CPU Fan *1× Combo Fan (Pump_Sys Fan) *5× System Fan USB *4× USB 2.0 ports *4× USB 5Gbps Type-A ports *1× USB 20Gbps Type-C port Ostatní *1× EZ Conn-header (JAF_2) *2× Front Panel (JFP) *1× Chassis Intrusion (JCI) *1× Front Audio (JAUD) *1× Thermal Sensor connector (T_SEN) *3× Addressable V2 RGB LED connectors (JARGB_V2) *1× RGB LED connector (JRGB) *1× TPM pin header (TPM 2.0) Porty na zadním panelu:  *USB 10Gbps Type-A *Flash BIOS Button *Clear CMOS Button *Smart Button *2.5G LAN *5G LAN *Audio Connectors *HDMI™ *USB 40Gbps Type-C *USB 10Gbps Type-C *USB 10Gbps Type-A *USB 10Gbps Type-C *Wi-Fi / Bluetooth *Optical S/PDIF Out OS: Windows 11 64-bit
